KTPS24 Series

Catalog

AC/DC WALL MOUNT ADAPTER 48V 24W

Part	Polarization	Approval Agency	Input Connector	Applications	Current - Output (Max) [Max]	Cord Length	Cord Length	Efficiency	Voltage - Output	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Form	Output Connector [diameter]	Output Connector	Output Connector [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Region Utilized	Operating Temperature [Max]	Power (Watts)	Weight	Weight	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Output Connector [x]	Cord Length	Standard Number	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]
Volgen + Furuno KTPS24-48005WA-VI-P1R	Positive Center	cUL PSE UL	NEMA 1-15P	ITE (Commercial)	500 mA	1.5 m	59 in	Level VI	48 V	Fixed Blade	100 VAC	240 VAC	Wall Mount	2.5 mm 5.5 mm	Barrel Plug R/A	9.5 mm	34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	North America	40 °C	24 W

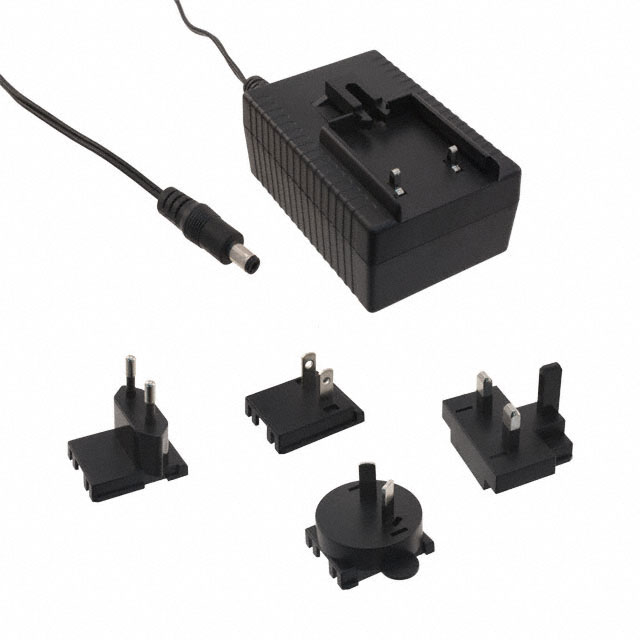

Volgen + Furuno KTPS24-12020MP	Positive Center	IEC	Multi-Blade	ITE (Commercial)	2 A	39.4 in		Level V	12 V	Multi-Blade (Included)	100 VAC	240 VAC	Wall Mount	2.1 mm 5.5 mm	Barrel Plug			51.8 mm	40.5 mm			77.5 mm	International	40 °C	24 W	0.348 lb	157.85 g	3.05 in	1.59 in	2.04 in	9.5 mm	1 m	60950-1

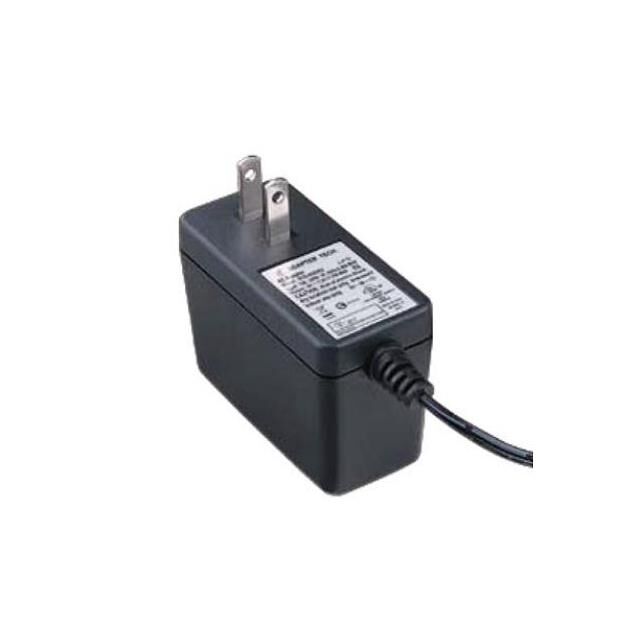

Volgen + Furuno KTPS24-05040WA-VI-P1R	Positive Center	cUL PSE UL	NEMA 1-15P	ITE (Commercial)	4 A	1.5 m	59 in	Level VI	5 V	Fixed Blade	100 VAC	240 VAC	Wall Mount	2.5 mm 5.5 mm	Barrel Plug R/A	9.5 mm	34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	North America	40 °C	20 W
Volgen + Furuno KTPS24-07030WA-VI-P2	Positive Center	cUL PSE UL	NEMA 1-15P	ITE (Commercial)	3 A	1.5 m	59 in	Level VI	7 V	Fixed Blade	100 VAC	240 VAC	Wall Mount	2.5 mm 5.5 mm	Barrel Plug		34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	North America	40 °C	21 W						9.5 mm
Volgen + Furuno KTPS24-06040WA-VI-P2	Positive Center	cUL PSE UL	NEMA 1-15P	ITE (Commercial)	4 A	1.5 m	59 in	Level VI	5.9 V	Fixed Blade	100 VAC	240 VAC	Wall Mount	2.5 mm 5.5 mm	Barrel Plug		34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	North America	40 °C	24 W						9.5 mm
Volgen + Furuno KTPS24-07030WA-VI-P1	Positive Center	cUL PSE UL	NEMA 1-15P	ITE (Commercial)	3 A	1.5 m	59 in	Level VI	7 V	Fixed Blade	100 VAC	240 VAC	Wall Mount	2.1 mm 5.5 mm	Barrel Plug		34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	North America	40 °C	21 W						9.5 mm

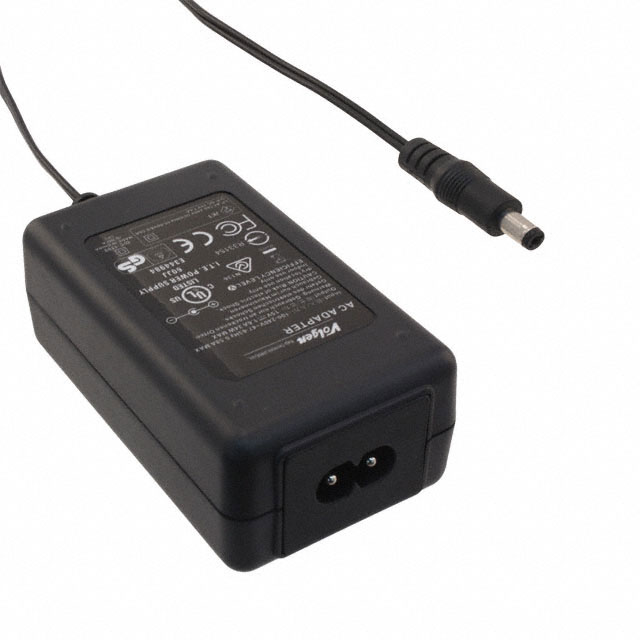

Volgen + Furuno KTPS24-07530DT-2P-VI-P1	Positive Center	CB CE cUL GS PSE UL	IEC 320-C8	ITE (Commercial)	3 A	1.5 m	59 in	Level VI	7.5 V	Cord (Sold Separately)	100 VAC	240 VAC	Desktop (Class II)	2.1 mm 5.5 mm	Barrel Plug			50 mm	34 mm			88 mm	International	40 °C	23 Watts			3.46 "	1.34 "	1.97 in	9.5 mm
Volgen + Furuno KTPS24-05040WA-VI-P1	Positive Center	IEC	NEMA 1-15P	ITE (Commercial)	4 A	1.5 m	59 in	Level VI	5 V	Fixed Blade	100 VAC	240 VAC	Wall Mount	2.1 mm 5.5 mm	Barrel Plug		34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	North America	40 °C	24 W						9.5 mm		60950-1
Volgen + Furuno KTPS24-15016WA-VI-P1	Positive Center	cUL PSE UL	NEMA 1-15P	ITE (Commercial)	1.6 A	1.5 m	59 in	Level VI	15 V	Fixed Blade	100 VAC	240 VAC	Wall Mount	2.1 mm 5.5 mm	Barrel Plug		34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	North America	40 °C	24 W						9.5 mm
Volgen + Furuno KTPS24-24010WA-VI-P1R	Positive Center	IEC	NEMA 1-15P	ITE (Commercial)	1 A	1.5 m	59 in	Level VI	24 V	Fixed Blade	100 VAC	240 VAC	Wall Mount		Barrel Plug R/A		34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	North America	40 °C	24 W								60950-1	9.5 mm	5.5 mm	2.1 mm
