AC/DC Power Modules 3W 85-305Vin 24Vout 130mA
AC/DC Power Modules 3W 85-305Vin 24Vout 130mA
AC/DC Power Modules 3W 85-305Vin 24Vout 130mA
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Weight | Weight | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Load Regulation | Number of Outputs | Mounting Type | Approval Agency | Applications | Type | Current - Output (Max) [Max] | Power (Watts) | Line Regulation | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Package / Case | Minimum Load Required | Current - Output 1 | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Features | Current - Output (Max) | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

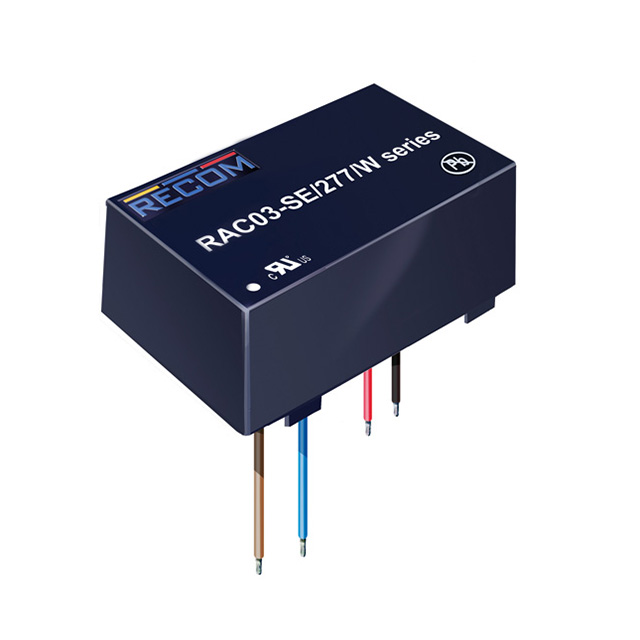

![]() RECOM Power | 85 °C | -40 °C | 12 V | 0.044 lb | 19.96 g | 85 VAC | 305 VAC | 78 % | 0.5 % | 1 | Through Hole | CE cURus | ITE (Commercial) | Enclosed | 250 mA | 3 W | 0.5 % | 0.59 in | 15 mm | 37 mm | 1.46 in | 24 mm | 0.94 in | 16-DIP Module 5 Leads | |||||||||
![]() RECOM Power | 85 °C | -40 °C | 12 V | 85 VAC | 305 VAC | 78 % | 1 | Chassis Mount | CE cURus | Household Appliances ITE (Commercial) | Enclosed | 3 W | 0.69 " | 38.1 mm | 1.5 in | 0.96 in | 250 mA | 3000 V | 24.3 mm | 17.4 mm | DC Input Capable Universal Input | ||||||||||||
![]() RECOM Power | 85 °C | -40 °C | 9 V | 85 VAC | 305 VAC | 77 % | 0.5 % | 1 | Through Hole | CE cURus | ITE (Commercial) | Enclosed | 3 W | 0.5 % | 0.59 in | 15 mm | 37 mm | 1.46 in | 24 mm | 0.94 in | 16-DIP Module 5 Leads | 330 mA | |||||||||||

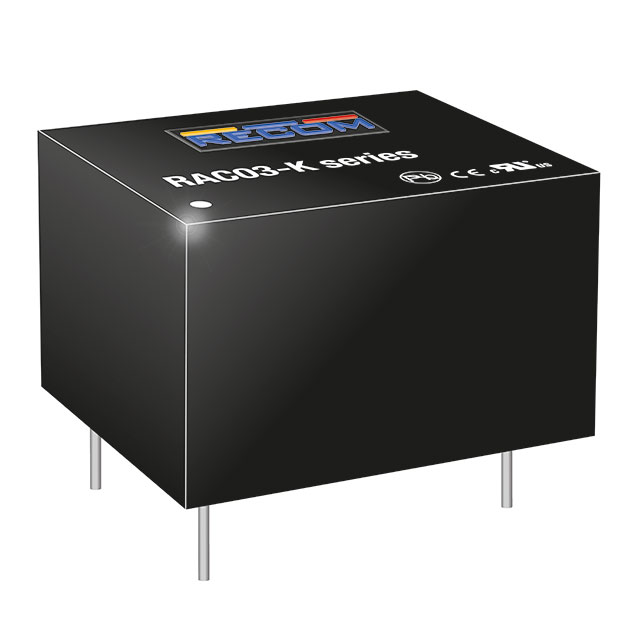

![]() RECOM Power | 80 ¯C | -40 °C | 12 V | 85 VAC 120 VDC | 264 VAC 370 VDC | 78 % | 2.5 % | 1 | Through Hole | CE cURus | Household Appliances ITE (Commercial) | Enclosed | 250 mA | 3 W | 2.5 % | 1.12 " | 23.5 mm | 4-DIP Module | 0.93 " | 0.7 in | Universal Input | 28.5 mm | 17.9 mm |
