0933-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

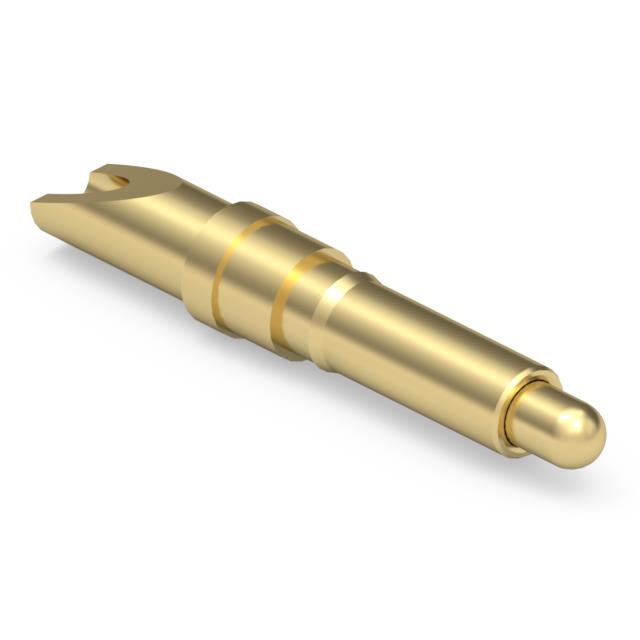

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Contact Material | Features | Maximum Working Height [Max] | Maximum Working Height | Recommended Working Height | Recommended Working Height | Current Rating (Amps) | Mounting Type | Operating Force - Mid Compression | Mating Cycles | Minimum Working Height [Min] | Minimum Working Height | Contact Type | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Finish | Operating Force - Initial | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.042 in | 1.07 mm | Brass Alloy | 24 AWG | 0.308 in | 7.83 mm | 0.281 in | 7.13 mm | 5.2 A | Solder Cup Through Hole | 60 gf | 1000000 | 0.253 in | 6.43 mm | Sleeve & Plunger (Pogo Pins) | 0.078 in | 1.98 mm | Gold | 10 gf | 20 µin | 0.51 µm |
