630-M09 Series
Manufacturer: EDAC Inc.
Beta
⌘K

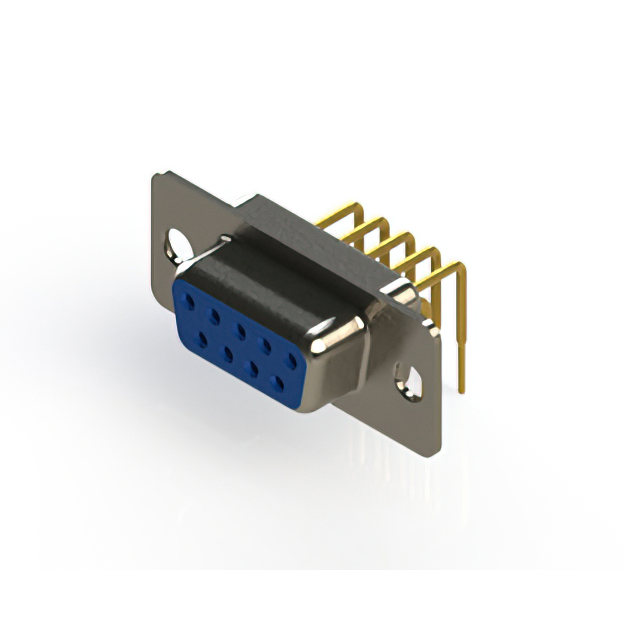

630M SERIES RIGHT ANGLE D-SUB
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Material Flammability Rating | Flange Feature | Shell Material, Finish | Number of Rows [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Features | Contact Finish Thickness | Mounting Type | Backset Spacing | Backset Spacing | Contact Finish | Current Rating (Amps) | Termination | Number of Positions | Connector Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

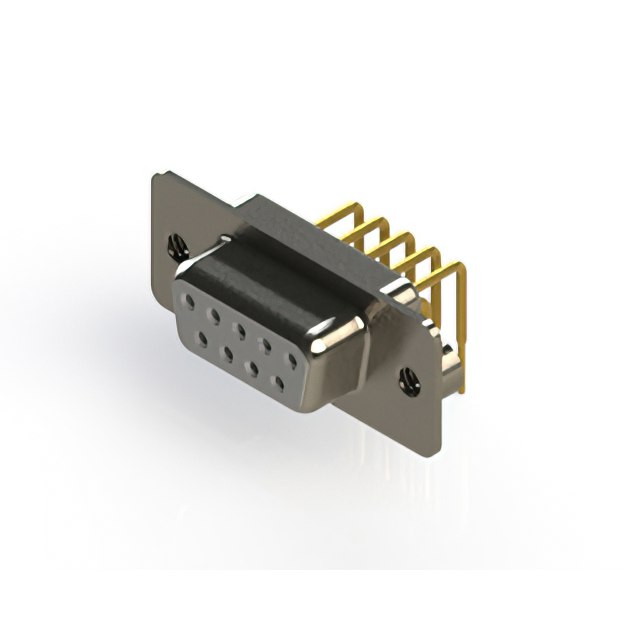

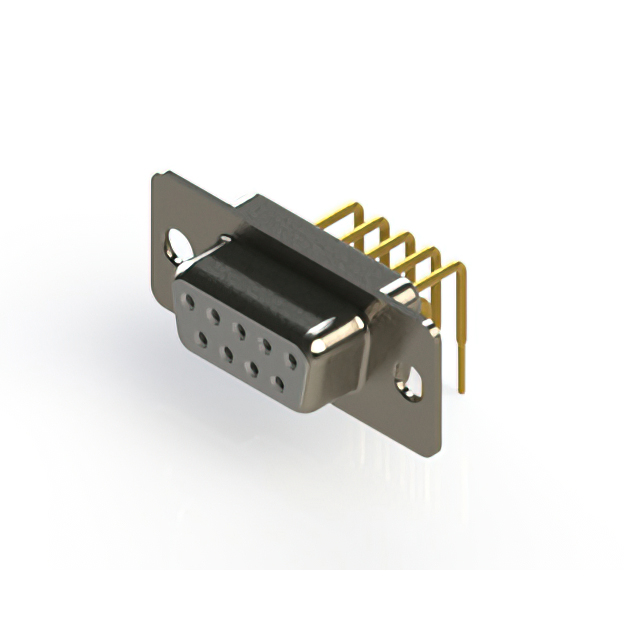

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | -55 C | 125 °C | White | UL94 V-0 | Housing/Shell (Unthreaded) | Nickel Plated Steel | 2 | 1 | DE E | D-Sub | Shielded | Flash | Right Angle Through Hole | 9.4 mm | 0.37 in | Gold | 5 A | Solder | 9 | Receptacle Female Sockets | Signal | |||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | -55 C | 125 °C | Blue | UL94 V-0 | Housing/Shell (Unthreaded) | Nickel Plated Steel | 2 | 1 | DE E | D-Sub | Shielded | Flash | Right Angle Through Hole | 9.4 mm | 0.37 in | Gold | 5 A | Solder | 9 | Receptacle Female Sockets | Signal | |||

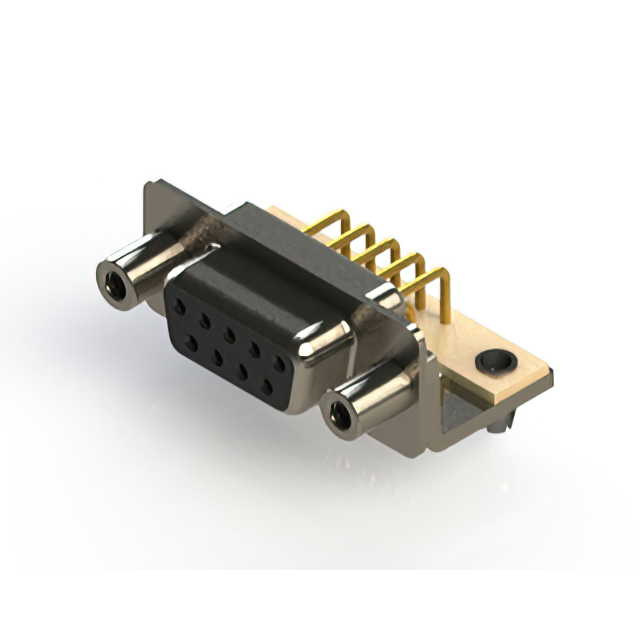

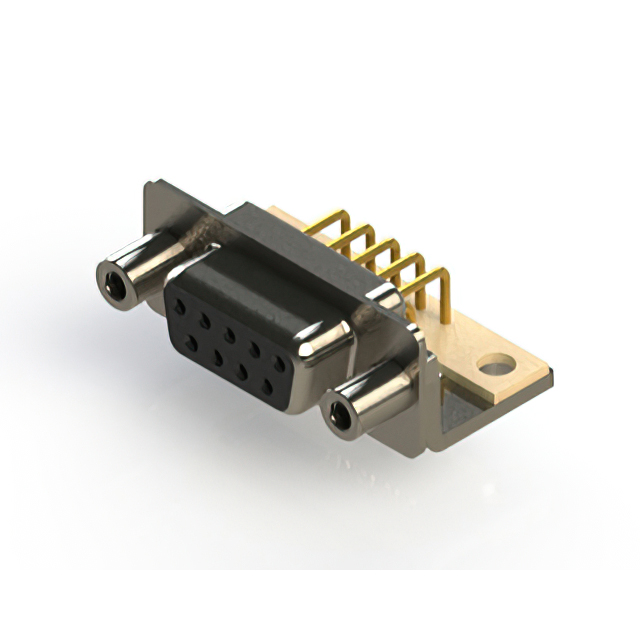

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | -55 C | 125 °C | Black | UL94 V-0 | 4-40 | Nickel Plated Steel | 2 | 1 | DE E | D-Sub | Mounting Brackets Shielded | Right Angle Through Hole | 9.4 mm | 0.37 in | Gold | 5 A | Solder | 9 | Receptacle Female Sockets | Signal | 0.38 µm | 15 µin | ||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | -55 C | 125 °C | Black | UL94 V-0 | 4-40 | Nickel Plated Steel | 2 | 1 | DE E | D-Sub | Mounting Brackets Shielded | Right Angle Through Hole | 9.4 mm | 0.37 in | Gold | 5 A | Solder | 9 | Receptacle Female Sockets | Signal | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | -55 C | 125 °C | White | UL94 V-0 | Housing/Shell (Unthreaded) | 2 | 1 | DE E | D-Sub | Shielded | Right Angle Through Hole | 9.4 mm | 0.37 in | Gold | 5 A | Solder | 9 | Receptacle Female Sockets | Signal | 0.38 µm | 15 µin | |||

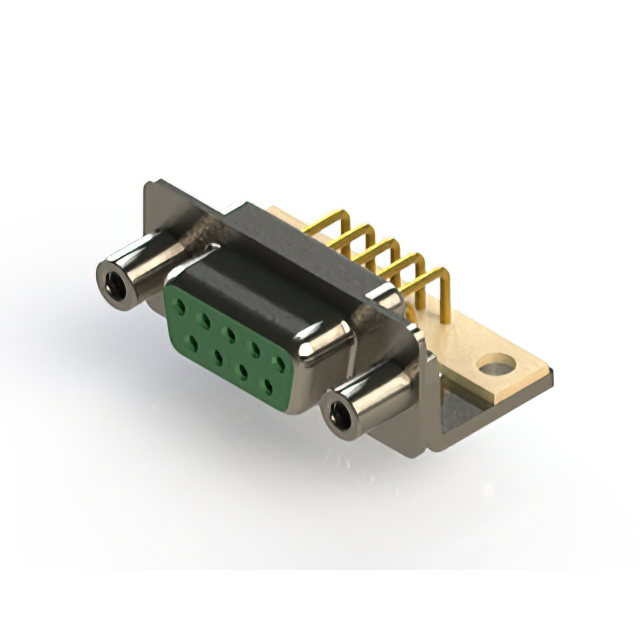

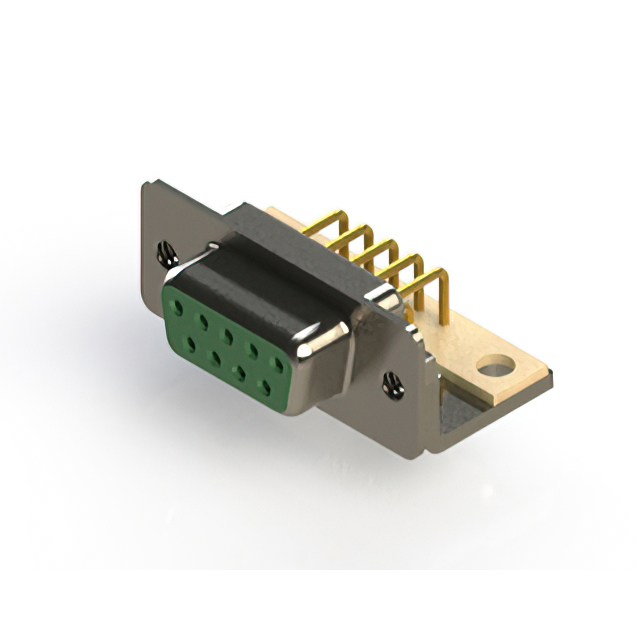

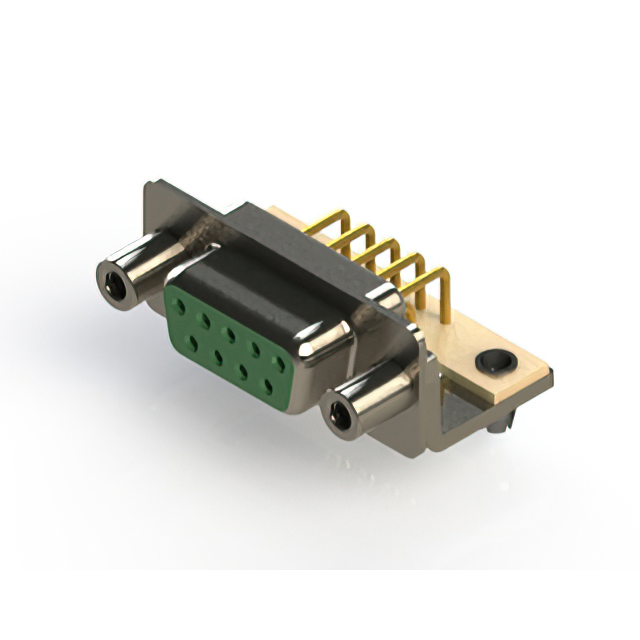

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | -55 C | 125 °C | Green | UL94 V-0 | Housing/Shell | Nickel Plated Steel | 2 | 1 | DE E | D-Sub | Mounting Brackets Shielded | Flash | Right Angle Through Hole | 9.4 mm | 0.37 in | Gold | 5 A | Solder | 9 | Receptacle Female Sockets | Signal | 4-40 | ||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | -55 C | 125 °C | Green | UL94 V-0 | 4-40 | 2 | 1 | DE E | D-Sub | Mounting Brackets Shielded | Flash | Right Angle Through Hole | 9.4 mm | 0.37 in | Gold | 5 A | Solder | 9 | Receptacle Female Sockets | Signal | ||||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | -55 C | 125 °C | Green | UL94 V-0 | 4-40 | Nickel Plated Steel | 2 | 1 | DE E | D-Sub | Mounting Brackets Shielded | Flash | Right Angle Through Hole | 9.4 mm | 0.37 in | Gold | 5 A | Solder | 9 | Receptacle Female Sockets | Signal | |||

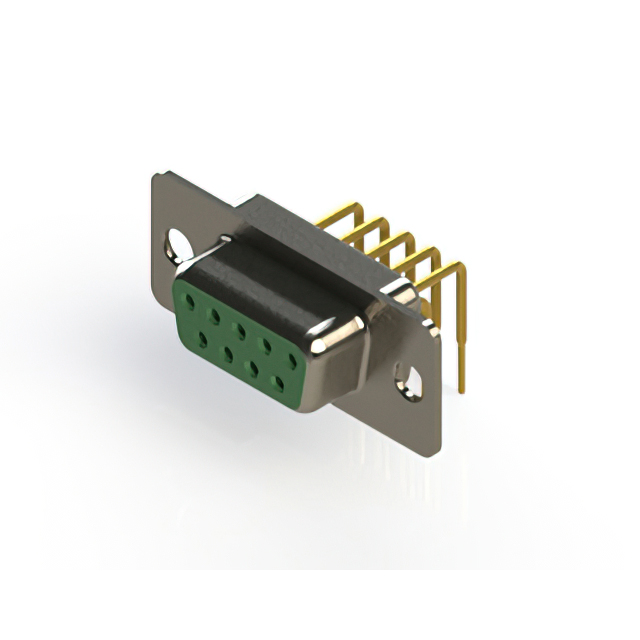

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | -55 C | 125 °C | Green | UL94 V-0 | Housing/Shell (Unthreaded) | Nickel Plated Steel | 2 | 1 | DE E | D-Sub | Shielded | Right Angle Through Hole | 9.4 mm | 0.37 in | Gold | 5 A | Solder | 9 | Receptacle Female Sockets | Signal | 0.38 µm | 15 µin | ||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | -55 C | 125 °C | Black | UL94 V-0 | 4-40 | Nickel Plated Steel | 2 | 1 | DE E | D-Sub | Mounting Brackets Shielded | Flash | Right Angle Through Hole | 9.4 mm | 0.37 in | Gold | 5 A | Solder | 9 | Receptacle Female Sockets | Signal |
