GEC02D Series

Catalog

CONN HEADER SMD 4POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Shape	Connector Type	Fastening Type	Contact Finish - Post	Style	Insulation Material	Insulation Color	Material Flammability Rating	Number of Positions	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Termination	Number of Positions Loaded

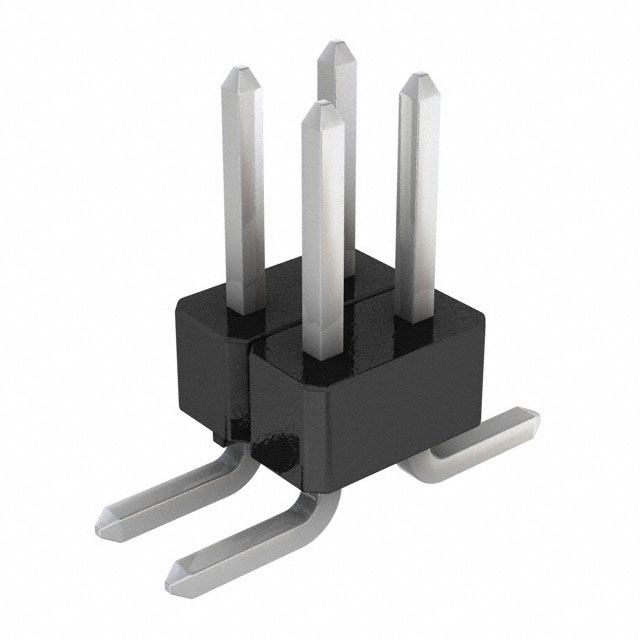

Sullins Connector Solutions GEC02DABN-M30	2.54 µm	100 µin	Male Pin	0.23 in	5.84 mm	Unshrouded	150 °C	-65 ░C	2	3 A	100 çin	2.54 çm	Phosphor Bronze	0.1 "	2.54 mm	Square	Header Breakaway	Push-Pull	Tin	Board to Board Cable	Nylon 9T Polyamide (PA9T)	Black	UL94 V-0	4	Surface Mount	0.1 in	2.54 mm	0.1 in	2.54 mm	Solder	All

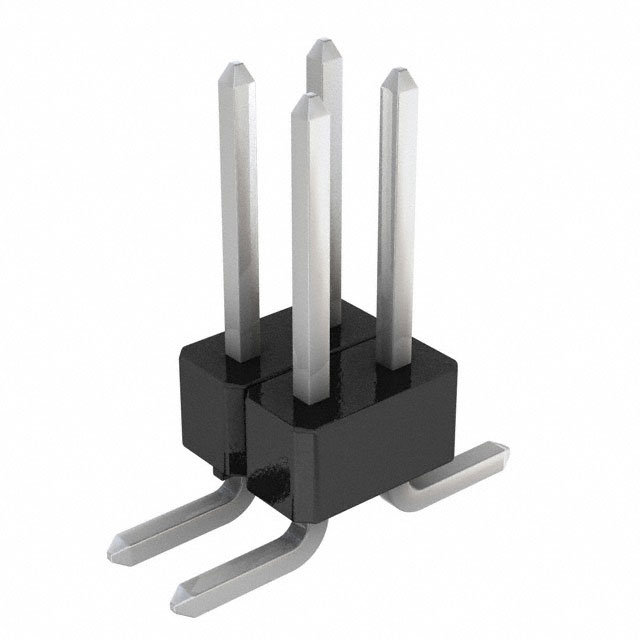

Sullins Connector Solutions GEC02DFBN-M30	2.54 µm	100 µin	Male Pin	0.318 in	8.08 mm	Unshrouded	150 °C	-65 ░C	2	3 A	100 çin	2.54 çm	Phosphor Bronze	0.1 "	2.54 mm	Square	Header Breakaway	Push-Pull	Tin	Board to Board Cable	Nylon 9T Polyamide (PA9T)	Black	UL94 V-0	4	Surface Mount	0.1 in	2.54 mm	0.1 in	2.54 mm	Solder	All
