002762 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 3POS 3.96MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Fastening Type	Number of Positions Loaded	Connector Type	Material Flammability Rating	Shrouding	Insulation Material	Contact Length - Mating	Contact Length - Mating	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Type	Pitch - Mating	Pitch - Mating	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Style	Contact Finish - Post	Mounting Type	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Shape	Contact Material	Number of Positions
Molex 0027624032	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	0.446 in	11.33 mm	Friction Lock	2	Header	UL94 V-0	Shrouded - 1 Wall	Polyester	11.43 mm	0.45 in	Natural	0.72 in	18.29 mm	Male Pin	3.96 mm	0.156 in	Board Guide	60 µin	1.52 Ám	Solder	Board to Board Cable	Tin	Through Hole	3.56 mm	0.14 in	1	Square	Brass
Molex 0027624087	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	0.446 in	11.33 mm	Friction Lock	7	Header	UL94 V-0	Shrouded - 1 Wall	Polyester	11.43 mm	0.45 in	Natural	0.72 in	18.29 mm	Male Pin	3.96 mm	0.156 in	Board Guide	60 µin	1.52 Ám	Solder	Board to Board Cable	Tin	Through Hole	3.56 mm	0.14 in	1	Square	Brass	8
Molex 0027624068	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	0.446 in	11.33 mm	Friction Lock	5	Header	UL94 V-0	Shrouded - 1 Wall	Polyester	11.43 mm	0.45 in	Natural	0.72 in	18.29 mm	Male Pin	3.96 mm	0.156 in	Board Guide	60 µin	1.52 Ám	Solder	Board to Board Cable	Tin	Through Hole	3.56 mm	0.14 in	1	Square	Brass	6
Molex 0027624059	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	0.446 in	11.33 mm	Friction Lock	4	Header	UL94 V-0	Shrouded - 1 Wall	Polyester Glass Filled	11.43 mm	0.45 in	Natural	0.72 in	18.29 mm	Male Pin	3.96 mm	0.156 in		60 µin	1.52 Ám	Solder	Board to Board Cable	Tin	Through Hole	3.56 mm	0.14 in	1	Square		5
Molex 0027624139	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	0.446 in	11.33 mm	Friction Lock	12	Header	UL94 V-0	Shrouded - 1 Wall	Polyester Glass Filled	11.43 mm	0.45 in	Natural	0.72 in	18.29 mm	Male Pin	3.96 mm	0.156 in		60 µin	1.52 Ám	Solder	Board to Board Cable	Tin	Through Hole	3.56 mm	0.14 in	1	Square		13
Molex 0027624049	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	0.446 in	11.33 mm	Friction Lock	3	Header	UL94 V-0	Shrouded - 1 Wall	Polyester Glass Filled	11.43 mm	0.45 in	Natural	0.72 in	18.29 mm	Male Pin	3.96 mm	0.156 in		60 µin	1.52 Ám	Solder	Board to Board Cable	Tin	Through Hole	3.56 mm	0.14 in	1	Square		4

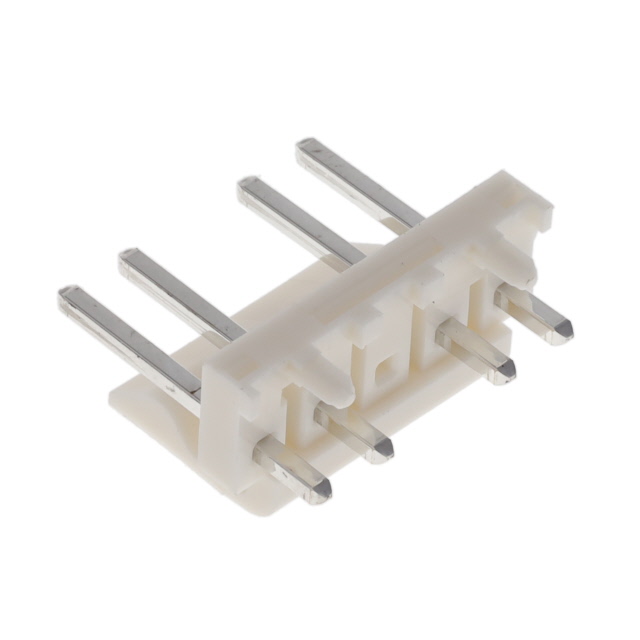

Molex 0027624052	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	0.446 in	11.33 mm	Friction Lock	4	Header	UL94 V-0	Shrouded - 1 Wall	Polyester	11.43 mm	0.45 in	Natural	0.72 in	18.29 mm	Male Pin	3.96 mm	0.156 in	Board Guide	60 µin	1.52 Ám	Solder	Board to Board Cable	Tin	Through Hole	3.56 mm	0.14 in	1	Square	Brass	5
Molex 0027624069	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	0.446 in	11.33 mm	Friction Lock	5	Header	UL94 V-0	Shrouded - 1 Wall	Polyester Glass Filled	11.43 mm	0.45 in	Natural	0.72 in	18.29 mm	Male Pin	3.96 mm	0.156 in		60 µin	1.52 Ám	Solder	Board to Board Cable	Tin	Through Hole	3.56 mm	0.14 in	1	Square		6
Molex 0027624079	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	0.446 in	11.33 mm	Friction Lock		Header	UL94 V-0	Shrouded - 1 Wall	Polyester Glass Filled	11.43 mm	0.45 in	Natural	0.72 in	18.29 mm	Male Pin	3.96 mm	0.156 in		60 µin	1.52 Ám	Solder	Board to Board Cable	Tin	Through Hole	3.56 mm	0.14 in	1	Square		7
