33457 Series

Catalog

CONN RING CIRC 10-12AWG #10

Part	Contact Finish	Thickness	Thickness	Features	Width - Outer Edges [x]	Width - Outer Edges [x]	Termination	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Insulation	Mounting Type	Stud/Tab Size	Contact Material

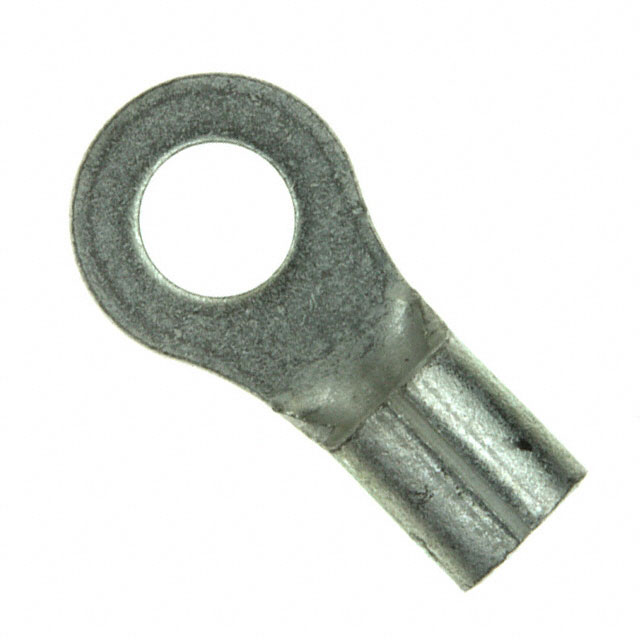

TE Connectivity Raychem Cable Protection 2-33457-2	Tin	0.99 mm	0.039 in	Brazed Seam Serrated Termination	0.375 in	9.53 mm	Crimp	Circular	12 AWG	10 AWG	19.43 mm	0.765 in	Non-Insulated	Free Hanging (In-Line)	10 Stud	Copper

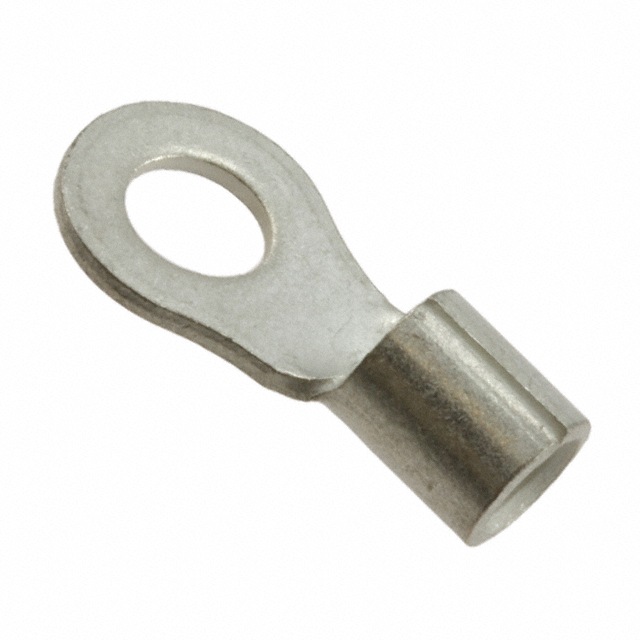

TE Connectivity Raychem Cable Protection 8-33457-1	Tin	0.99 mm	0.039 in	Brazed Seam Serrated Termination	0.375 in	9.53 mm	Crimp	Circular	12 AWG	10 AWG	19.43 mm	0.765 in	Non-Insulated	Free Hanging (In-Line)	10 Stud	Copper
