700CSP7 Series

Manufacturer: E-Switch

Catalog

PUSHBUTTON SWITCHES 3A @ 120 VAC/ 28 VDC 460 SUPPORT BRKT

Part	Electrical Life	Current Rating (Amps)	Color - Actuator/Cap	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Termination Style	Type	Actuator Marking	Actuator Type	Mounting Type	Voltage Rating - AC	Circuit	Panel Cutout Dimensions [diameter]
E-Switch 700CSP7B71VS3QE	50000 Cycles	3 A	White	28 V	85 °C	-30 ░C	On-On	PC Pin	Standard	No Marking	Plunger Round	Through Hole	120 V	SPDT
E-Switch 700CSP7B60M2QE	50000 Cycles	3 A	White	28 V	85 °C	-30 ░C	On-On	PC Pin	Standard	No Marking	Plunger Round	Panel Mount Rear	120 V	SPDT	0.25 in

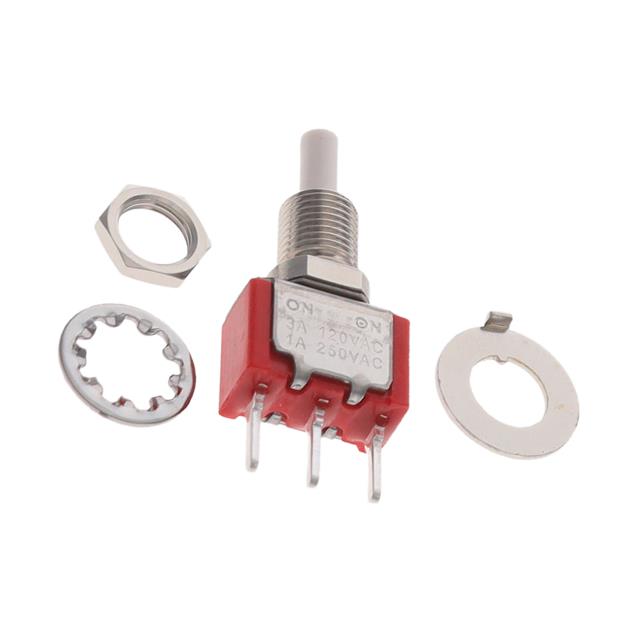

E-Switch 700CSP7B60M2QEH	50000 Cycles	3 A	White	28 V	85 °C	-30 ░C	On-On	PC Pin	Standard	No Marking	Plunger Round	Panel Mount Rear	120 V	SPDT	0.25 in
E-Switch 700CSP7B60M7REH	50000 Cycles	0.4 VA	White	20 V	85 °C	-30 ░C	On-On	PC Pin	Standard	No Marking	Plunger Round	Panel Mount Rear Right Angle Vertical	20 V	SPDT
E-Switch 700CSP7B60M6RE	50000 Cycles	0.4 VA	White	20 V	85 °C	-30 ░C	On-On	PC Pin	Standard	No Marking	Plunger Round	Panel Mount Rear Right Angle	20 V	SPDT	0.25 in
E-Switch 700CSP7B61M2QE	50000 Cycles	3 A	White	28 V	85 °C	-30 ░C	On-On	PC Pin	Standard	No Marking	Plunger Round	Panel Mount Rear	120 V	SPDT	0.25 in
E-Switch 700CSP7B60VS2REH	50000 Cycles	0.4 VA	White	20 V	85 °C	-30 ░C	On-On	PC Pin	Standard	No Marking	Plunger Round	Through Hole	20 V	SPDT
E-Switch 700CSP7B60VS3QE	50000 Cycles	3 A	White	28 V	85 °C	-30 ░C	On-On	PC Pin	Standard	No Marking	Plunger Round	Panel Mount Rear	120 V	SPDT	0.25 in
E-Switch 700CSP7B60M1QEH	50000 Cycles	3 A	White	28 V	85 °C	-30 ░C	On-On	Solder Lug	Standard	No Marking	Plunger Round	Panel Mount Rear	120 V	SPDT
