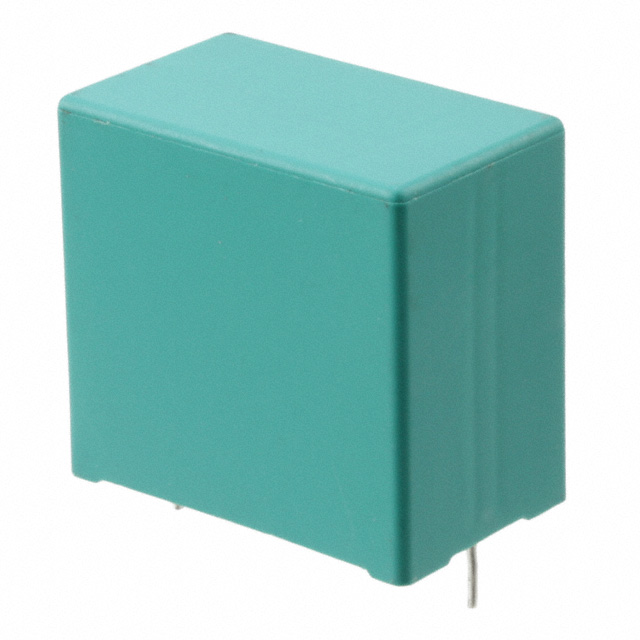

C4AEGB Series

Manufacturer: KEMET

Catalog

CAP FILM 100UF 450V PP 5%( 57.5 X 35 X 50MM) PLASTIC RECTANGULAR CAN 52.5MM 0.0042 OHM 85°C BOX

Part	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Package / Case	ESR (Equivalent Series Resistance)	Termination	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Mounting Type	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Dielectric Material	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
KEMET C4AEGBW6100A3NJ	85 °C	-40 C	5 %	Radial - 4 Leads	4.2 mOhm	PC Pins	52.5 mm	2.067 in	1.969 in	50 mm	DC Filtering DC Link High Frequency Switching	Through Hole	450 V	57.5 mm	1.378 in	35 mm	2.264 in	Polypropylene (PP) Metallized	100 µF
KEMET C4AEGBU5200A12J	85 °C	-40 C	5 %	Radial	4.8 mOhms	PC Pins	27.5 mm	1.083 in			DC Filtering DC Link High Frequency Switching	Through Hole	450 V		22 mm		31.5 mm	Polypropylene (PP) Metallized	20 µF	0.866 in	1.24 in	1.465 in	37.2 mm
KEMET C4AEGBW6100H3NJ	100 °C	-40 C	5 %	Radial		PC Pins	52.5 mm	2.067 in	1.969 in	50 mm	DC Filtering DC Link High Frequency Switching	Through Hole	450 V	57.5 mm	1.378 in	35 mm	2.264 in	Polypropylene (PP) Metallized	100 µF
KEMET C4AEGBU5100A1XK	85 °C	-40 C	10 %	Radial	8.1 mOhms	PC Pins	27.5 mm	1.083 in			DC Filtering DC Link High Frequency Switching	Through Hole	450 V		13 mm		31.5 mm	Polypropylene (PP) Metallized	10 µF	0.512 "	1.24 in	0.992 in	25.2 mm
KEMET C4AEGBW5350A3JJ	85 °C	-40 C	5 %	Radial - 4 Leads	9.1 mOhms	PC Pins	37.5 mm	1.476 in			DC Filtering DC Link High Frequency Switching	Through Hole	450 V			28 mm	42.5 mm	Polypropylene (PP) Metallized	35 µF	1.102 "	1.673 "	1.465 in	37.2 mm
KEMET C4AEGBU4450A1WJ	85 °C	-40 C	5 %	Radial	14.2 mOhms	PC Pins	27.5 mm	1.083 in	0.795 in		DC Filtering DC Link High Frequency Switching	Through Hole	450 V					Polypropylene (PP) Metallized	4.5 µF					20.2 mm
KEMET C4AEGBU5125A11J	85 °C	-40 C	5 %	Radial	6.2 mOhms	PC Pins	27.5 mm	1.083 in			DC Filtering DC Link High Frequency Switching	Through Hole	450 V					Polypropylene (PP) Metallized	12.5 µF			1.15 "	29.2 mm
KEMET C4AEGBW5500A3LJ	85 °C	-40 C	5 %	Radial - 4 Leads	2.5 mOhms	PC Pins	37.5 mm	1.476 in			DC Filtering DC Link High Frequency Switching	Through Hole	450 V		30 mm		42 mm	Polypropylene (PP) Metallized	50 µF	1.181 in	1.654 in	1.772 "	45 mm
