FUSE 5x20 F LBC 315mA/250V (P)
Description
AI

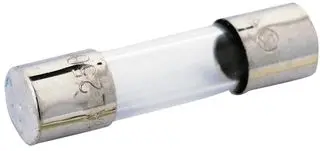

5x20mm fast-acting glass body cartridge fuse designed to IEC specification.
Beta
⌘K
FUSE 5x20 F LBC 315mA/250V (P)
FUSE 5x20 F LBC 315mA/250V (P)
| Part | Package / Case [x] | Package / Case [y] | Mounting Type | Melting I²t | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Fuse Type | Voltage Rating - AC | Current Rating (Amps) | Response Time | Breaking Capacity @ Rated Voltage | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Package / Case | Size / Dimension [custom] | Size / Dimension [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 5 mm | 20 mm | Requires Holder | 0.11 I²t | CCC CE CSA K-Mark SEMKO UL VDE | -55 C | 125 °C | Cartridge Glass | 250 V | 0.315 A | Fast Blow | 35 A | 20 mm | 0.205 in | 0.787 " | 5.2 mm | |||
LITTELFUSE | 5 mm | 20 mm | Through Hole | 0.11 I²t | CCC CE CSA K-Mark SEMKO UL VDE | -55 C | 125 °C | Cartridge Glass | 250 V | 0.315 A | Fast Blow | 35 A | 0.236 in | 6 mm | Axial | 22.5 mm | 0.886 in | ||
 LITTELFUSE | 5 mm | 20 mm | Requires Holder | 17.72 | BSI CCC CE CSA KC PSE SEMKO UR VDE | -55 C | 125 °C | Cartridge Glass | 250 V | 3.15 A | Fast Blow | 35 A | 20 mm | 0.205 in | 0.787 " | 5.2 mm | |||
 LITTELFUSE | 5 mm | 20 mm | Through Hole | 17.72 | BSI CCC CE CSA KC PSE SEMKO UR VDE | -55 C | 125 °C | Cartridge Glass | 250 V | 3.15 A | Fast Blow | 35 A | 22.5 mm | 0.228 " | 0.886 in | 5.8 mm | Axial |
