1645498 Series

Catalog

CONNECTOR, 3 CONTACTS, HEADER, PRESS FIT, 1 ROWS

Part	Voltage Rating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions Loaded	Contact Layout, Typical	Pitch	Pitch	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Termination	Contact Finish	Connector Type	Number of Positions

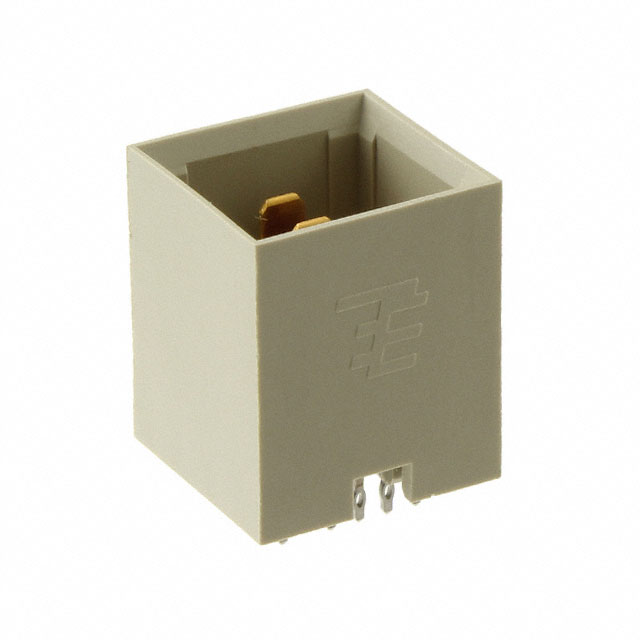

TE Connectivity AMP Connectors 1645498-1	250 V	UL94 V-0	-55 C	125 °C	Natural	All	3 Power	0.118 in	3 mm	Blade Power	50 µin	1.27 µm	Through Hole	Press-Fit	Gold	Plug Male Blades

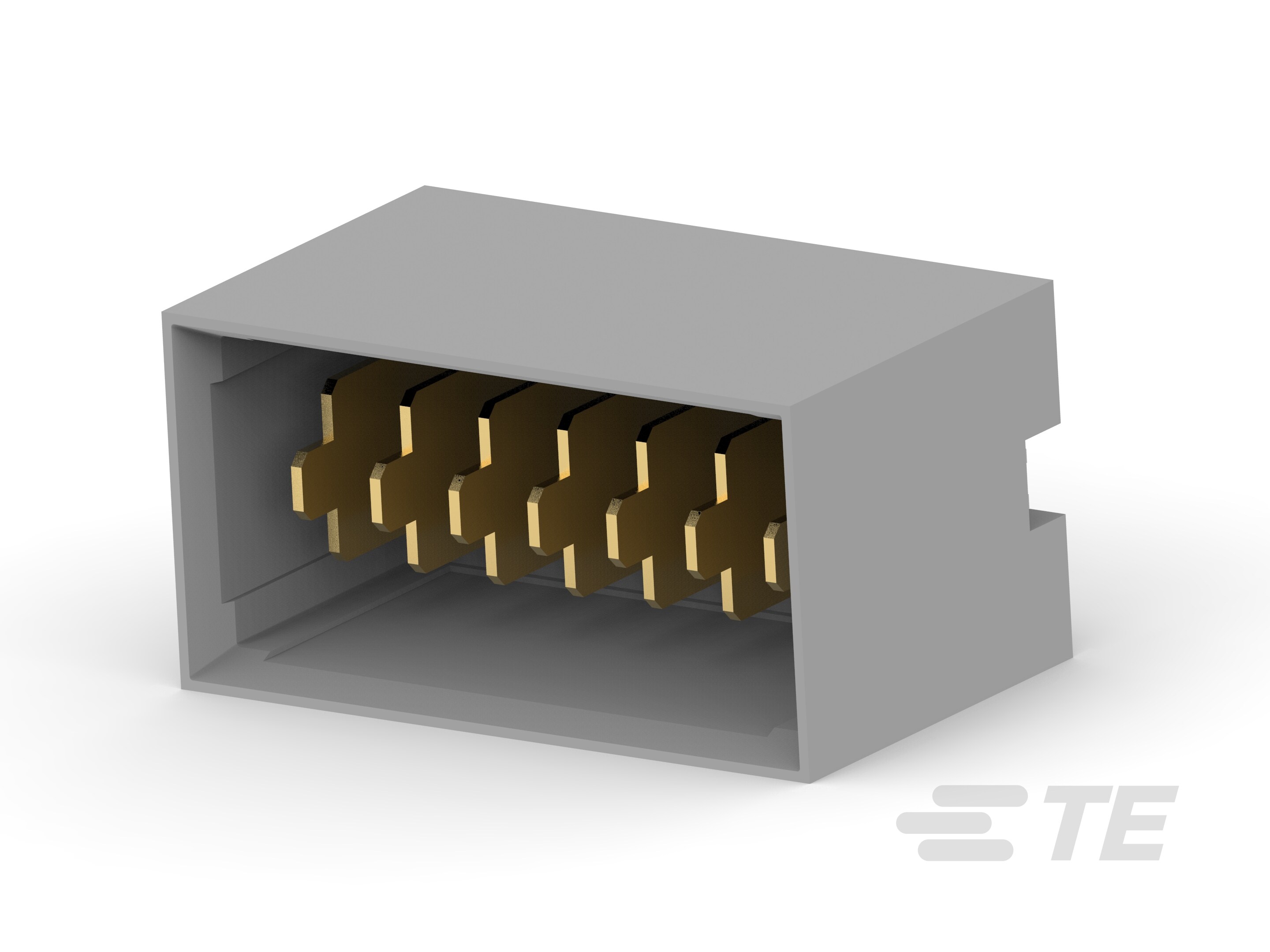

TE Connectivity AMP Connectors 1645498-5	250 V	UL94 V-0	-55 C	125 °C	Natural	All	7 Power	0.118 in	3 mm	Blade Power	50 µin	1.27 µm	Through Hole	Press-Fit	Gold	Plug Male Blades	7

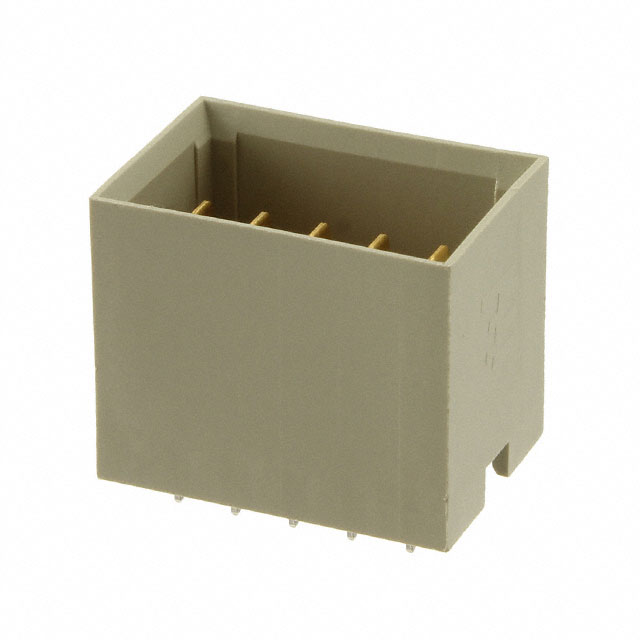

TE Connectivity AMP Connectors 1645498-3	250 V	UL94 V-0	-55 C	125 °C	Natural	All	5 Power	0.118 in	3 mm	Blade Power	50 µin	1.27 µm	Through Hole	Press-Fit	Gold	Plug Male Blades	5

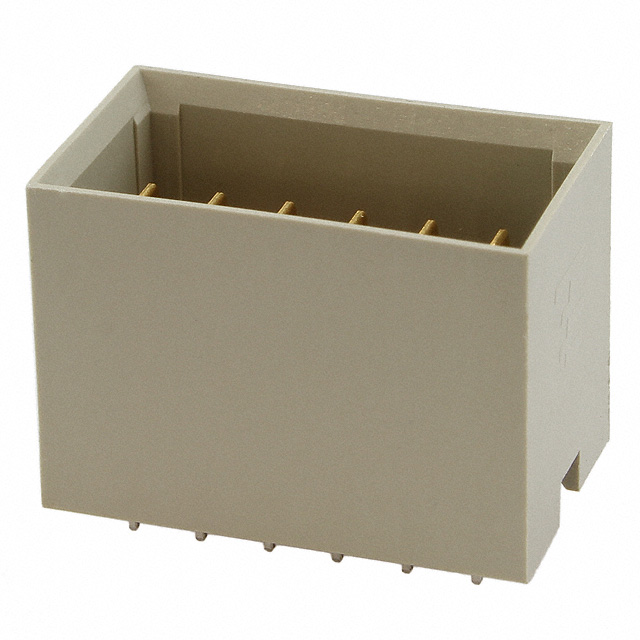

TE Connectivity AMP Connectors 1645498-4	250 V	UL94 V-0	-55 C	125 °C	Natural	All	6 Power	0.118 in	3 mm	Blade Power	50 µin	1.27 µm	Through Hole	Press-Fit	Gold	Plug Male Blades	6

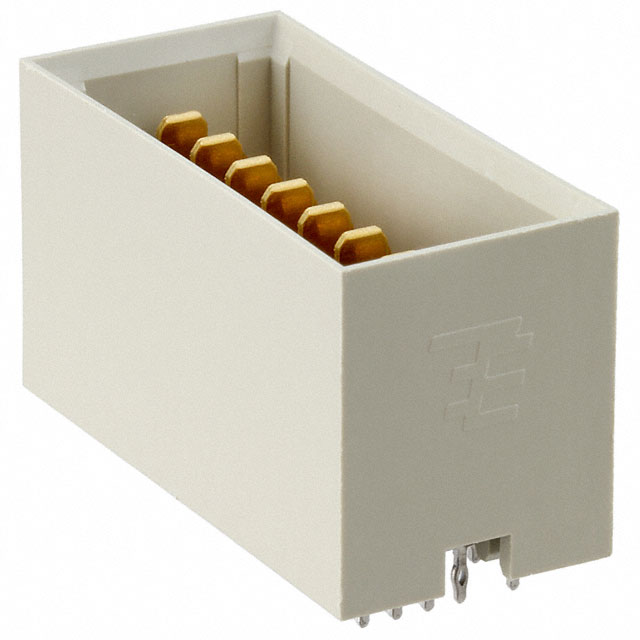

TE Connectivity AMP Connectors 1645498-6	250 V	UL94 V-0	-55 C	125 °C	Natural	All	8 Power	0.118 in	3 mm	Blade Power	50 µin	1.27 µm	Through Hole	Press-Fit	Gold	Plug Male Blades	8

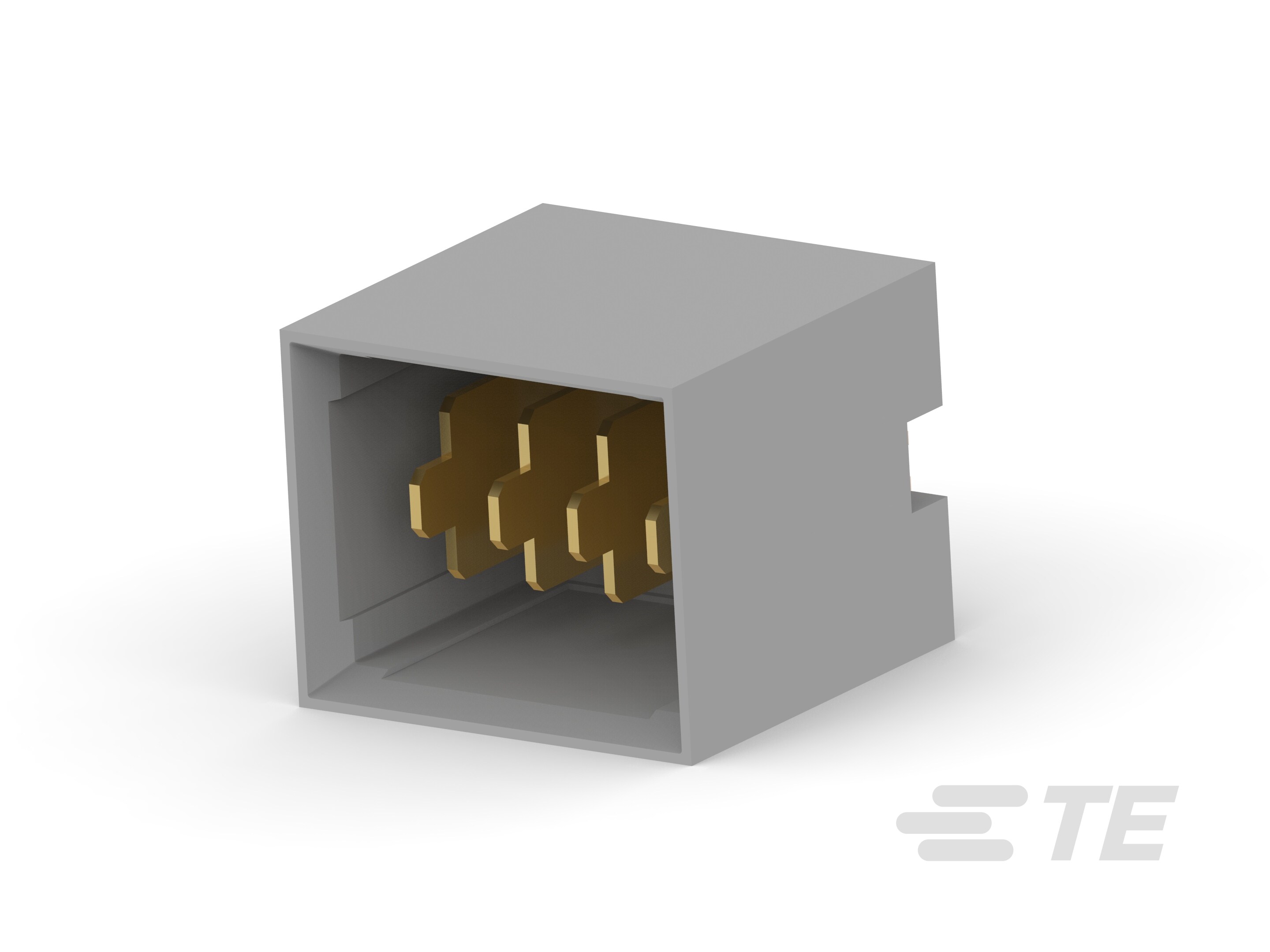

TE Connectivity AMP Connectors 1645498-2	250 V	UL94 V-0	-55 C	125 °C	Natural	All	4 Power	0.118 in	3 mm	Blade Power	50 µin	1.27 µm	Through Hole	Press-Fit	Gold	Plug Male Blades	4
