ASP044 Series

Catalog

SPRING CLAMP TERMINAL BLOCK, PLU

Part	Housing Material	Contact Material	Ingress Protection	Insulation Height	Insulation Height	Material Flammability Rating	Pitch	Pitch	Number of Positions	Number of Levels	Type	Plug Wire Entry	Features	Contact Mating Finish	Voltage - UL	Current - UL	Mounting Type	Positions Per Level	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Color	Positions Per Level [custom]

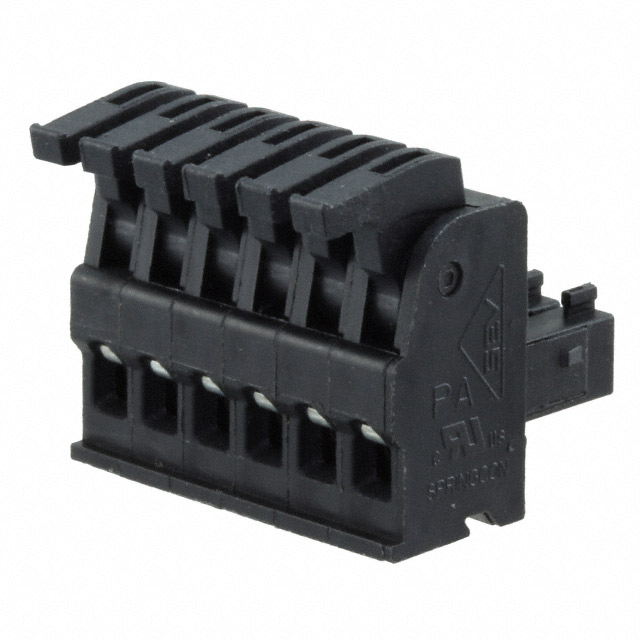

METZ CONNECT USA Inc. ASP0440622	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	0.61 in	15.49 mm	UL94 V-0	3.81 mm	0.15 in	6	1	Plug Female Sockets	180 °	Lever Actuated	Tin	150 V	10 A	Free Hanging (In-Line)	6	Screwless - Spring Cage Tension Clamp	28 AWG	16 AWG	-40 C	105 ░C	0.08 mm²	1.5 mm²	Black
METZ CONNECT USA Inc. ASP0440922	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	0.61 in	15.49 mm	UL94 V-0	3.81 mm	0.15 in	9	1	Plug Female Sockets	180 °	Lever Actuated	Tin	150 V	10 A	Free Hanging (In-Line)	9	Screwless - Spring Cage Tension Clamp	28 AWG	16 AWG	-40 C	105 ░C	0.08 mm²	1.5 mm²	Black

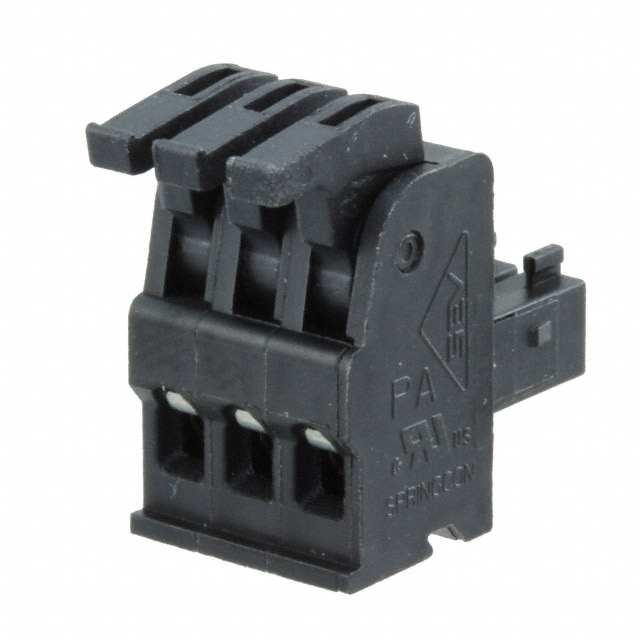

METZ CONNECT USA Inc. ASP0440322	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	0.61 in	15.49 mm	UL94 V-0	3.81 mm	0.15 in		1	Plug Female Sockets	180 °	Lever Actuated	Tin	150 V	10 A	Free Hanging (In-Line)	3	Screwless - Spring Cage Tension Clamp	28 AWG	16 AWG	-40 C	105 ░C	0.08 mm²	1.5 mm²	Black

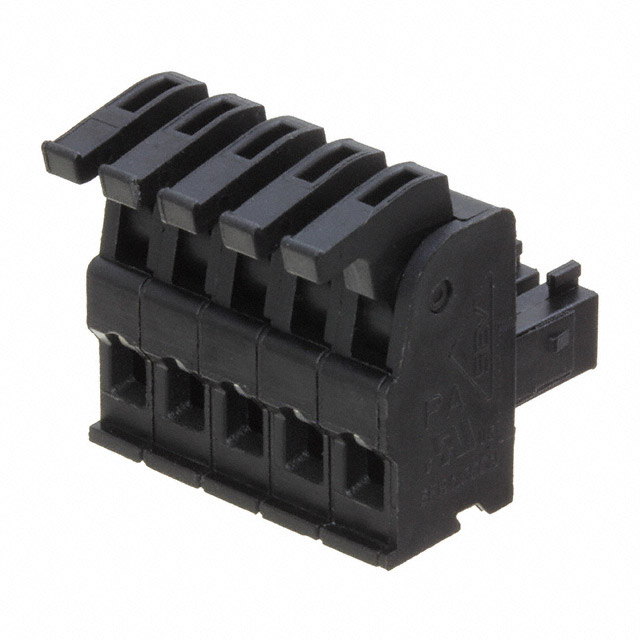

METZ CONNECT USA Inc. ASP0440522	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	0.61 in	15.49 mm	UL94 V-0	3.81 mm	0.15 in	5	1	Plug Female Sockets	180 °	Lever Actuated	Tin	150 V	10 A	Free Hanging (In-Line)	5	Screwless - Spring Cage Tension Clamp	28 AWG	16 AWG	-40 C	105 ░C	0.08 mm²	1.5 mm²	Black
METZ CONNECT USA Inc. ASP0440822	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	0.61 in	15.49 mm	UL94 V-0	3.81 mm	0.15 in	8	1	Plug Female Sockets	180 °	Lever Actuated	Tin	150 V	10 A	Free Hanging (In-Line)	8	Screwless - Spring Cage Tension Clamp	28 AWG	16 AWG	-40 C	105 ░C	0.08 mm²	1.5 mm²	Black
METZ CONNECT USA Inc. ASP0441222	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	0.61 in	15.49 mm	UL94 V-0	3.81 mm	0.15 in	12	1	Plug Female Sockets	180 °	Lever Actuated	Tin	150 V	10 A	Free Hanging (In-Line)	12	Screwless - Spring Cage Tension Clamp	28 AWG	16 AWG	-40 C	105 ░C	0.08 mm²	1.5 mm²	Black

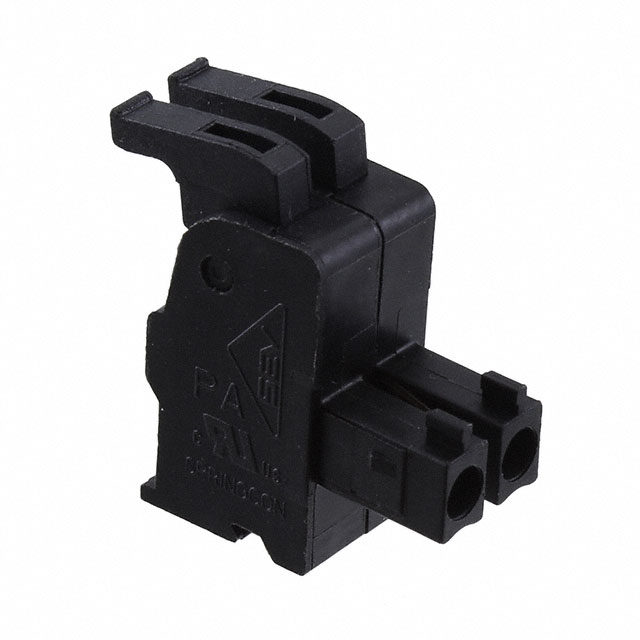

METZ CONNECT USA Inc. ASP0440222	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	0.61 in	15.49 mm	UL94 V-0	3.81 mm	0.15 in	2	1	Plug Female Sockets	180 °	Lever Actuated	Tin	150 V	10 A	Free Hanging (In-Line)	2	Screwless - Spring Cage Tension Clamp	28 AWG	16 AWG	-40 C	105 ░C	0.08 mm²	1.5 mm²	Black
METZ CONNECT USA Inc. ASP0440722	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	0.61 in	15.49 mm	UL94 V-0	3.81 mm	0.15 in	7	1	Plug Female Sockets	180 °	Lever Actuated	Tin	150 V	10 A	Free Hanging (In-Line)		Screwless - Spring Cage Tension Clamp	28 AWG	16 AWG	-40 C	105 ░C	0.08 mm²	1.5 mm²	Black	7

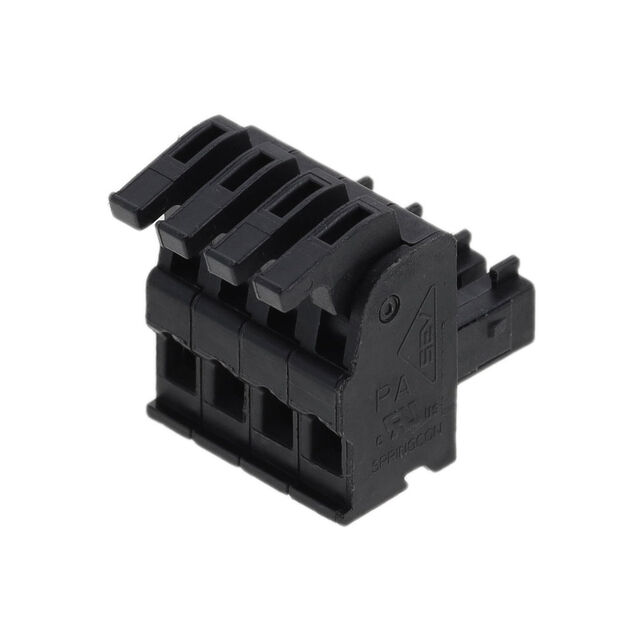

METZ CONNECT USA Inc. ASP0440422	Polyamide (PA46) Nylon 4/6	Copper Alloy	IP20	0.61 in	15.49 mm	UL94 V-0	3.81 mm	0.15 in	4	1	Plug Female Sockets	180 °	Lever Actuated	Tin	150 V	10 A	Free Hanging (In-Line)	4	Screwless - Spring Cage Tension Clamp	28 AWG	16 AWG	-40 C	105 ░C	0.08 mm²	1.5 mm²	Black
