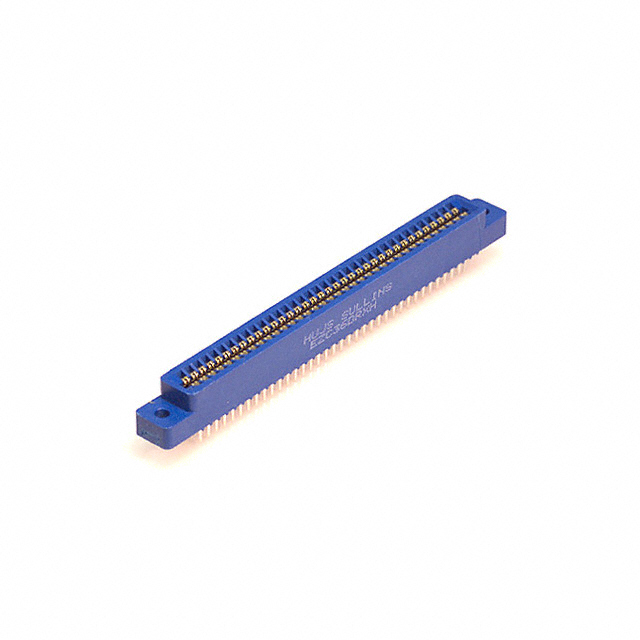

EZC36 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 72POS 0.100
| Part | Contact Finish Thickness | Contact Finish Thickness | Read Out | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Number of Positions | Card Thickness | Card Thickness | Gender | Contact Material | Termination | Mounting Type | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Color | Material - Insulation | Contact Finish | Contact Type | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 10 Áin | 0.25 Ám | Dual | Non Specified - Dual Edge | 125 °C | -65 ░C | 2.54 mm | 0.1 in | 72 | 0.062 in | 1.57 mm | Female | Phosphor Bronze | Solder | Through Hole | 2 | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Blue | Polybutylene Terephthalate (PBT) | Gold | Full Bellows | 36 |
