83004 Series

Catalog

HOOK-UP STRND 24AWG YELLOW

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Qualification	Conductor Material	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
Belden Inc. 83004 004100	High Temperature	-70 °C	200 °C	Hook-Up	MIL-W-16878/4	Copper Silver Coated	24 AWG	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in	100 ft	30.5 m	600 V	0.25 mm	0.01 in	Yellow	UL Style 1213	7	32 AWG
Belden Inc. 83004 010100	High Temperature	-70 °C	200 °C	Hook-Up	MIL-W-16878/4	Copper Silver Coated	24 AWG	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in	100 ft	30.5 m	600 V	0.25 mm	0.01 in	Black	UL Style 1213	7	32 AWG
Belden Inc. 83004 0091000	High Temperature	-70 °C	200 °C	Hook-Up	MIL-W-16878/4	Copper Silver Coated	24 AWG	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in			600 V	0.25 mm	0.01 in	White	UL Style 1213	7	32 AWG	304.8 m	1000 ft

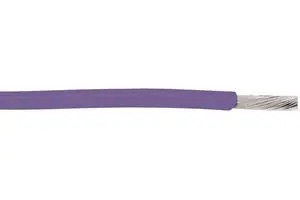

Belden Inc. 83004 007100	High Temperature	-70 °C	200 °C	Hook-Up	MIL-W-16878/4	Copper Silver Coated	24 AWG	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in	100 ft	30.5 m	600 V	0.25 mm	0.01 in	Violet	UL Style 1213	7	32 AWG
Belden Inc. 83004 001100	High Temperature	-70 °C	200 °C	Hook-Up	MIL-W-16878/4	Copper Silver Coated	24 AWG	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in	100 ft	30.5 m	600 V	0.25 mm	0.01 in	Brown	UL Style 1213	7	32 AWG
Belden Inc. 83004 0071000	High Temperature	-70 °C	200 °C	Hook-Up	MIL-W-16878/4	Copper Silver Coated	24 AWG	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in			600 V	0.25 mm	0.01 in	Violet	UL Style 1213	7	32 AWG	304.8 m	1000 ft
Belden Inc. 83004 003100	High Temperature	-70 °C	200 °C	Hook-Up	MIL-W-16878/4	Copper Silver Coated	24 AWG	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in	100 ft	30.5 m	600 V	0.25 mm	0.01 in	Orange	UL Style 1213	7	32 AWG

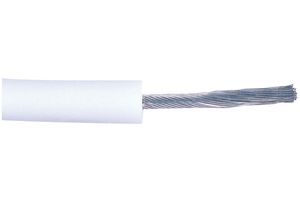

Belden Inc. 83004 009100	High Temperature	-70 °C	200 °C	Hook-Up	MIL-W-16878/4	Copper Silver Coated	24 AWG	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in	100 ft	30.5 m	600 V	0.25 mm	0.01 in	White	UL Style 1213	7	32 AWG
Belden Inc. 83004 0051000	High Temperature	-70 °C	200 °C	Hook-Up	MIL-W-16878/4	Copper Silver Coated	24 AWG	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in			600 V	0.25 mm	0.01 in	Green	UL Style 1213	7	32 AWG	304.8 m	1000 ft
Belden Inc. 83004 0021000	High Temperature	-70 °C	200 °C	Hook-Up	MIL-W-16878/4	Copper Silver Coated	24 AWG	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in			600 V	0.25 mm	0.01 in	Red	UL Style 1213	7	32 AWG	304.8 m	1000 ft
