R18526 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

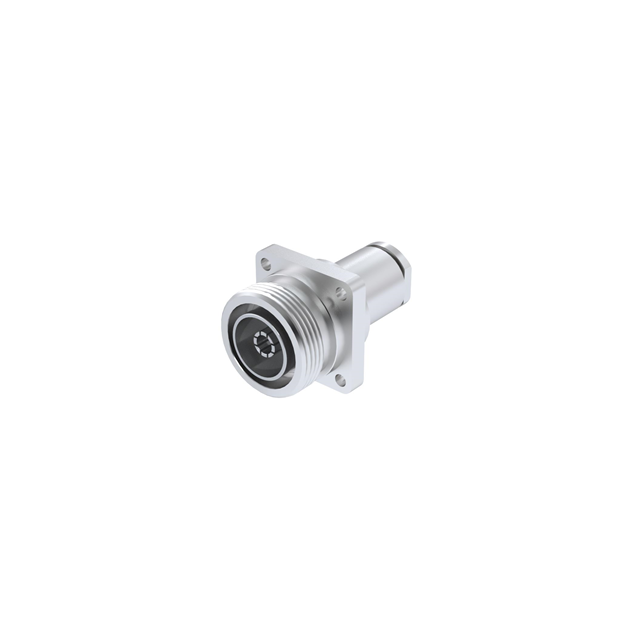

7-16 / STRAIGHT SQUARE FLANGE JA
| Part | Body Finish | Dielectric Material | Center Contact Plating | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Voltage Rating | Housing Color | Number of Ports | Center Contact Material | Connector Type | Connector Style | Mounting Type | Contact Termination | Frequency - Max [Max] | Mounting Feature | Fastening Type | Impedance | Ingress Protection | Cable Group | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | White Bronze | Polytetrafluoroethylene (PTFE) | Silver | Brass | 155 C | -55 C | 500 | 1400 V | Silver | 1 | Beryllium Copper | Female Socket Jack | 7/16 DIN | Panel Mount | Solder | 7.5 GHz | Flange | Threaded | 50 Ohms | IP67 - Dust Tight Waterproof | 214 225 393 RG-213 | Clamp |
 Radiall USA, Inc. | White Bronze | Polytetrafluoroethylene (PTFE) | Silver | Brass | 155 C | -55 C | 500 | 1400 V | Silver | 1 | Beryllium Copper | Female Socket Jack | 7/16 DIN | Panel Mount | Solder | 7.5 GHz | Flange | Threaded | 50 Ohms | IP67 - Dust Tight Waterproof | 214 225 393 RG-213 | Clamp |
