8829-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Contact Finish	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Termination

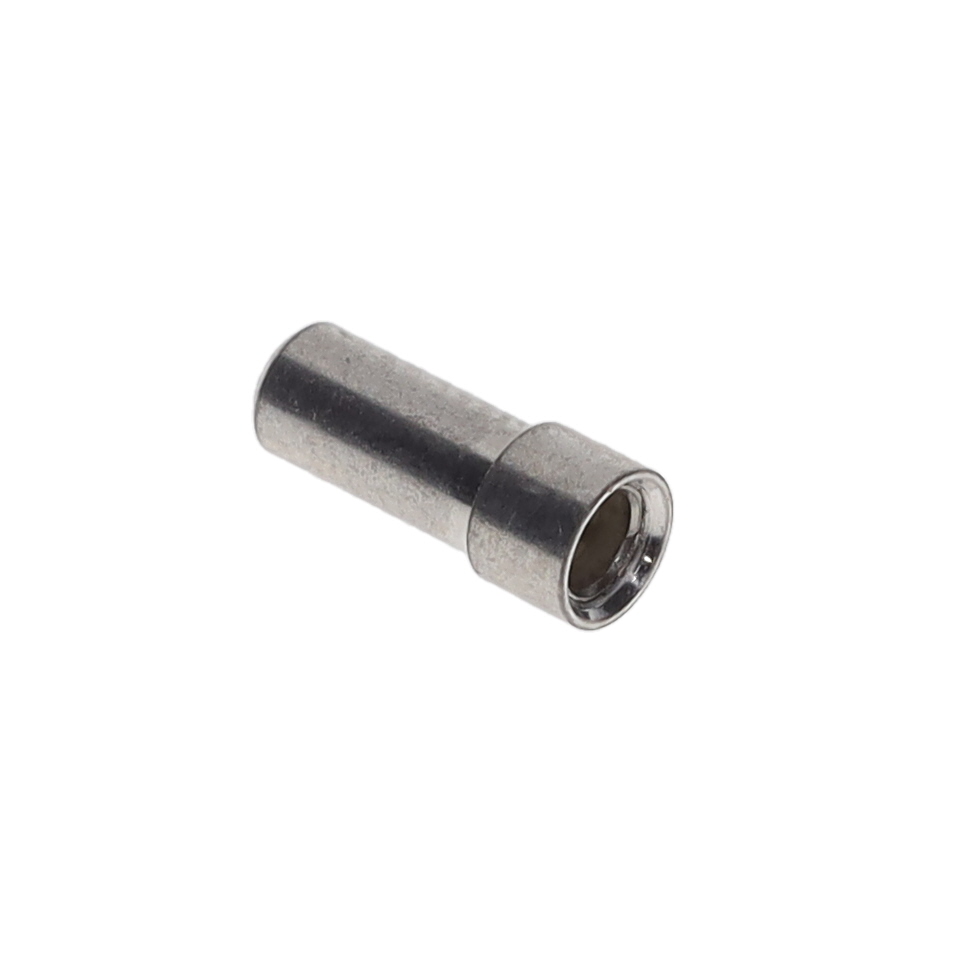

Mill-Max Manufacturing Corp. 8829-0-15-01-23-01-10-0	-55 C	125 °C	0.12 in	3.05 mm	0.245 in	6.22 mm	0.102 in	2.59 mm	Beryllium Copper	2.24 mm	0.088 "	200 Áin	5.08 Ám	No Tail	Tin-Lead	7.52 mm	0.296 in	0.045 "	1.65 mm	0.065 "	1.14 mm	Solder
Mill-Max Manufacturing Corp. 8829-0-15-80-23-80-10-0	-55 C	125 °C	0.12 in	3.05 mm	0.245 in	6.22 mm	0.102 in	2.59 mm	Beryllium Copper	2.24 mm	0.088 "	200 Áin	5.08 Ám	No Tail	Tin	7.52 mm	0.296 in	0.045 "	1.65 mm	0.065 "	1.14 mm	Solder
Mill-Max Manufacturing Corp. 8829-0-15-80-23-27-10-0	-55 C	125 °C	0.12 in	3.05 mm	0.245 in	6.22 mm	0.102 in	2.59 mm	Beryllium Copper	2.24 mm	0.088 "	30 Áin	0.76 Ám	No Tail	Gold	7.52 mm	0.296 in	0.045 "	1.65 mm	0.065 "	1.14 mm	Solder
Mill-Max Manufacturing Corp. 8829-0-15-80-23-14-10-0	-55 C	125 °C	0.12 in	3.05 mm	0.245 in	6.22 mm	0.102 in	2.59 mm	Beryllium Copper	2.24 mm	0.088 "	10 Áin	0.25 Ám	No Tail	Gold	7.52 mm	0.296 in	0.045 "	1.65 mm	0.065 "	1.14 mm	Solder
Mill-Max Manufacturing Corp. 8829-0-15-01-23-27-10-0	-55 C	125 °C	0.12 in	3.05 mm	0.245 in	6.22 mm	0.102 in	2.59 mm	Beryllium Copper	2.24 mm	0.088 "	30 Áin	0.76 Ám	No Tail	Gold	7.52 mm	0.296 in	0.045 "	1.65 mm	0.065 "	1.14 mm	Solder
