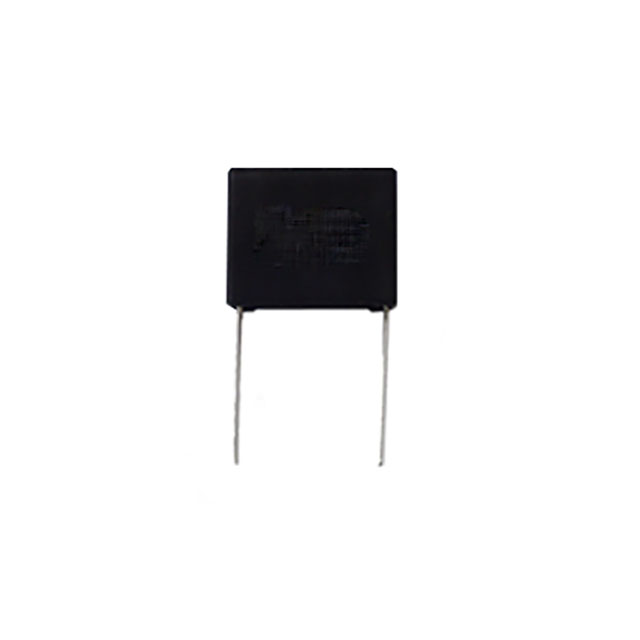

ECQ-UAAV274 Series

Catalog

CAP FILM 0.27UF 20% 310VAC RAD

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Package / Case	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Ratings	Capacitance	Applications	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components ECQ-UAAV274SA	9 mm	0.354 in	0.728 in	18.5 mm	310 V	18.5 mm	0.728 in	15 mm	0.591 in	Radial	Polypropylene (PP) Metallized	-40 C	110 °C	PC Pins	Through Hole	AEC-Q200 X2	0.27 µF	Automotive EMI RFI Suppression	20 %
Panasonic Electronic Components ECQ-UAAV274Q1	8 mm	0.315 in	1.024 in	26 mm	310 V			22.5 mm	0.886 in	Radial	Polypropylene (PP) Metallized	-40 C	110 °C	PC Pins	Through Hole	AEC-Q200 X2	0.27 µF	Automotive EMI RFI Suppression	10 %	0.61 in	15.5 mm
Panasonic Electronic Components ECQ-UAAV274R1	8 mm	0.315 in	1.024 in	26 mm	310 V			22.5 mm	0.886 in	Radial	Polypropylene (PP) Metallized	-40 C	110 °C	PC Pins	Through Hole	AEC-Q200 X2	0.27 µF	Automotive EMI RFI Suppression	20 %	0.61 in	15.5 mm
Panasonic Electronic Components ECQ-UAAV274T1	9 mm	0.354 in	0.728 in	18.5 mm	310 V	18.5 mm	0.728 in	15 mm	0.591 in	Radial	Polypropylene (PP) Metallized	-40 C	110 °C	PC Pins	Through Hole	AEC-Q200 X2	0.27 µF	Automotive EMI RFI Suppression	10 %
