29615 Series
Manufacturer: Phoenix Contact
Beta
⌘K

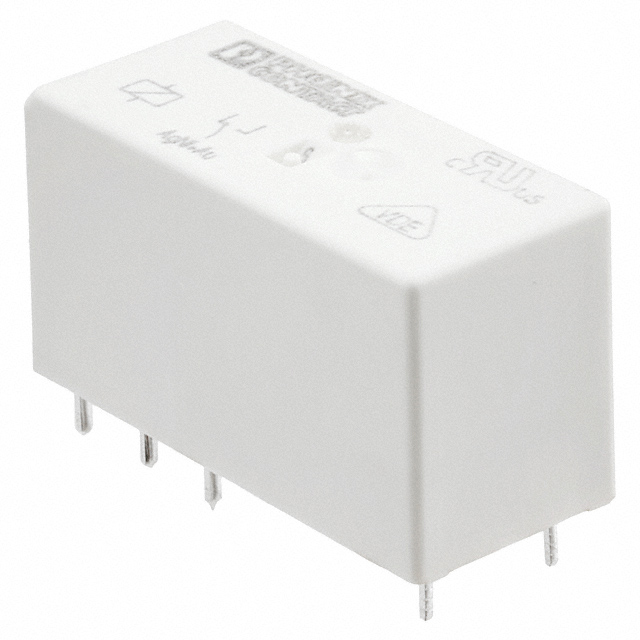

RELAY GEN PURPOSE SPDT 16A 24V
| Part | Coil Resistance | Contact Form | Coil Current | Contact Rating (Current) | Operate Time | Coil Type | Relay Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Mounting Type | Coil Voltage | Release Time | Approval Agency | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 750 Ohms | SPDT (1 Form C) | 32 mA | 16 A | 12 ms | Non Latching | General Purpose | PC Pin | 85 °C | -40 C | Silver Nickel (AgNi) | Through Hole | 24 VAC | 9 ms | cULus EAC UR | 250 VAC 250 VDC |
 Phoenix Contact | 32500 Ohms | SPDT (1 Form C) | 3 mA | 16 A | 12 ms | Non Latching | General Purpose | PC Pin | 85 °C | -40 C | Gold (Au) Silver Nickel (AgNi) | Through Hole | 230 VAC | 9 ms | cULus EAC UR | 250 VAC 250 VDC |

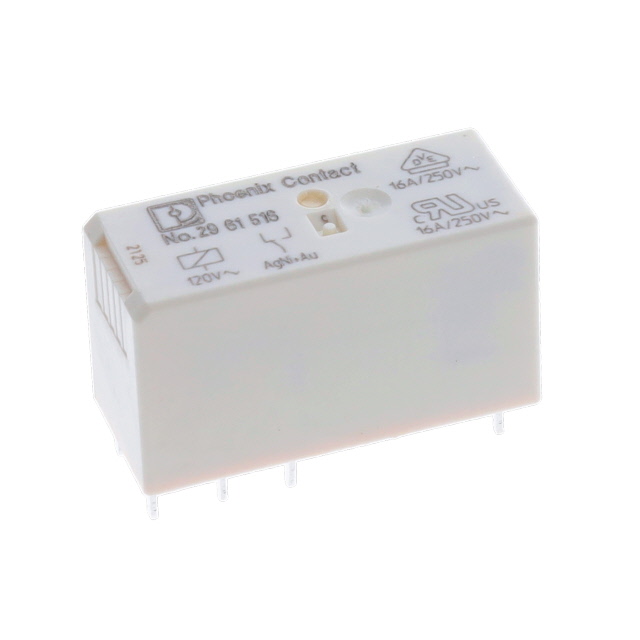

Phoenix Contact | 8.1 kOhms | SPDT (1 Form C) | 7 mA | 16 A | 12 ms | Non Latching | General Purpose | PC Pin | 85 °C | -40 C | Gold (Au) Silver Nickel (AgNi) | Through Hole | 120 VAC | 9 ms | cULus EAC UR | 250 VAC 250 VDC |
 Phoenix Contact | 1440 Ohms | SPDT (1 Form C) | 17 mA | 16 A | 7 ms | Non Latching | General Purpose | PC Pin | 85 °C | -40 C | Gold (Au) Silver Nickel (AgNi) | Through Hole | 24 VDC | 3 ms | cULus EAC UR | 250 VAC 250 VDC |
 Phoenix Contact | 360 Ohms | SPDT (1 Form C) | 33 mA | 16 A | 7 ms | Non Latching | General Purpose | PC Pin | 85 °C | -40 C | Gold (Au) Silver Nickel (AgNi) | Through Hole | 12 VDC | 3 ms | cULus EAC UR | 250 VAC 250 VDC |

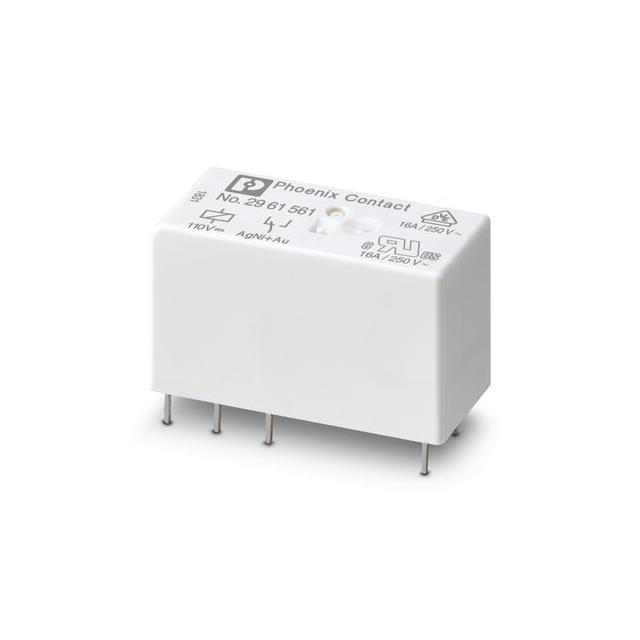

 Phoenix Contact | 26.6 kOhms | SPDT (1 Form C) | 4.1 mA | 16 A | 7 ms | Non Latching | General Purpose | PC Pin | 85 °C | -40 C | Gold (Au) Silver Nickel (AgNi) | Through Hole | 110 VDC | 3 ms | cULus EAC UR | 250 VAC 250 VDC |
