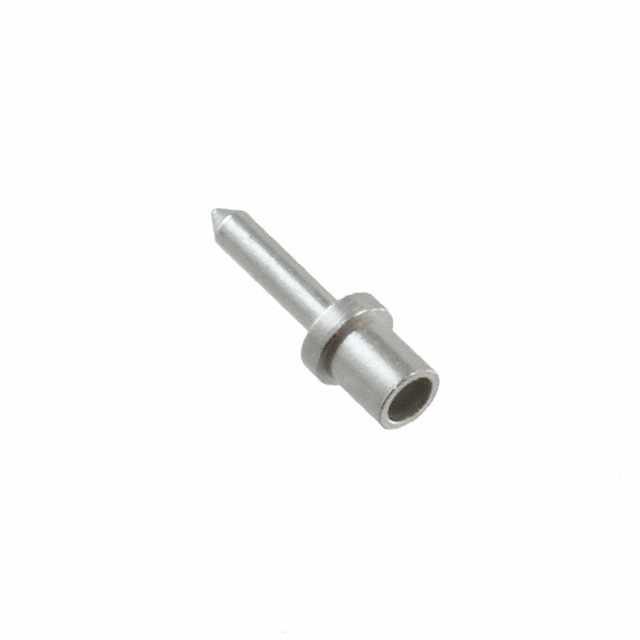

3145-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC .041DIA GOLD
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Style | Length - Above Flange | Length - Above Flange | Terminal Type | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Insulation | Termination | Mounting Type | Length - Below Flange [x] | Length - Below Flange [x] | Contact Material | Board Thickness | Board Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Overall | Length - Overall | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.093 in | 2.36 mm | Single End | 0.187 in | 4.75 mm | PC Pin | Gold | 1.93 mm | 0.076 in | 20 µin | 0.51 µm | Non-Insulated | Swage | Through Hole | 0.085 " | 2.16 mm | Brass Alloy | 1.57 mm | 0.062 " | 0.041 in | 1.04 mm | 7.54 mm | 0.297 " | ||
 Mill-Max Manufacturing Corp. | 0.093 in | 2.36 mm | Single End | 0.187 in | 4.75 mm | PC Pin | Tin | 1.57 mm | 0.062 in | 200 Áin | 5.08 Ám | Non-Insulated | Swage | Through Hole | 0.085 " | 2.16 mm | Brass Alloy | 0.041 in | 1.04 mm | 7.54 mm | 0.297 " | 1.83 mm | 0.072 in |
