TH020 Series

Catalog

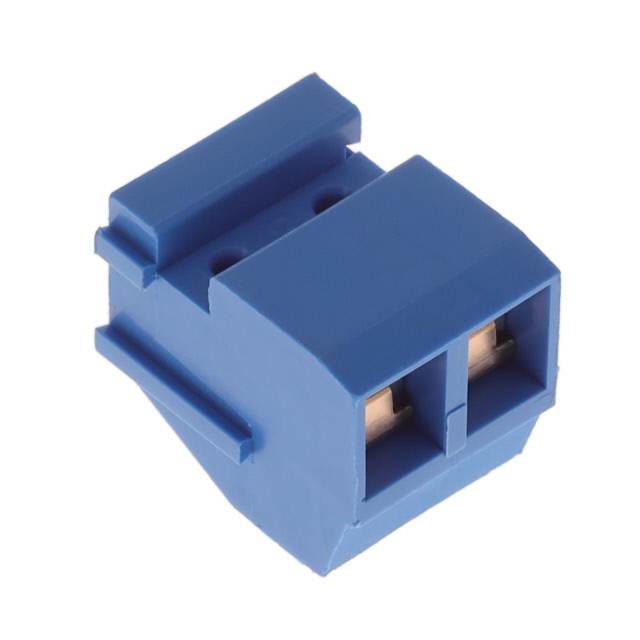

TH 5.0 - 2P BLUE, PHILLIPS SCREW

Part	Number of Positions	Voltage - IEC	Pitch [x]	Pitch [x]	Housing Material	Plug Wire Entry	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Material	Termination Style	Screw Size	Current - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - UL	Type	Color	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Positions Per Level	Features	Wire Strip Length [Min]	Wire Strip Length [Max]	Torque - Screw	Torque - Screw	Mounting Type	Material Flammability Rating
Amphenol Anytek TH0200600000G	2	300 V	5 mm	0.197 in	Thermoplastic	180° 90°	-40 °C	115 °C	0.433 in	11 mm	Copper	Screw - Leaf Spring Wire Guard	M2.6	12 A	0.34 mm²	1.5 mm²	300 V	Plug for Unshrouded Header	Blue	1	14 AWG	22 AWG	2	Interlocking (Side)	5 mm	6 mm	0.4 Nm	3.5 Lb-In	Free Hanging (In-Line)	UL94 V-0
