ISOBLOCK I Series

Catalog

TRANSDUCER CURRENT 9-28VDC

Part	Termination Style	Output Current (Max)	Output Voltage (Max)	Output Voltage (Min)	Output Current (Min)	Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Isolation	Input Current (Min)	Input Current (Max)	Current - Sensing	Response Time	Sensor Type	Mounting Type	Number of Channels	Accuracy	Output	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Output Voltage Tolerance	Input Voltage (Max)	Input Voltage (Min)
Verivolt LLC ISOBLOCK I-ST-1C (60A 10V)	Screw Terminal Spring Terminal	10 V	10 V	-10 V	-10 V	Current Transducer	28 V	9 VDC	2000 V	0 mA	60 A	60 A	2.8 µs	Current Transducer	DIN Rail	1	0.2 %	Open Collector	70 °C	-25 °C	Module
Verivolt LLC ISOBLOCK I-ST-1C (30A 10V)	Screw Terminal Spring Terminal	10 V	10 V	-10 V	-10 V	Current Transducer	28 V	9 VDC	2000 V	0 mA	30 A	30 A	2.8 µs	Current Transducer	DIN Rail	1	0.2 %	Open Collector	70 °C	-25 °C	Module

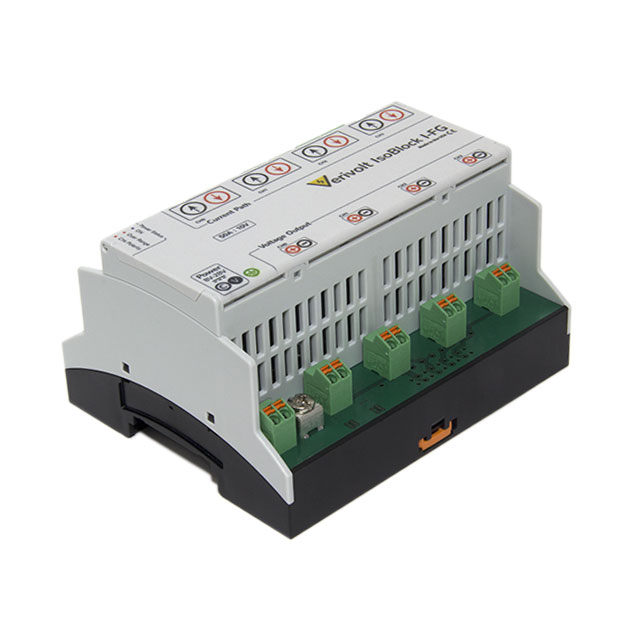

Verivolt LLC ISOBLOCK I-FG-4C (6A 5V)	Spring Terminal	5 V			-5 V	Current Transducer	28 V	9 VDC	1200 V	0 mA	6 A		5 µs		DIN Rail		0.2 %		70 °C	-25 °C		5 V

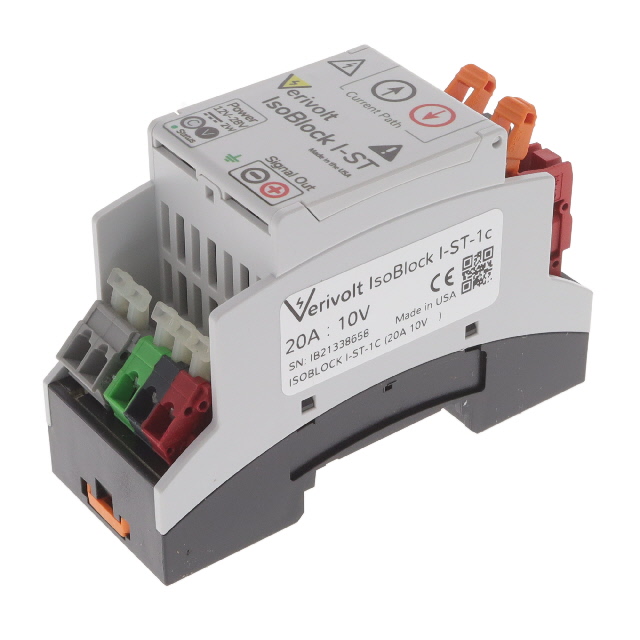

Verivolt LLC ISOBLOCK I-ST-1C (20A 10V)	Screw Terminal Spring Terminal	10 V	10 V	-10 V	-10 V	Current Transducer	28 V	9 VDC	2000 V	0 mA	20 A	20 A	2.8 µs	Current Transducer	DIN Rail	1	0.2 %	Open Collector	70 °C	-25 °C	Module

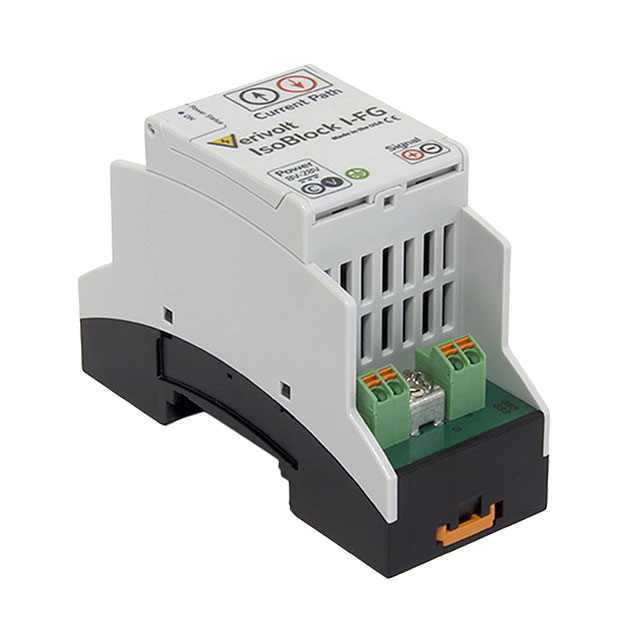

Verivolt LLC ISOBLOCK I-FG-1C (50A 10V)	Screw Terminal Spring Terminal	10 V	10 V	-10 V	-10 V	Current Transducer	28 V	9 VDC	1200 V	0 mA	50 A		5 µs		DIN Rail		0.2 %		70 °C	-25 °C
Verivolt LLC ISOBLOCK I-FG-1C (15A 10V)	Spring Terminal	10 V	10 V	-10 V	-10 V	Current Transducer	28 V	9 VDC	1200 V	0 mA	15 A		5 µs		DIN Rail		0.2 %		70 °C	-25 °C

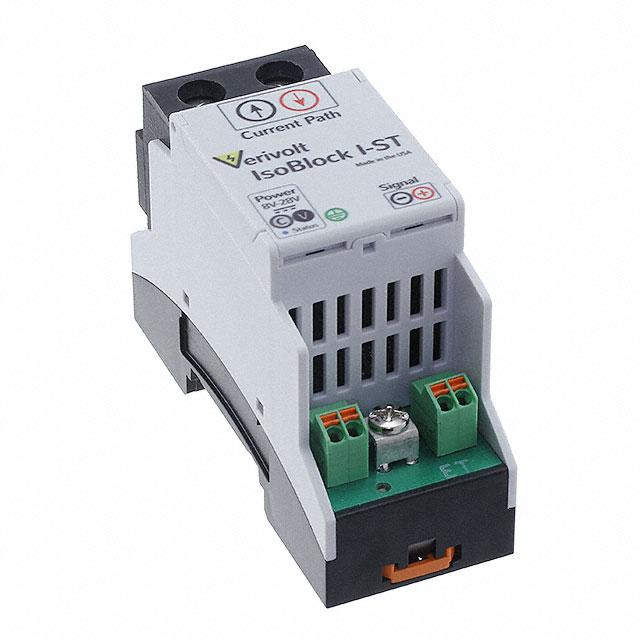

Verivolt LLC ISOBLOCK I-ST-1C (50A 10V)	Screw Terminal Spring Terminal	10 V	10 V	-10 V	-10 V	Current Transducer	28 V	9 VDC	2000 V	0 mA	50 A	50 A	2.8 µs	Current Transducer	DIN Rail	1	0.2 %	Open Collector	70 °C	-25 °C	Module
Verivolt LLC ISOBLOCK I-ST-1C (200MV 10V)	Screw Terminal Spring Terminal	10 V	10 V	-10 V	-10 V	Current Transducer	28 V	9 VDC	2000 V				2.8 µs	Current Transducer	DIN Rail	1	0.2 %	Open Collector	70 °C	-25 °C	Module		200 mV	-200 mV
Verivolt LLC ISOBLOCK I-FG-4C (15A 10V)	Spring Terminal	10 V	10 V	-10 V	-10 V	Current Transducer	28 V	9 VDC	1200 V	0 mA	15 A		5 µs		DIN Rail		0.2 %		70 °C	-25 °C
Verivolt LLC ISOBLOCK I-FG-1C (6A 5V)	Spring Terminal	5 V			-5 V	Current Transducer	28 V	9 VDC	1200 V	0 mA	6 A		5 µs		DIN Rail		0.2 %		70 °C	-25 °C		5 V
