2336678 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PIN HEADER, BLACK, KEY B, PCB HEADER, WIRE-TO-BOARD, 2 MM, 1 ROWS, 10 CONTACTS

Part	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Insulation Color	Style	Connector Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Material	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Features	Voltage Rating	Number of Rows	Shrouding	Material Flammability Rating	Insulation Material	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape

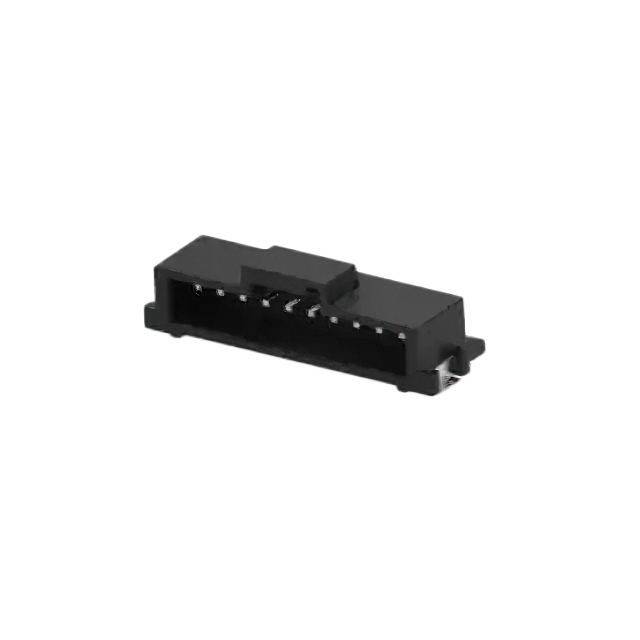

TE Connectivity Raychem Cable Protection 5-2336678-0	Tin	Surface Mount Right Angle	All	Black	Board to Cable/Wire	Header	Solder	78.7 µin	2 µm	-40 °C	105 ░C	Latch Holder	Brass	10	2 çm	78.7 çin	Male Pin	Glow Wire Compliant Solder Retention	50 VAC	1	Shrouded - 4 Wall	UL94 V-0	Nylon Polyamide (PA)	0.295 in	7.5 mm	0.079 in	2 mm	Square

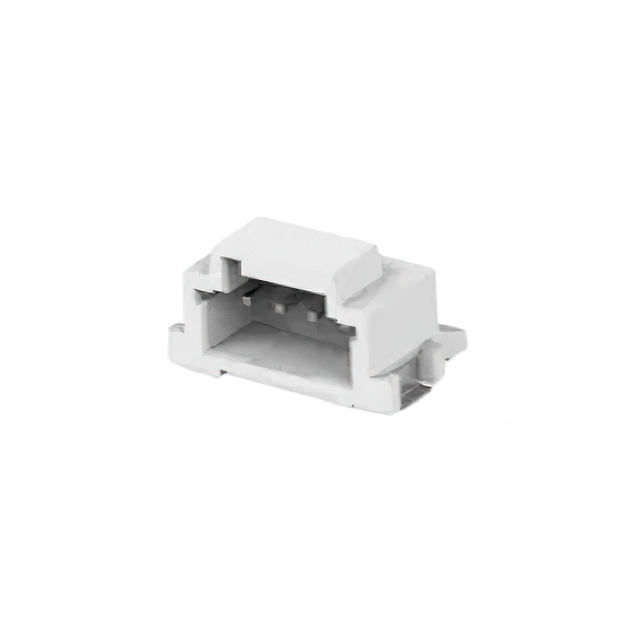

TE Connectivity Raychem Cable Protection 1-2336678-4	Tin	Surface Mount Right Angle	All	Natural	Board to Cable/Wire	Header	Solder	78.7 µin	2 µm	-40 °C	105 ░C	Latch Holder	Brass	4	2 çm	78.7 çin	Male Pin	Glow Wire Compliant Solder Retention	50 VAC	1	Shrouded - 4 Wall	UL94 V-0	Nylon Polyamide (PA)	0.295 in	7.5 mm	0.079 in	2 mm	Square

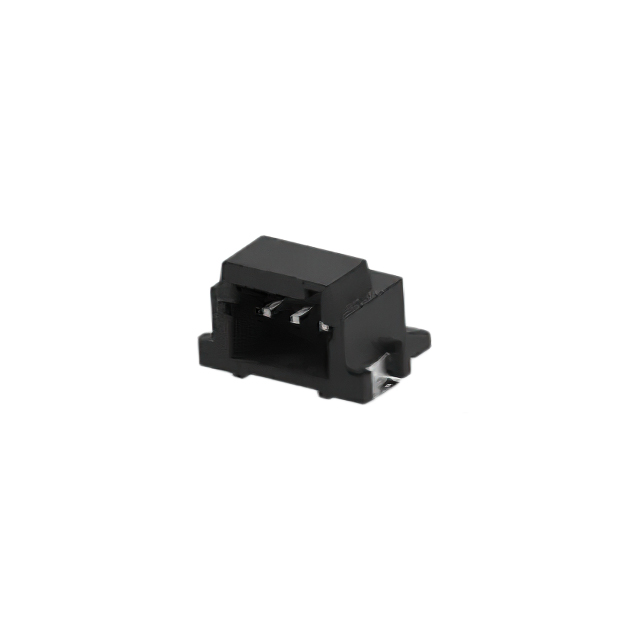

TE Connectivity Raychem Cable Protection 4-2336678-3	Tin	Surface Mount Right Angle	All	Black	Board to Cable/Wire	Header	Solder	78.7 µin	2 µm	-40 °C	105 ░C	Latch Holder	Brass		2 çm	78.7 çin	Male Pin	Glow Wire Compliant Solder Retention	50 VAC	1	Shrouded - 4 Wall	UL94 V-0	Nylon Polyamide (PA)	0.295 in	7.5 mm	0.079 in	2 mm	Square

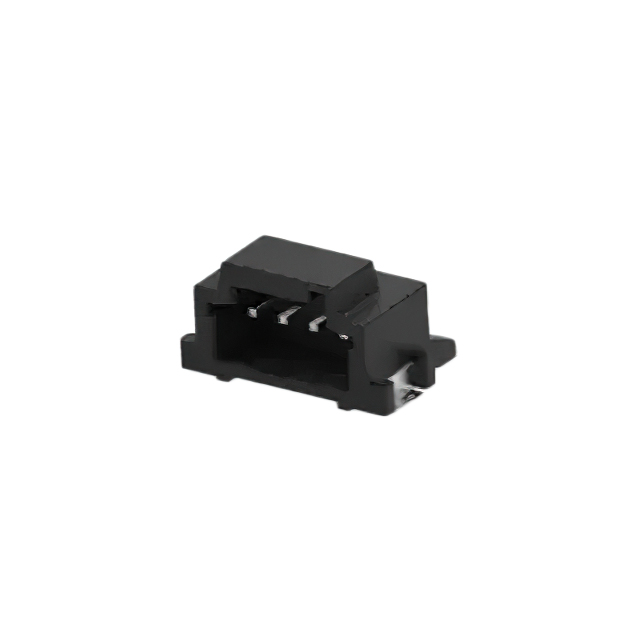

TE Connectivity Raychem Cable Protection 4-2336678-4	Tin	Surface Mount Right Angle	All	Black	Board to Cable/Wire	Header	Solder	78.7 µin	2 µm	-40 °C	105 ░C	Latch Holder	Brass	4	2 çm	78.7 çin	Male Pin	Glow Wire Compliant Solder Retention	50 VAC	1	Shrouded - 4 Wall	UL94 V-0	Nylon Polyamide (PA)	0.295 in	7.5 mm	0.079 in	2 mm	Square
TE Connectivity Raychem Cable Protection 1-2336678-8	Tin	Surface Mount Right Angle	All	Natural	Board to Cable/Wire	Header	Solder	78.7 µin	2 µm	-40 °C	105 ░C	Latch Holder	Brass	8	2 çm	78.7 çin	Male Pin	Glow Wire Compliant Solder Retention	50 VAC	1	Shrouded - 4 Wall	UL94 V-0	Nylon Polyamide (PA)	0.295 in	7.5 mm	0.079 in	2 mm	Square

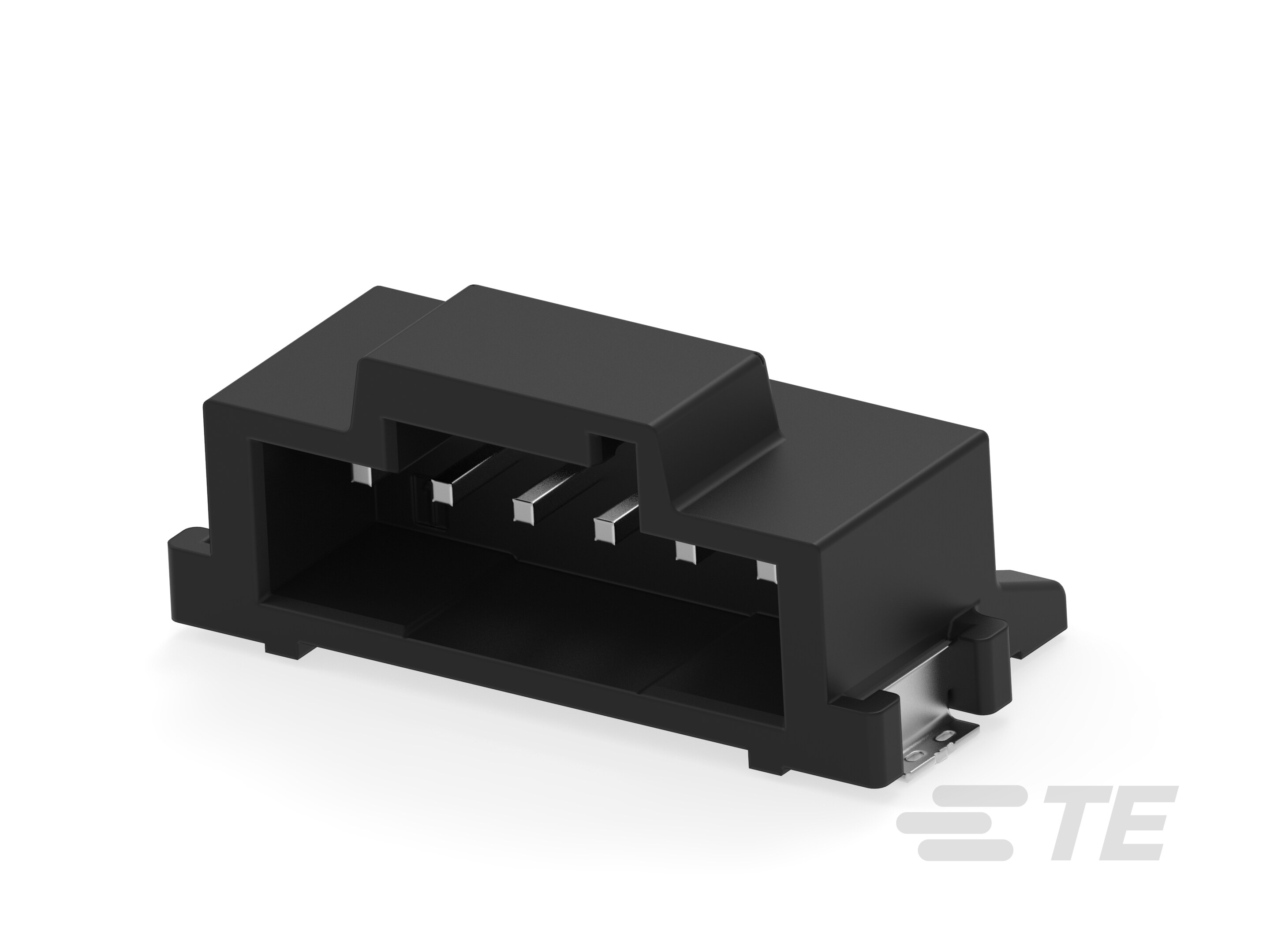

TE Connectivity Raychem Cable Protection 4-2336678-6	Tin	Surface Mount Right Angle	All	Black	Board to Cable/Wire	Header	Solder	78.7 µin	2 µm	-40 °C	105 ░C	Latch Holder	Brass	6	2 çm	78.7 çin	Male Pin	Glow Wire Compliant Solder Retention	50 VAC	1	Shrouded - 4 Wall	UL94 V-0	Nylon Polyamide (PA)	0.295 in	7.5 mm	0.079 in	2 mm	Square

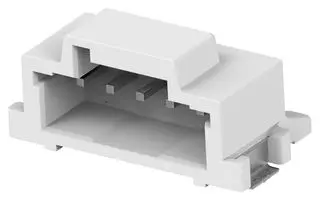

TE Connectivity Raychem Cable Protection 1-2336678-5	Tin	Surface Mount Right Angle	All	Natural	Board to Cable/Wire	Header	Solder	78.7 µin	2 µm	-40 °C	105 ░C	Latch Holder	Brass		2 çm	78.7 çin	Male Pin	Glow Wire Compliant Solder Retention	50 VAC	1	Shrouded - 4 Wall	UL94 V-0	Nylon Polyamide (PA)	0.295 in	7.5 mm	0.079 in	2 mm	Square

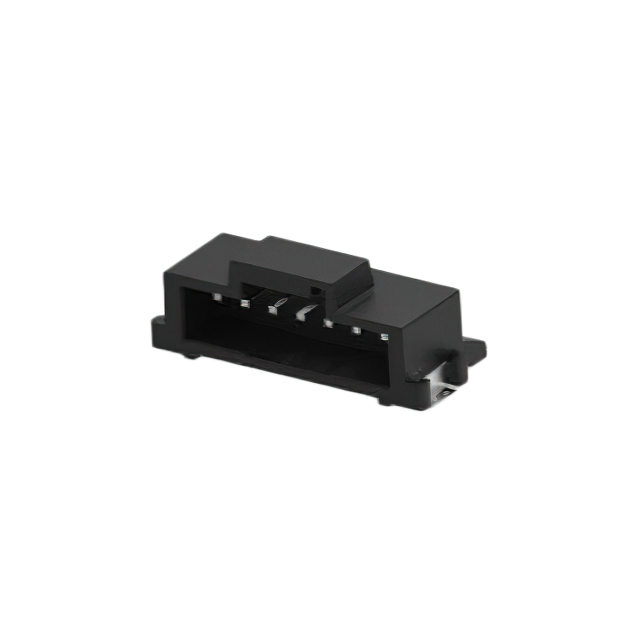

TE Connectivity Raychem Cable Protection 4-2336678-7	Tin	Surface Mount Right Angle	All	Black	Board to Cable/Wire	Header	Solder	78.7 µin	2 µm	-40 °C	105 ░C	Latch Holder	Brass	7	2 çm	78.7 çin	Male Pin	Glow Wire Compliant Solder Retention	50 VAC	1	Shrouded - 4 Wall	UL94 V-0	Nylon Polyamide (PA)	0.295 in	7.5 mm	0.079 in	2 mm	Square
TE Connectivity Raychem Cable Protection 1-2336678-2	Tin	Surface Mount Right Angle	All	Natural	Board to Cable/Wire	Header	Solder	78.7 µin	2 µm	-40 °C	105 ░C	Latch Holder	Brass	2	2 çm	78.7 çin	Male Pin	Glow Wire Compliant Solder Retention	50 VAC	1	Shrouded - 4 Wall	UL94 V-0	Nylon Polyamide (PA)	0.295 in	7.5 mm	0.079 in	2 mm	Square

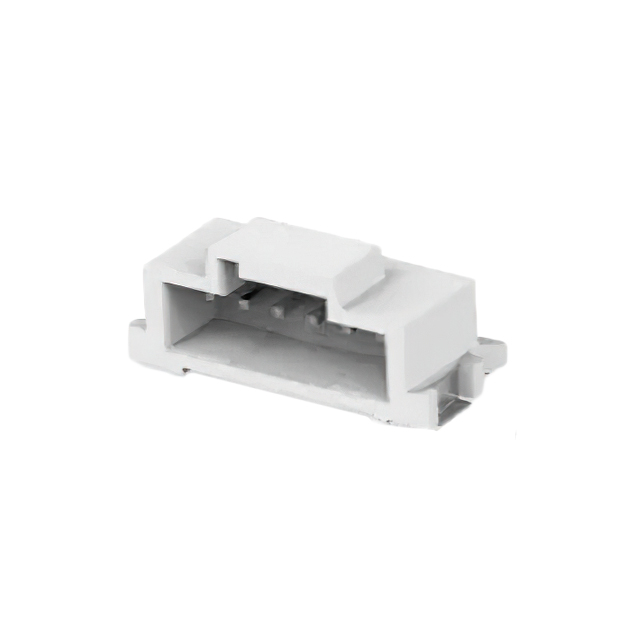

TE Connectivity Raychem Cable Protection 1-2336678-6	Tin	Surface Mount Right Angle	All	Natural	Board to Cable/Wire	Header	Solder	78.7 µin	2 µm	-40 °C	105 ░C	Latch Holder	Brass	6	2 çm	78.7 çin	Male Pin	Glow Wire Compliant Solder Retention	50 VAC	1	Shrouded - 4 Wall	UL94 V-0	Nylon Polyamide (PA)	0.295 in	7.5 mm	0.079 in	2 mm	Square
