S6B-PH-S Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

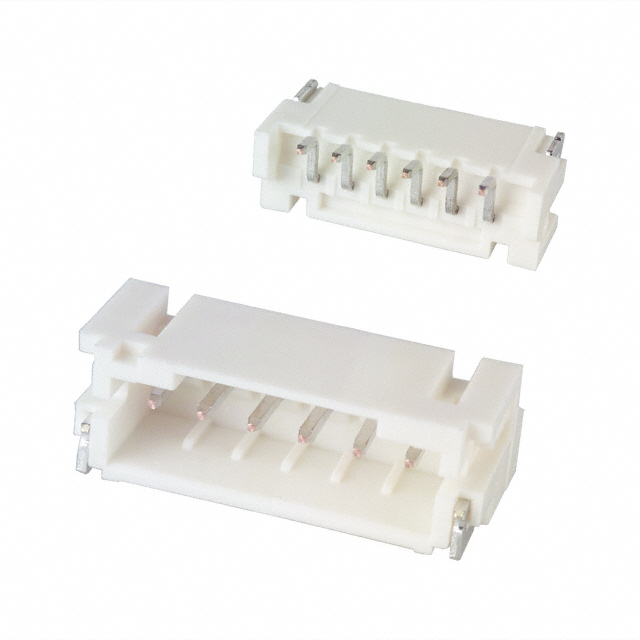

CONN HEADER SMD R/A 6POS 2MM
| Part | Current Rating (Amps) | Number of Rows | Mounting Type | Termination | Connector Type | Shrouding | Insulation Material | Features | Fastening Type | Number of Positions | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Insulation Color | Contact Finish - Post | Material Flammability Rating | Contact Type | Contact Material | Style | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 2 A | 1 | Right Angle Surface Mount | Solder | Header | Shrouded - 4 Wall | Nylon 6T Polyamide (PA6T) | Solder Retention | Detent Lock | 6 | 0.13 in | 3.3 mm | All | 85 °C | -25 °C | Square | Natural | Tin | UL94 V-0 | Male Pin | Copper Alloy | Board to Cable/Wire | 0.079 " | 2 mm | 0.217 in | 5.51 mm | 100 V |
