83556 Series
Manufacturer: Belden Inc.
Beta
⌘K

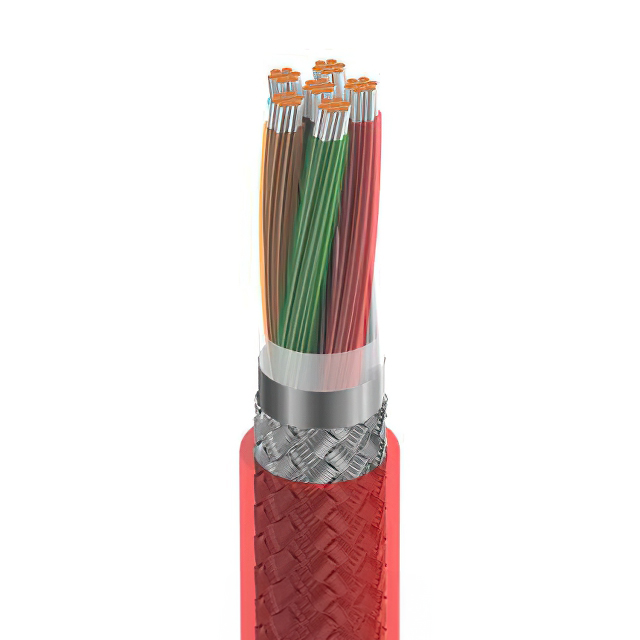

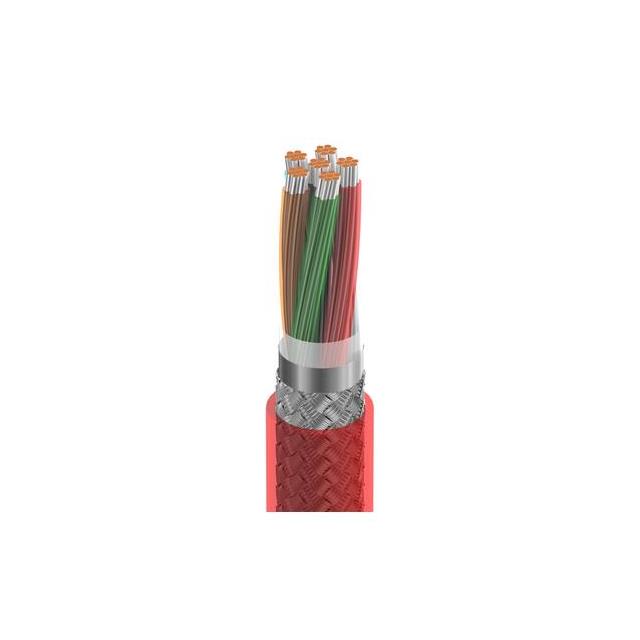

CABLE 6COND 22AWG RED SHLD
| Part | Shield Material | Shield Coverage | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Cable Type | Usage | Voltage | Conductor Insulation | Conductor Material | Jacket (Insulation) Material | Length | Length | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 22 AWG | 30 AWG | 7 | UL Style CMP | Multi-Conductor | Audio Control Instrumentation | 300 VDC | Fluorinated Ethylene-Propylene (FEP) | Copper Tinned | Fluorinated Ethylene-Propylene (FEP) Plenum | 304.8 m | 1000 ft | 6 | 0.014 in | 0.356 mm | Braid Foil | Red | -70 °C | 200 °C | 0.183 in | 4.65 mm | ||
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 22 AWG | 30 AWG | 7 | UL Style CMP | Multi-Conductor | Audio Control Instrumentation | 300 VDC | Fluorinated Ethylene-Propylene (FEP) | Copper Tinned | Fluorinated Ethylene-Propylene (FEP) Plenum | 152.4 m | 500 ft | 6 | 0.014 in | 0.356 mm | Braid Foil | Red | -70 °C | 200 °C | 0.183 in | 4.65 mm | ||
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 22 AWG | 30 AWG | 7 | UL Style CMP | Multi-Conductor | Audio Control Instrumentation | 300 VDC | Fluorinated Ethylene-Propylene (FEP) | Copper Tinned | Fluorinated Ethylene-Propylene (FEP) Plenum | 6 | 0.014 in | 0.356 mm | Braid Foil | Red | -70 °C | 200 °C | 0.183 in | 4.65 mm | 100 ft | 30.5 m |
