HBG-60 Series

Catalog

LED DRIVER CC AC/DC 28-43V 1.4A

Part	Mounting Type	Current - Output (Max) [Max]	Efficiency	Features	Termination Style	Type	Topology	Number of Outputs	Power (Watts)	Voltage - Output [Max]	Voltage - Output [Min]	Approval Agency	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]

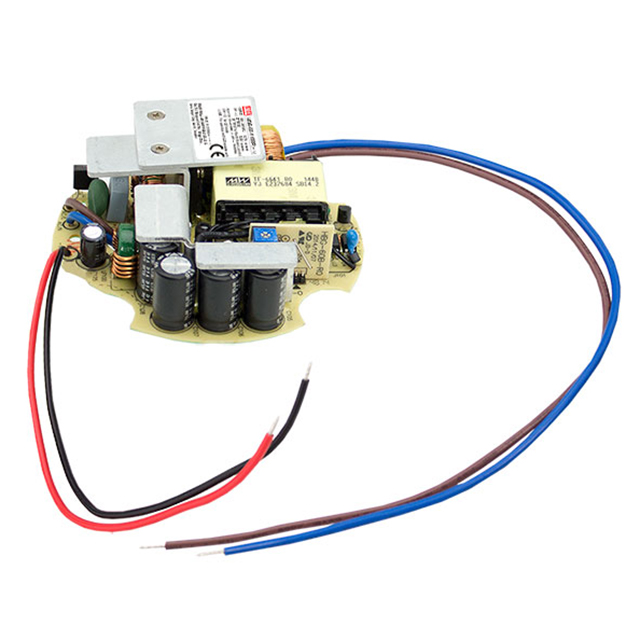

MEAN WELL USA Inc. HBG-60-1400P	Chassis Mount	1.4 A	89 %	OCP OTP	Wire Leads	Constant Current	AC DC Converter	1	60 W	43 V	28 V	CB CCC CE cURus ENEC	295 VAC	90 VAC	-40 C	75 ░C	3750 VDC
MEAN WELL USA Inc. HBG-60-2100P	Chassis Mount	2.1 A	89 %	OCP OTP	Wire Leads	Constant Current	AC DC Converter	1	61 W	29 V	12 V	CB CCC CE cURus ENEC	295 VAC	90 VAC	-40 C	75 ░C	3750 VDC

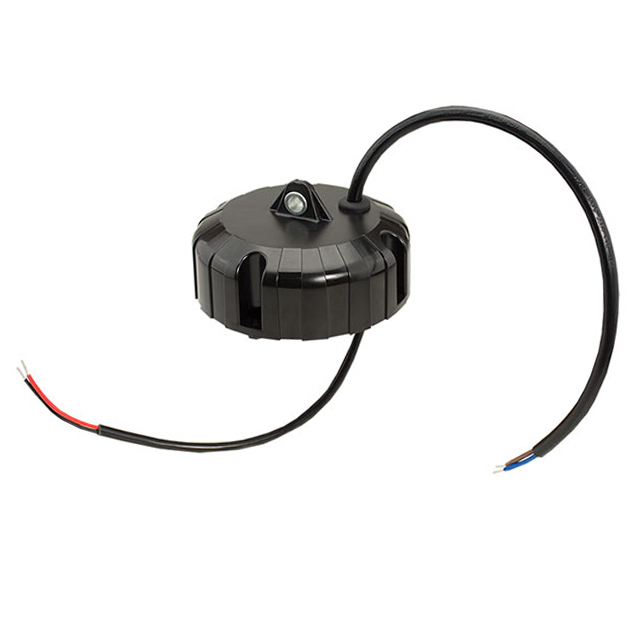

MEAN WELL USA Inc. HBG-60-1400	Chassis Mount	1.4 A	89 %	OCP OTP	Wire Leads	Constant Current	AC DC Converter	1	60 W	43 V	28 V	CB CCC CE cURus ENEC	295 VAC	90 VAC	-40 C	85 °C	3750 VDC	57.5 mm	2.26 in	4.33 in	110 mm
MEAN WELL USA Inc. HBG-60-1050P	Chassis Mount	1.05 A	90 %	OCP OTP	Wire Leads	Constant Current	AC DC Converter	1		55 V	37 V	CB CCC CE cURus ENEC	295 VAC	90 VAC	-40 C	75 ░C	3750 VDC
MEAN WELL USA Inc. HBG-60-2100	Chassis Mount	2.1 A	89 %	OCP OTP	Wire Leads	Constant Current	AC DC Converter	1	61 W	29 V	12 V	CB CCC CE cURus ENEC	295 VAC	90 VAC	-40 C	85 °C	3750 VDC	57.5 mm	2.26 in	4.33 in	110 mm
