1546817 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

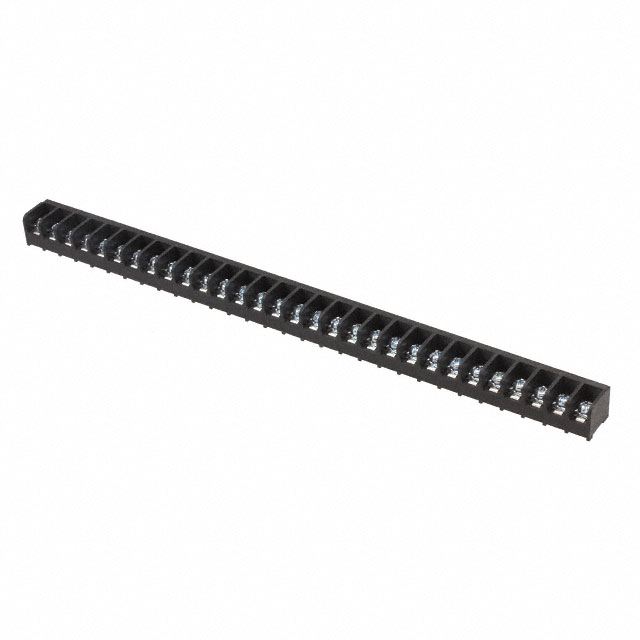

6PCR-30-006=#6 TRIBARRIER
| Part | Top Termination | Number of Rows | Terminal Screw Finish | Number of Circuits | Number of Wire Entries | Voltage Rating | Mounting Type | Bottom Termination | Terminal Screw Material | Material Flammability Rating | Pitch [x] | Pitch [x] | Barrier Type | Material - Insulation | Terminal Block Type | Color | Operating Temperature | Wire Gauge [Min] | Wire Gauge [Max] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Screws with Captive Plate | 1 | Clear Chromate Zinc | 30 | 30 | 300 VDC | Through Hole | PC Pin | Steel | UL94 V-0 | 9.53 mm | 0.375 in | 3 Wall (Tri) | Thermoplastic | Barrier Block | Black | 105 C | 12 AWG | 22 AWG | 25 A |
