MX34012U Series
Manufacturer: JAE Electronics
Beta
⌘K

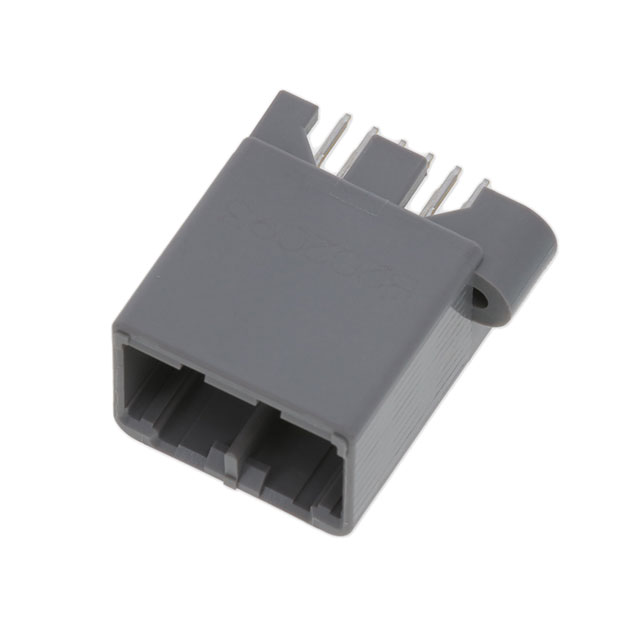

CONN HEADER VERT 12POS 2.2MM
| Part | Applications | Contact Type | Number of Rows [custom] | Features | Connector Type | Insulation Material | Style | Contact Length - Post [x] | Contact Length - Post [x] | Fastening Type | Shrouding | Number of Positions | Contact Shape | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Contact Material | Termination | Mounting Type | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Insulation Height [z] | Insulation Height [z] | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Male Pin | 2 | Mounting Flange | Header | Glass Filled Syndiotactic Polystyrene (SPS) | Board to Cable/Wire | 0.126 " | 3.2 mm | Locking Ramp | Shrouded - 4 Wall | 12 | Square | 0.303 in | 7.7 mm | 85 °C | -40 C | Tin | 0.118 in | 3 mm | Gray | Brass | Solder | Through Hole | 0.087 in | 2.2 mm | 3 A | 0.925 in | 23.5 mm | All |
