OSTTE06 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 6POS SIDE ENT 3.5MM PCB
| Part | Contact Material - Plating | Clamp Material - Plating [custom] | Housing Material | Screw Thread | Torque - Screw | Torque - Screw | Operating Temperature [Min] | Operating Temperature [Max] | Screw Material - Plating | Wire Gauge [Max] | Wire Gauge [Min] | Features | Wire Termination | Positions Per Level | Mating Orientation | Mounting Type | Current | Voltage | Number of Levels | Color | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

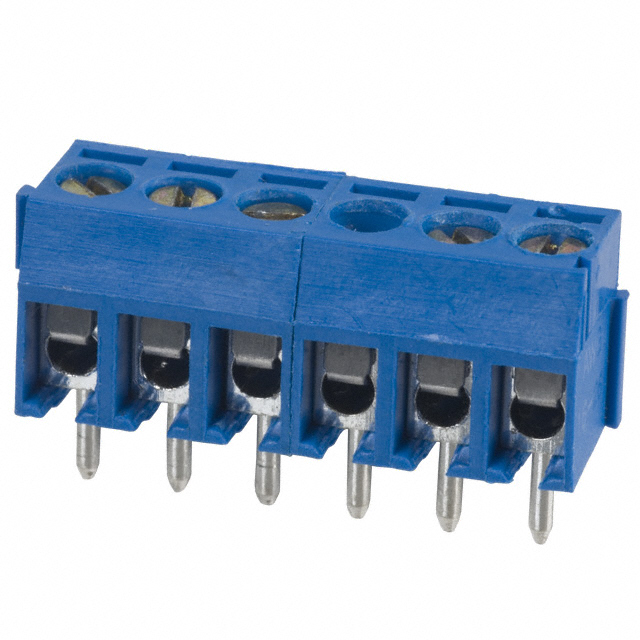

 On Shore Technology Inc. | Brass - Tin Plated | Stainless Steel | Thermoplastic | M2 | 1.7 Lb-In | 0.2 Nm | -30 ░C | 105 ░C | Steel - Zinc Plated | 26 AWG | 16 AWG | Interlocking (Side) | Screw - Leaf Spring Wire Guard | 6 | Horizontal with Board | Through Hole | 10 A | 125 V | 1 | Blue | 3.5 mm | 0.138 " |

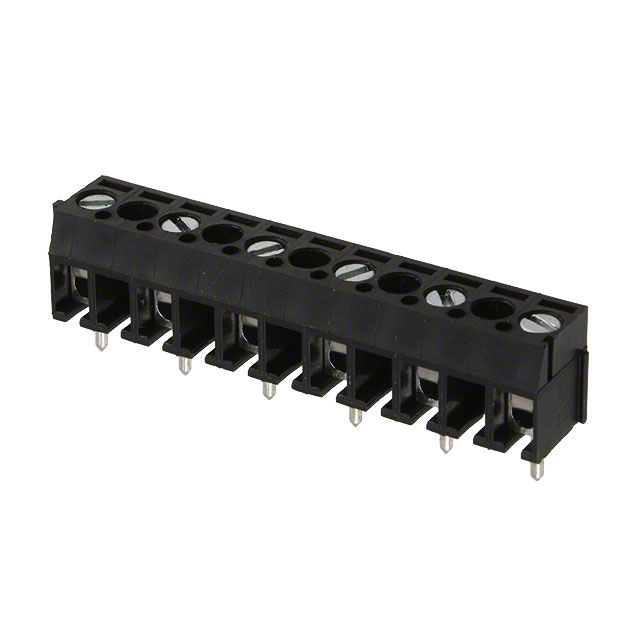

 On Shore Technology Inc. | Brass - Tin Plated | Stainless Steel | M2 | 1.7 Lb-In | 0.2 Nm | -40 C | 115 °C | Steel - Zinc Plated | 26 AWG | 16 AWG | Interlocking (Side) | Screw - Leaf Spring Wire Guard | 6 | Horizontal with Board | Through Hole | 10 A | 125 V | 1 | 7 mm | 0.276 in |
