392-080 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 80POS 0.100

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination Rows	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material - Insulation	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows	Gender	Card Type	Mounting Type	Read Out	Color	Contact Finish	Features

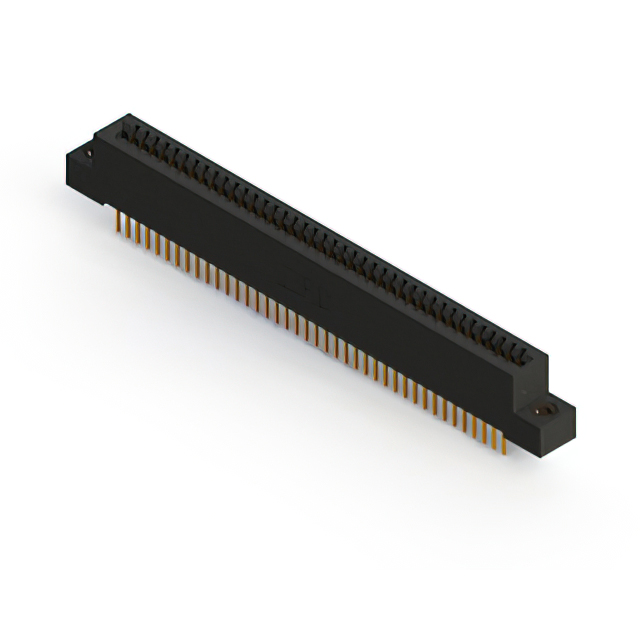

EDAC Inc. 392-080-523-203	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	10 Áin	0.25 Ám	Copper Alloy	40	-40 °C	105 ░C	Solder	Polyester Thermoplastic	0.116 in	Floating Bobbin Flush Mount	2.95 mm	2.54 mm	0.1 in	80	2	Female	Non Specified - Dual Edge	Through Hole	Dual	Black	Gold

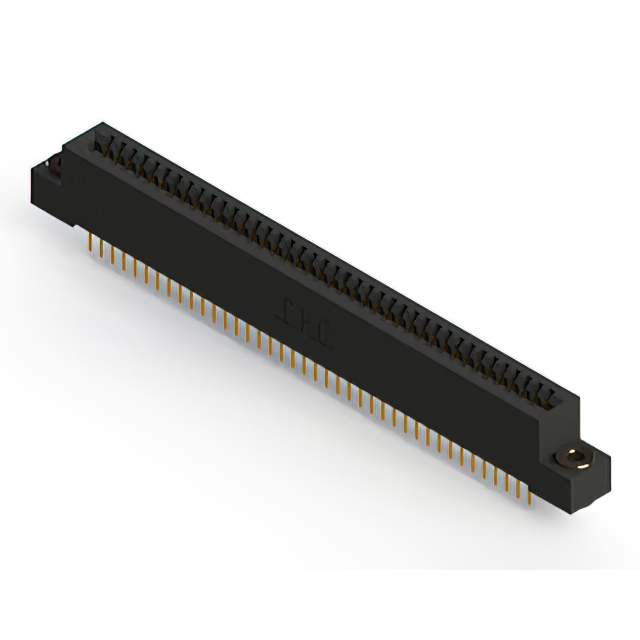

EDAC Inc. 392-080-524-203	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	10 Áin	0.25 Ám	Copper Alloy	40	-40 °C	105 ░C	Solder	Polyester Thermoplastic	0.116 in	Floating Bobbin Flush Mount	2.95 mm	2.54 mm	0.1 in	80	2	Female	Non Specified - Dual Edge	Through Hole	Dual	Black	Gold
EDAC Inc. 392-080-520-208	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	10 Áin	0.25 Ám	Copper Alloy	40	-40 °C	105 ░C	Solder	Polyester Thermoplastic		4-40 Flush Mount Threaded Insert Top Opening		2.54 mm	0.1 in	80	2	Female	Non Specified - Dual Edge	Through Hole	Dual	Black	Gold
EDAC Inc. 392-080-541-207	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	10 Áin	0.25 Ám	Copper Alloy	40	-40 °C	105 ░C	Wire Wrap	Polyester Thermoplastic		Flush Mount M3 Threaded Insert Top Opening		2.54 mm	0.1 in	80	2	Female	Non Specified - Dual Edge	Through Hole	Dual	Black	Gold
EDAC Inc. 392-080-555-202	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	10 Áin	0.25 Ám	Copper Alloy	40	-40 °C	105 ░C	Solder Eyelet(s)	Polyester Thermoplastic	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	2.54 mm	0.1 in	80	2	Female	Non Specified - Dual Edge	Board Edge Straddle Mount	Dual	Black	Gold	Card Extender

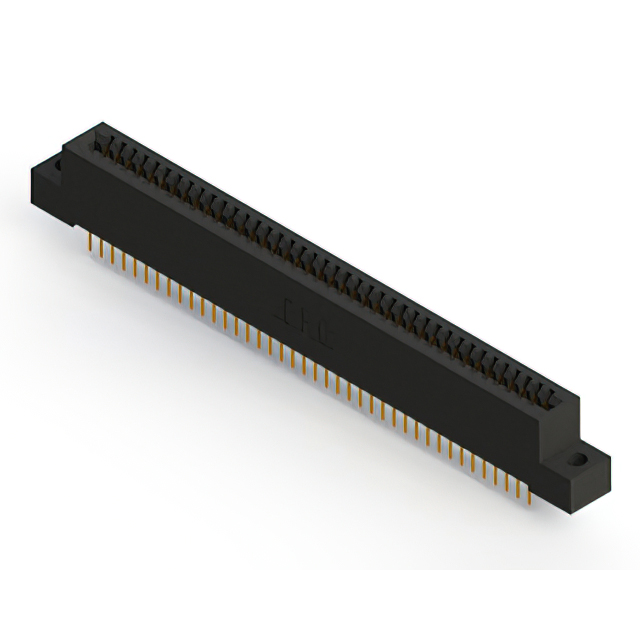

EDAC Inc. 392-080-524-204	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	10 Áin	0.25 Ám	Copper Alloy	40	-40 °C	105 ░C	Solder	Polyester Thermoplastic	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	2.54 mm	0.1 in	80	2	Female	Non Specified - Dual Edge	Through Hole	Dual	Black	Gold

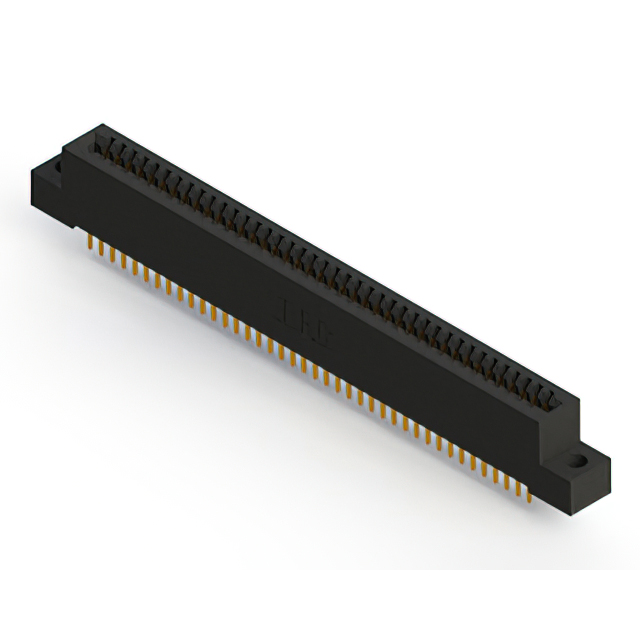

EDAC Inc. 392-080-521-204	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	10 Áin	0.25 Ám	Copper Alloy	40	-40 °C	105 ░C	Solder	Polyester Thermoplastic	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	2.54 mm	0.1 in	80	2	Female	Non Specified - Dual Edge	Through Hole	Dual	Black	Gold
EDAC Inc. 392-080-544-208	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	10 Áin	0.25 Ám	Copper Alloy	40	-40 °C	105 ░C	Wire Wrap	Polyester Thermoplastic		4-40 Flush Mount Threaded Insert Top Opening		2.54 mm	0.1 in	80	2	Female	Non Specified - Dual Edge	Through Hole	Dual	Black	Gold
EDAC Inc. 392-080-541-208	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	10 Áin	0.25 Ám	Copper Alloy	40	-40 °C	105 ░C	Wire Wrap	Polyester Thermoplastic		4-40 Flush Mount Threaded Insert Top Opening		2.54 mm	0.1 in	80	2	Female	Non Specified - Dual Edge	Through Hole	Dual	Black	Gold
EDAC Inc. 392-080-523-207	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	10 Áin	0.25 Ám	Copper Alloy	40	-40 °C	105 ░C	Solder	Polyester Thermoplastic		Flush Mount M3 Threaded Insert Top Opening		2.54 mm	0.1 in	80	2	Female	Non Specified - Dual Edge	Through Hole	Dual	Black	Gold
