456 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

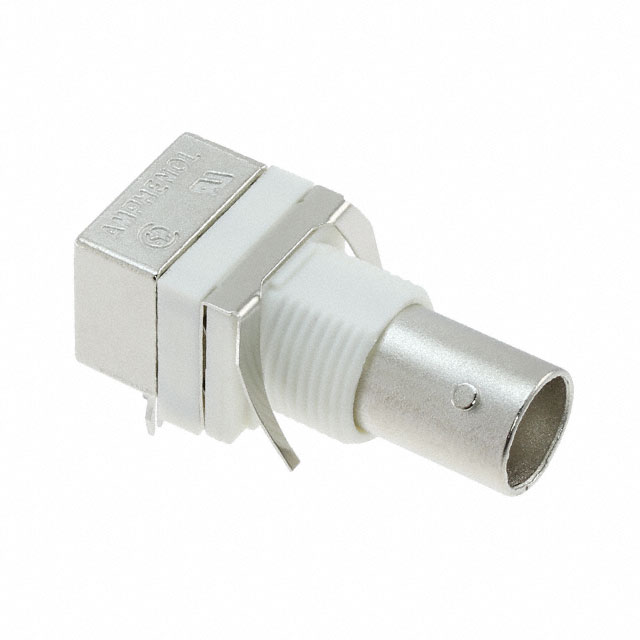

CONN BNC JACK STRAIGHT
| Part | Body Material | Body Finish | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Mounting Feature | Fastening Type | Mounting Type | Connector Type | Shield Termination | Connector Style | Number of Ports | Impedance | Center Contact Material | Features | Contact Termination | Housing Color | Includes | Mating Cycles | Dielectric Material | Adapter Type | Center Gender | Conversion Type | Style | Convert From (Adapter End) | Convert To (Adapter End) | Adapter Series | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | |||||||||||||||||||||||||||||
Amphenol ICC (Commercial Products) | |||||||||||||||||||||||||||||
 Amphenol ICC (Commercial Products) | Zinc Die Cast | Nickel | Gold | 85 °C | -20 ░C | 200 V | Bulkhead - Front Side Nut | Bayonet Lock | Panel Mount Right Angle Through Hole | Female Socket Jack | Solder | BNC | 1 | 50 Ohms | Phosphor Bronze | Board Lock Filter | Solder | Silver | |||||||||||
Amphenol ICC (Commercial Products) | Nickel | Gold | Bulkhead | Bayonet Lock | Panel Mount | 75 Ohms | Phosphor Bronze | Filter | 1 Connector 1 Lockwasher 1 Nut | 500 | Thermoplastic | Jack to Jack | Female to Female | Same Series | Straight | BNC Jack Female Socket | BNC Jack Female Socket | BNC to BNC | |||||||||||
Amphenol ICC (Commercial Products) | |||||||||||||||||||||||||||||
Amphenol ICC (Commercial Products) | Nickel | Gold | 85 °C | -20 ░C | 200 V | Bulkhead - Front Side Nut | Bayonet Lock | Panel Mount | Female Socket Jack | Crimp | BNC | 1 | 75 Ohms | Crimp | Silver | Thermoplastic | RG-179 | ||||||||||||
Amphenol ICC (Commercial Products) | Zinc Die Cast | Nickel | Tin | 85 °C | -20 ░C | 200 V | Bulkhead - Front Side Nut | Bayonet Lock | Panel Mount Right Angle Through Hole | Female Socket Jack | Solder | BNC | 1 | 50 Ohms | Copper Alloy | Board Lock | Solder | Silver | 500 | Polyester | |||||||||
Amphenol ICC (Commercial Products) | Zinc Die Cast | Nickel | Gold | 85 °C | -20 ░C | 200 V | Bulkhead - Front Side Nut | Bayonet Lock | Panel Mount Right Angle Through Hole | Female Socket Jack | Solder | BNC | 1 | 75 Ohms | Phosphor Bronze | Board Lock Filter | Solder | Silver | Thermoplastic | ||||||||||
Amphenol ICC (Commercial Products) | Brass | Nickel | Gold | 85 °C | -20 ░C | 200 V | Bulkhead - Rear Side Nut | Bayonet Lock | Panel Mount | Female Socket Jack | Solder Tag | BNC | 1 | 75 Ohms | Phosphor Bronze | Filter | Solder Cup | Silver | Polytetrafluoroethylene (PTFE) | ||||||||||
Amphenol ICC (Commercial Products) | Zinc Die Cast | Nickel | Gold | 85 °C | -20 ░C | Bulkhead | Bayonet Lock | Panel Mount | 50 Ohms | Phosphor Bronze | Filter | 1 Connector 1 Lockwasher 1 Nut | Jack to Jack | Female to Female | Same Series | Straight | BNC Jack Female Socket | BNC Jack Female Socket | BNC to BNC |
