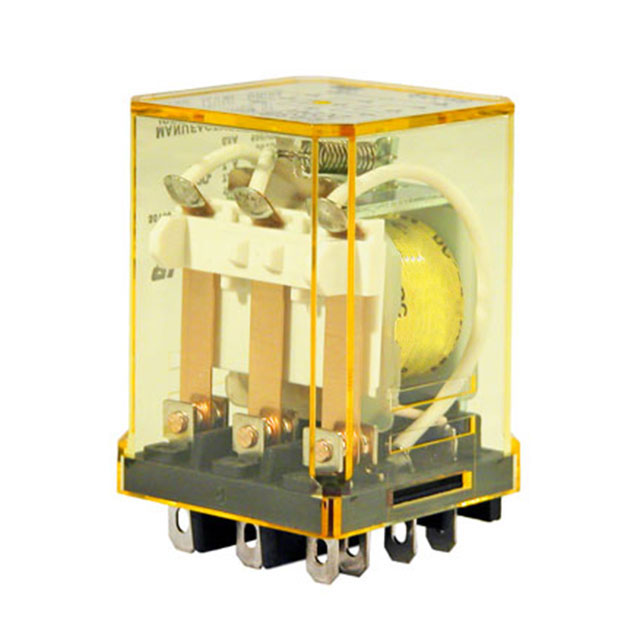

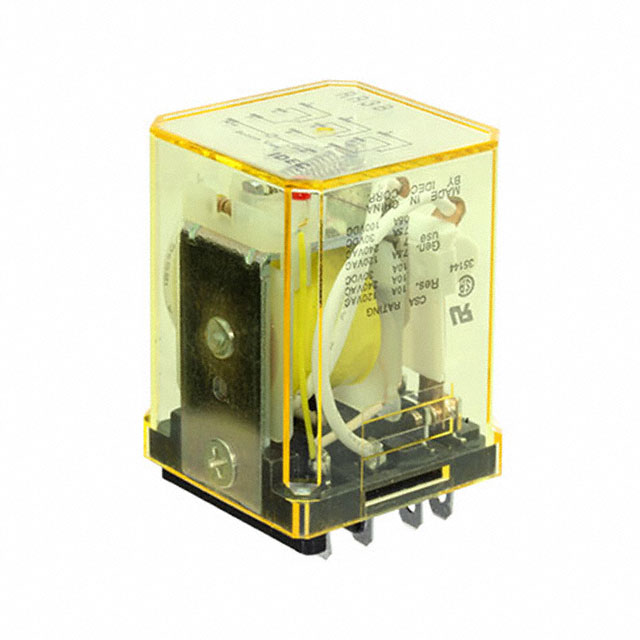

RR3B-U Series
Manufacturer: IDEC
Beta
⌘K
RELAY PLUG-IN 3PDT 10A 6VAC ROHS COMPLIANT: YES
| Part | Coil Resistance | Approval Agency | Termination Style | Termination Style | Coil Type | Must Release Voltage | Mounting Type | Contact Rating (Current) | Relay Type | Contact Material | Contact Form | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Load - Max Switching | Coil Voltage | Coil Current | Must Operate Voltage | Release Time | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 4.9 Ohms | CE CSA cURus TUV | 0.187 in 4.7 mm | Plug In Quick Connect | Non Latching | 1.8 VAC | Socketable | 10 A | General Purpose | Silver (Ag) | 3PDT (3 Form C) | 30 VDC 240 VAC | -25 °C | 40 °C | 25 ms | 300 W 2400 VA | 6 VAC | 420 mA | 4.8 VAC/DC | 25 ms | |
 IDEC | 8.46 kOhms | CE CSA cURus TUV | Quick Connect | Non Latching | 11 VDC | Chassis Mount | 10 A | General Purpose | Silver (Ag) | 3PDT (3 Form C) | 30 VDC 240 VAC | -25 °C | 40 °C | 25 ms | 300 W 2400 VA | 110 VDC | 13 mA | 88 VDC | 25 ms | Lighted Indicator | |
IDEC | 18 Ohms | CE CSA cURus TUV | 0.187 in 4.7 mm | Plug In Quick Connect | Non Latching | 3.6 VAC | Socketable | 10 A | General Purpose | Silver (Ag) | 3PDT (3 Form C) | 30 VDC 240 VAC | -25 °C | 40 °C | 25 ms | 300 W 2400 VA | 12 VAC | 210 mA | 9.6 VAC/DC | 25 ms | Lighted Indicator Test Button |
 IDEC | 16 kOhms | CE CSA cURus TUV | 0.187 in 4.7 mm | Plug In Quick Connect | Non Latching | 60 VAC/DC | Socketable | 10 A | General Purpose | Silver (Ag) | 3PDT (3 Form C) | 30 VDC 240 VAC | -25 °C | 40 °C | 25 ms | 300 W 2400 VA | 200 VAC | 160 VAC | 25 ms | ||
IDEC | 25 Ohms | CE CSA cURus TUV | 0.187 in 4.7 mm | Plug In Quick Connect | Non Latching | 0.6 VDC | Socketable | 10 A | General Purpose | Silver (Ag) | 3PDT (3 Form C) | 30 VDC 240 VAC | -25 °C | 40 °C | 25 ms | 300 W 2400 VA | 240 mA | 4.8 VDC | 25 ms | Lighted Indicator | |
IDEC | 1.6 kOhms | CE CSA cURus TUV | Quick Connect | Non Latching | 4.8 VDC | Chassis Mount | 10 A | General Purpose | Silver (Ag) | 3PDT (3 Form C) | 30 VDC 240 VAC | -25 °C | 40 °C | 25 ms | 300 W 2400 VA | 48 VDC | 0.03 A | 38.4 VDC | 25 ms | ||
IDEC | 18 Ohms | CE CSA cURus TUV | 0.187 in 4.7 mm | Plug In Quick Connect | Non Latching | 3.6 VAC | Socketable | 10 A | General Purpose | Silver (Ag) | 3PDT (3 Form C) | 30 VDC 240 VAC | -25 °C | 40 °C | 25 ms | 300 W 2400 VA | 12 VAC | 210 mA | 9.6 VAC/DC | 25 ms | Lighted Indicator |
 IDEC | 79 Ohms | CE CSA cURus TUV | Quick Connect | Non Latching | 7.2 VAC | Chassis Mount | 10 A | General Purpose | Silver (Ag) | 3PDT (3 Form C) | 30 VDC 240 VAC | -25 °C | 40 °C | 25 ms | 300 W 2400 VA | 24 VAC | 105 mA | 19.2 VAC | 25 ms | ||
IDEC | 18 Ohms | CE CSA cURus TUV | 0.187 in 4.7 mm | Plug In Quick Connect | Non Latching | 3.6 VAC | Socketable | 10 A | General Purpose | Silver (Ag) | 3PDT (3 Form C) | 30 VDC 240 VAC | -25 °C | 40 °C | 25 ms | 300 W 2400 VA | 12 VAC | 210 mA | 9.6 VAC/DC | 25 ms | |
IDEC | 8.46 kOhms | CE CSA cURus TUV | Quick Connect | Non Latching | 11 VDC | Chassis Mount | 10 A | General Purpose | Silver (Ag) | 3PDT (3 Form C) | 30 VDC 240 VAC | -25 °C | 40 °C | 25 ms | 300 W 2400 VA | 110 VDC | 13 mA | 88 VDC | 25 ms |
