TR9CG4000 Series

Catalog

AC/DC DESKTOP ADAPTER 15V 60W

Part	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	Approval Agency	Voltage - Output	No Load Power Consumption	Output Connector [diameter]	Output Connector	Output Connector [x]	Polarization	Cord Length	Cord Length	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized	Standard Number	Input Connector	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Applications	Current - Output (Max) [Max]	Form

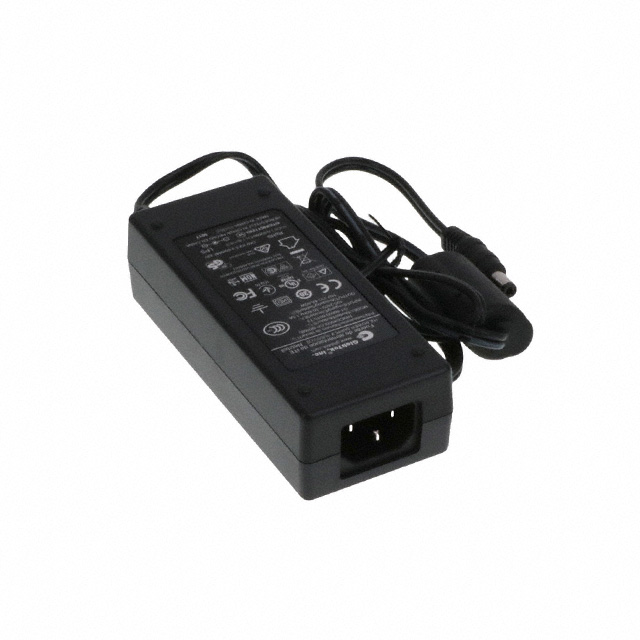

GlobTek, Inc. TR9CG4000LCP-N(R6B)	60 W	264 VAC	90 VAC	Cord (Sold Separately)	BSI BSMI CB CCC CE cULus EAC FCC GS LPS NOM PSE RCM UkrSEPRO VCCI	15 V	150 mW	2.5 mm 5.5 mm	Barrel Plug	11 mm	Positive Center	1.2 m	47.2 in	40 °C	0 °C	International	60335-1 60950-1	IEC 320-C14	Level VI	1.3 in	121 mm	4.76 "	2.05 in	33 mm	52 mm	Household Appliances ITE (Commercial)	4 A	Desktop (Class I)
