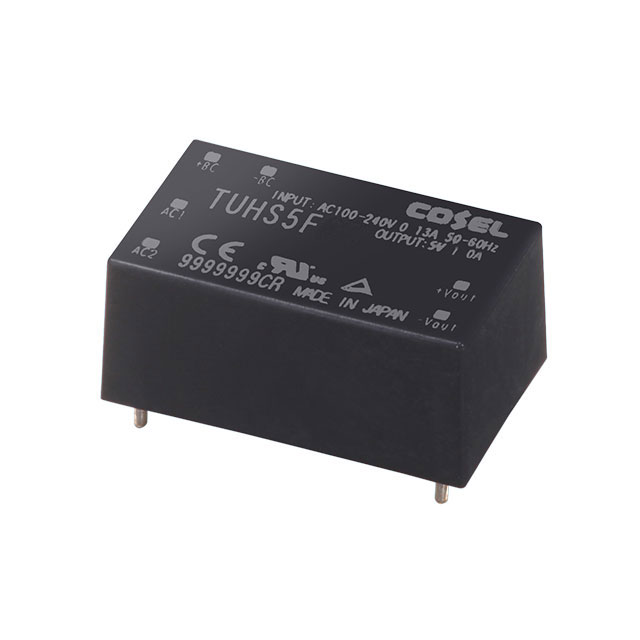

TUHS5 Series

Catalog

POWER SUPPLY, AC-DC, 5V, 1A ROHS COMPLIANT: YES

Part	Load Regulation	Line Regulation	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Efficiency	Power (Watts)	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Features	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Type	Applications	Voltage - Output 1	Approval Agency
Cosel USA, Inc. TUHS5F05	40 mV	20 mV	85 VAC 120 VDC	264 VAC 370 VDC	1 A	79 %	5 W	Through Hole	0.5 in	17.5 mm	0.69 "	28.7 mm	1.13 "	12.7 mm	1	Universal Input	-40 °C	85 °C	6-DIP Module	Enclosed	ITE (Commercial)	5 V	CE cURus
Cosel USA, Inc. TUHS5F24	150 mV	96 mV	85 VAC 120 VDC	264 VAC 370 VDC	220 mA	83 %	5 W	Through Hole	0.5 in	17.5 mm	0.69 "	28.7 mm	1.13 "	12.7 mm	1	Universal Input	-40 °C	85 °C	6-DIP Module	Enclosed	ITE (Commercial)	24 V	CE cURus
Cosel USA, Inc. TUHS5F12	100 mV	48 mV	85 VAC 120 VDC	264 VAC 370 VDC	450 mA		5 W	Through Hole	0.5 in	17.5 mm	0.69 "	28.7 mm	1.13 "	12.7 mm	1	Universal Input	-40 °C	85 °C	6-DIP Module	Enclosed	ITE (Commercial)	12 V	CE cURus
Cosel USA, Inc. TUHS5F15	120 mV	60 mV	85 VAC 120 VDC	264 VAC 370 VDC	340 mA		5.1 W	Through Hole	0.5 in	17.5 mm	0.69 "	28.7 mm	1.13 "	12.7 mm	1	Universal Input	-40 °C	85 °C	6-DIP Module	Enclosed	ITE (Commercial)	15 V	CE cURus
