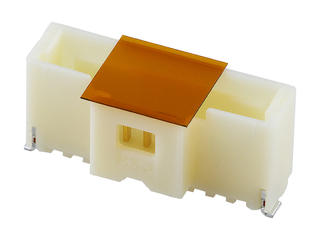

1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Vertical, Surface Mount, 0.38µm Gold Plated, Inner Positive Lock, 13 Circuits, Natural
1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Vertical, Surface Mount, 0.38µm Gold Plated, Inner Positive Lock, 13 Circuits, Natural
1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Vertical, Surface Mount, 0.38µm Gold Plated, Inner Positive Lock, 13 Circuits, Natural
| Part | Fastening Type | Termination | Mounting Type | Applications | Pitch - Mating | Pitch - Mating | Features | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Voltage Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Shrouding | Contact Shape | Contact Finish - Mating | Insulation Material | Style | Insulation Height | Insulation Height [z] | Number of Rows | Insulation Color | Contact Finish - Post | Connector Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Friction Lock | Solder | Surface Mount | Automotive General Purpose Industrial Medical | 0.039 in | 1 mm | Pick and Place Solder Retention | All | 15 µin | 0.38 µm | Male Pin | Varies by Wire Gauge | -40 °C | 105 ░C | Phosphor Bronze | 50 V | 3.94 Áin | 0.1 Ám | UL94 V-0 | Shrouded - 4 Wall | Rectangular | Gold | Nylon Polyamide (PA) | Board to Cable/Wire | 5.4 mm | 0.213 in | 1 | Natural | Gold | Header | |
 Molex | Friction Lock | Solder | Surface Mount | Automotive General Purpose Industrial Medical | 0.039 in | 1 mm | Pick and Place Solder Retention | All | 15 µin | 0.38 µm | Male Pin | Varies by Wire Gauge | -40 °C | 105 ░C | Phosphor Bronze | 50 V | 3.94 Áin | 0.1 Ám | UL94 V-0 | Shrouded - 4 Wall | Rectangular | Gold | Nylon Polyamide (PA) | Board to Cable/Wire | 5.4 mm | 0.213 in | 1 | Natural | Gold | Header | 10 |
 Molex | Friction Lock | Solder | Surface Mount | Automotive General Purpose Industrial Medical | 0.039 in | 1 mm | Pick and Place Solder Retention | All | 15 µin | 0.38 µm | Male Pin | Varies by Wire Gauge | -40 °C | 105 ░C | Phosphor Bronze | 50 V | 3.94 Áin | 0.1 Ám | UL94 V-0 | Shrouded - 4 Wall | Rectangular | Gold | Nylon Polyamide (PA) | Board to Cable/Wire | 5.4 mm | 0.213 in | 1 | Natural | Gold | Header | 4 |
 Molex | Friction Lock | Solder | Surface Mount | Automotive General Purpose Industrial Medical | 0.039 in | 1 mm | Pick and Place Solder Retention | All | 15 µin | 0.38 µm | Male Pin | Varies by Wire Gauge | -40 °C | 105 ░C | Phosphor Bronze | 50 V | 3.94 Áin | 0.1 Ám | UL94 V-0 | Shrouded - 4 Wall | Rectangular | Gold | Nylon Polyamide (PA) | Board to Cable/Wire | 5.4 mm | 0.213 in | 1 | Natural | Gold | Header | 6 |
 Molex | Friction Lock | Solder | Surface Mount | Automotive General Purpose Industrial Medical | 0.039 in | 1 mm | Pick and Place Solder Retention | All | 15 µin | 0.38 µm | Male Pin | Varies by Wire Gauge | -40 °C | 105 ░C | Phosphor Bronze | 50 V | 3.94 Áin | 0.1 Ám | UL94 V-0 | Shrouded - 4 Wall | Rectangular | Gold | Nylon Polyamide (PA) | Board to Cable/Wire | 5.4 mm | 0.213 in | 1 | Natural | Gold | Header | 12 |
 Molex | Friction Lock | Solder | Surface Mount | Automotive General Purpose Industrial Medical | 0.039 in | 1 mm | Pick and Place Solder Retention | All | 15 µin | 0.38 µm | Male Pin | Varies by Wire Gauge | -40 °C | 105 ░C | Phosphor Bronze | 50 V | 3.94 Áin | 0.1 Ám | UL94 V-0 | Shrouded - 4 Wall | Rectangular | Gold | Nylon Polyamide (PA) | Board to Cable/Wire | 5.4 mm | 0.213 in | 1 | Natural | Gold | Header | 2 |
Molex | Friction Lock | Solder | Surface Mount | Automotive General Purpose Industrial Medical | 0.039 in | 1 mm | Pick and Place Solder Retention | All | 15 µin | 0.38 µm | Male Pin | Varies by Wire Gauge | -40 °C | 105 ░C | Phosphor Bronze | 50 V | 3.94 Áin | 0.1 Ám | UL94 V-0 | Shrouded - 4 Wall | Rectangular | Gold | Nylon Polyamide (PA) | Board to Cable/Wire | 5.4 mm | 0.213 in | 1 | Natural | Gold | Header | 8 |
 Molex | Friction Lock | Solder | Surface Mount | Automotive General Purpose Industrial Medical | 0.039 in | 1 mm | Pick and Place Solder Retention | All | 15 µin | 0.38 µm | Male Pin | Varies by Wire Gauge | -40 °C | 105 ░C | Phosphor Bronze | 50 V | 3.94 Áin | 0.1 Ám | UL94 V-0 | Shrouded - 4 Wall | Rectangular | Gold | Nylon Polyamide (PA) | Board to Cable/Wire | 5.4 mm | 0.213 in | 1 | Natural | Gold | Header | 13 |
 Molex | Friction Lock | Solder | Surface Mount | Automotive General Purpose Industrial Medical | 0.039 in | 1 mm | Pick and Place Solder Retention | All | 15 µin | 0.38 µm | Male Pin | Varies by Wire Gauge | -40 °C | 105 ░C | Phosphor Bronze | 50 V | 3.94 Áin | 0.1 Ám | UL94 V-0 | Shrouded - 4 Wall | Rectangular | Gold | Nylon Polyamide (PA) | Board to Cable/Wire | 5.4 mm | 0.213 in | 1 | Natural | Gold | Header |
