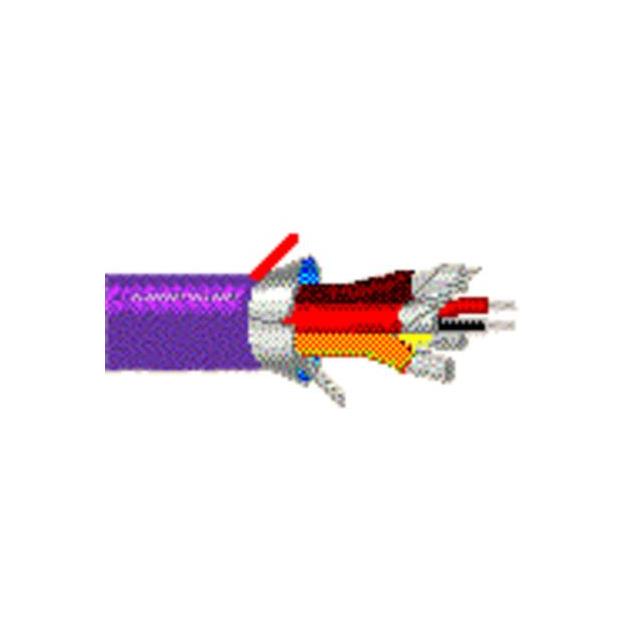

1696A Series
Manufacturer: Belden Inc.
Beta
⌘K
2 #22 FHDPE SHLD PVC
| Part | Shield Material | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Features | Wire Gauge | Number of Conductors | Conductor Insulation | Cable Type | Length | Length | Usage | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester Copper Tinned | 90 % 100 % | -30 ░C | 60 °C | Drain Wire | 22 AWG | 2 | Foam Polyethylene (FPE) | Multi-Conductor | 304.8 m | 1000 ft | Audio | Black | 0.635 mm | 0.025 in | Poly-Vinyl Chloride (PVC) | Braid Foil | 30 AWG | 7 | 0.235 " | 5.97 mm | 300 VDC | Copper Tinned |
 Belden Inc. | Aluminum Polyester Copper Tinned | 90 % 100 % | -30 ░C | 60 °C | Drain Wire | 22 AWG | 2 | Foam Polyethylene (FPE) | Multi-Conductor | 152.4 m | 500 ft | Audio | Black | 0.635 mm | 0.025 in | Poly-Vinyl Chloride (PVC) | Braid Foil | 30 AWG | 7 | 0.235 " | 5.97 mm | 300 VDC | Copper Tinned |
