LK202 Series

Catalog

LCD CHARACTER DISPLAY MODULES & ACCESSORIES BLACK BACKGROUND RED TEXT

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Character Size [y]	Character Size [z]	Character Format [x]	Character Format [y]	Backlight	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Background Color	Number of Characters	Display Type	Display Format [x]	Display Format [y]	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Viewing Area [x]	Viewing Area [y]	Text Color	Display Mode	Dot Size [custom]	Dot Size [custom]

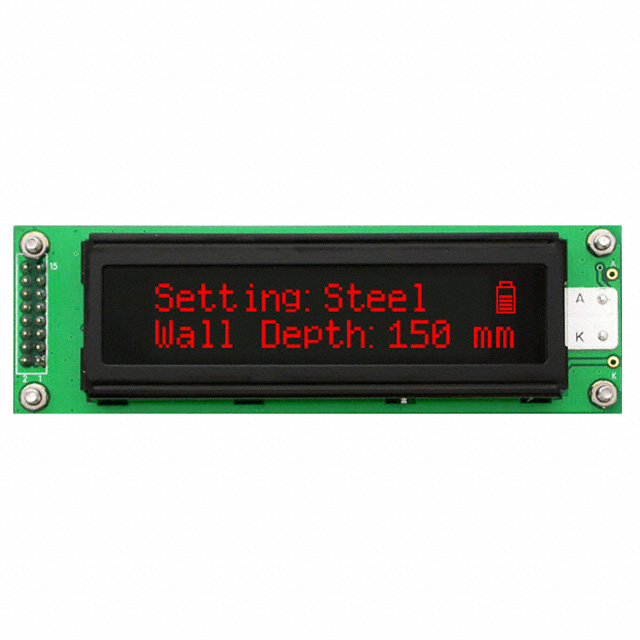

Matrix Orbital LK202-25-USB-R	4.75 V	5.25 V	3.2 mm	5.55 mm	5 Dots	8 Dots	LED - Red	37 mm	27.7 mm	116 mm	Black	40	LCD - Color	20	2	50 °C	0 °C	USB	83 mm	18.6 mm	Red	Transmissive	0.65 mm	0.6 mm

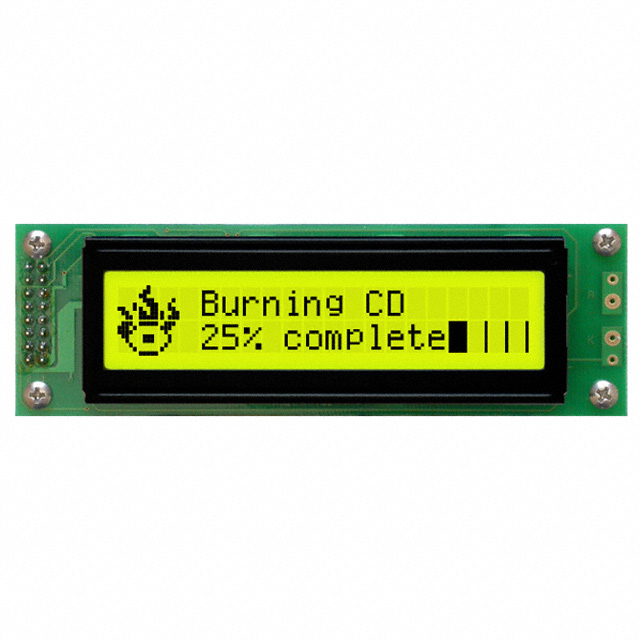

Matrix Orbital LK202-25-USB-E	4.75 V	5.25 V	3.2 mm	5.55 mm	5 Dots	8 Dots		37 mm	27.7 mm	116 mm	Green	40	LCD - Color	20	2	70 °C	-20 ░C	USB	83 mm	18.6 mm	Gray	Transmissive	0.65 mm	0.6 mm
Matrix Orbital LK202-25-R	4.75 V	5.25 V	3.2 mm	5.55 mm	5 Dots	8 Dots	LED - Red	37 mm	28.69 mm	116 mm	Black	40	LCD - Color	20	2	50 °C	0 °C	I2C RS-232 TTL	73.5 mm	11.5 mm	Red	Transmissive	0.65 mm	0.6 mm
Matrix Orbital LK202-25-V	9 V	15 V	3.2 mm	5.55 mm	5 Dots	8 Dots		37 mm	28.69 mm	116 mm	Green	40	LCD - Color	20	2	50 °C	0 °C	I2C RS-232 TTL	83 mm	18.6 mm	Gray	Transmissive	0.65 mm	0.6 mm
Matrix Orbital LK202-25-WB-V-E	9 V	15 V	3.2 mm	5.55 mm	5 Dots	8 Dots		37 mm	29 mm	116 mm	Blue	40	LCD - Monochrome	20	2	70 °C	-20 ░C	I2C RS-232 TTL	73.5 mm	11.5 mm	White		0.65 mm	0.6 mm
Matrix Orbital LK202-25-IY-V-E	9 V	15 V	3.2 mm	5.55 mm	5 Dots	8 Dots		37 mm	29 mm	116 mm	Black	40	LCD - Monochrome	20	2	70 °C	-20 ░C	I2C RS-232 TTL	73.5 mm	11.5 mm	Yellow		0.65 mm	0.6 mm
Matrix Orbital LK202-25-FA-V	9 V	15 V	3.2 mm	5.55 mm	5 Dots	8 Dots		37 mm	29 mm	116 mm	Black	40	FFSTN - Double Film Super-Twisted Nematic	20	2	50 °C	0 °C	I2C RS-232 TTL	73.5 mm	11.5 mm	Amber		0.65 mm	0.6 mm

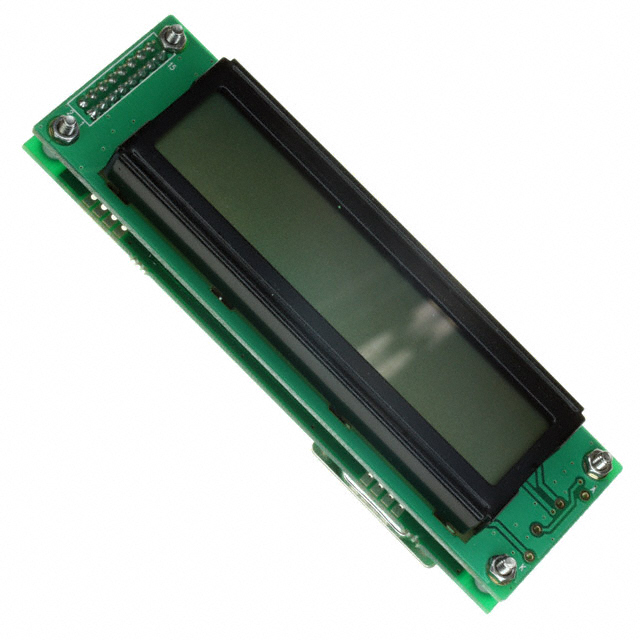

Matrix Orbital LK202-25-GW	4.75 V	5.25 V	3.2 mm	5.55 mm	5 Dots	8 Dots	LED - White	37 mm	28.69 mm	116 mm	White	40	LCD - Color	20	2	50 °C	0 °C	I2C RS-232 TTL	73.5 mm	11.5 mm	Gray	Transmissive	0.65 mm	0.6 mm

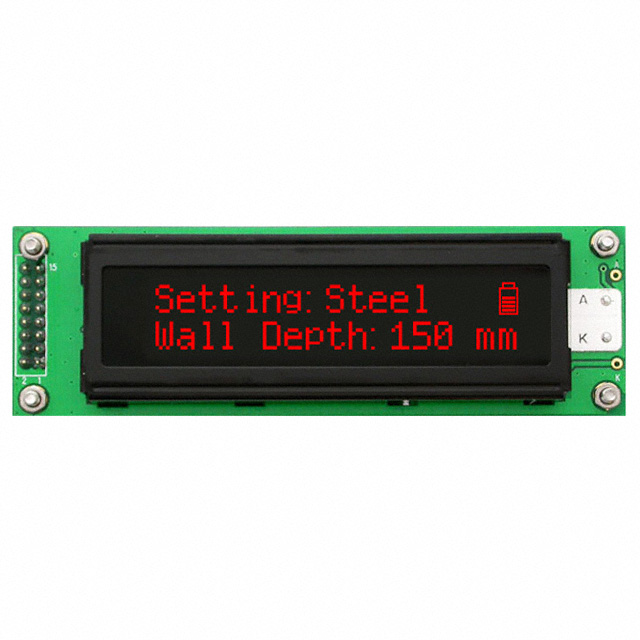

Matrix Orbital LK202-25-USB-R-E	4.75 V	5.25 V	3.2 mm	5.55 mm	5 Dots	8 Dots	LED - Red	37 mm	27.7 mm	116 mm	Black	40	LCD - Color	20	2	70 °C	-20 ░C	USB	83 mm	18.6 mm	Red	Transmissive	0.65 mm	0.6 mm
Matrix Orbital LK202-25-USB-GW-E	4.75 V	5.25 V	3.2 mm	5.55 mm	5 Dots	8 Dots	LED - White	37 mm	27.7 mm	116 mm	White	40	LCD - Color	20	2	70 °C	-20 ░C	USB	83 mm	18.6 mm	Gray	Transmissive	0.65 mm	0.6 mm
