LFA240F Series

Switching Power Supplies AC/DC PS(Open frame)

Manufacturer: Cosel USA, Inc.

Catalog

Switching Power Supplies AC/DC PS(Open frame)

Catalog

Switching Power Supplies AC/DC PS(Open frame)

...

Part	Minimum Load Required	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Applications	Voltage - Output 1	Current - Output 1	Type	Standard Number	Approval Agency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Mounting Type	Efficiency	Voltage - Output 1 [custom]
Cosel USA, Inc. LFA240F-24-CT		70 °C	-10 °C	3000 V	ITE (Commercial)	24 V	10 A	Open Frame	60950-1 62368-1	CE CSA cURus TUV UL	5.2 in	132.1 mm	50 mm	1.04 in	26.4 mm	1.97 in	1	Chassis Mount	87.5 %
Cosel USA, Inc. LFA240F-24-RY		70 °C	-10 °C	3000 V	ITE (Commercial)	24 V	10 A	Open Frame	60950-1 62368-1	CE CSA cURus TUV UL	5.2 in	132.1 mm	50 mm	1.04 in	26.4 mm	1.97 in	1	Chassis Mount	87.5 %
Cosel USA, Inc. LFA240F-36-G		70 °C	-10 °C	3000 V	ITE (Commercial)		6.7 A	Open Frame	60950-1 62368-1	CE CSA cURus TUV UL	5.2 in	132.1 mm	50 mm	1.04 in	26.4 mm	1.97 in	1	Chassis Mount	87.5 %	36 V

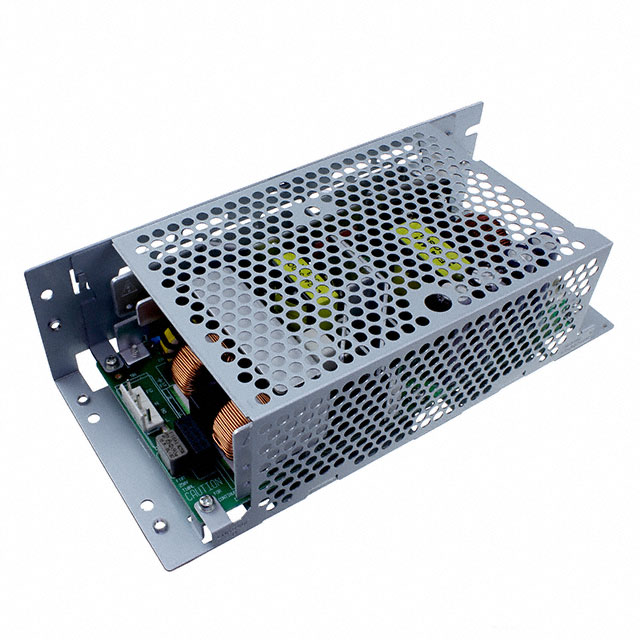

Cosel USA, Inc. LFA240F-48-SNY		70 °C	-10 °C	3000 V	ITE (Commercial)	48 V	5 A	Enclosed	60950-1 62368-1	CE CSA cURus TUV UL	7.09 in	180.1 mm	84.1 mm	1.83 in	46.5 mm	3.31 in	1	Chassis Mount	87.5 %
Cosel USA, Inc. LFA240F-36-SG		70 °C	-10 °C	3000 V	ITE (Commercial)		6.7 A	Open Frame	60950-1 62368-1	CE CSA cURus TUV UL	5.2 in	132.1 mm	50 mm	1.04 in	26.4 mm	1.97 in	1	Chassis Mount	87.5 %	36 V
Cosel USA, Inc. LFA240F-36-TY		70 °C	-10 °C	3000 V	ITE (Commercial)		6.7 A	Open Frame	60950-1 62368-1	CE CSA cURus TUV UL	5.2 in	132.1 mm	50 mm	1.04 in	26.4 mm	1.97 in	1	Chassis Mount	87.5 %	36 V
Cosel USA, Inc. LFA240F-48-GR2		70 °C	-10 °C	3000 V	ITE (Commercial)	48 V	5 A	Open Frame	60950-1 62368-1	CE CSA cURus TUV UL	5.2 in	132.1 mm	50 mm	1.04 in	26.4 mm	1.97 in	1	Chassis Mount	87.5 %
Cosel USA, Inc. LFA240F-48-SNG		70 °C	-10 °C	3000 V	ITE (Commercial)	48 V	5 A	Enclosed	60950-1 62368-1	CE CSA cURus TUV UL	7.09 in	180.1 mm	84.1 mm	1.83 in	46.5 mm	3.31 in	1	Chassis Mount	87.5 %
Cosel USA, Inc. LFA240F-36-R		70 °C	-10 °C	3000 V	ITE (Commercial)		6.7 A	Open Frame	60950-1 62368-1	CE CSA cURus TUV UL	5.2 in	132.1 mm	50 mm	1.04 in	26.4 mm	1.97 in	1	Chassis Mount	87.5 %	36 V
Cosel USA, Inc. LFA240F-48-J1		70 °C	-10 °C	3000 V	ITE (Commercial)	48 V	5 A	Open Frame	60950-1 62368-1	CE CSA cURus TUV UL	5.2 in	132.1 mm	50 mm	1.04 in	26.4 mm	1.97 in	1	Chassis Mount	87.5 %
