77316 Series

Catalog

BERGSTIK

Part	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Termination	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Shape	Number of Positions	Contact Material	Number of Positions Loaded	Number of Rows	Mounting Type	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Type	Insulation Height	Insulation Height	Fastening Type	Material Flammability Rating	Connector Type	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Mating [x]	Contact Length - Post [x]
Amphenol ICC (FCI) 77316-163LF	0.1 in	2.54 mm	0.225 in	5.72 mm	3 A	Solder	Black	30 Áin	0.76 Ám	Gold or Gold GXT™	Square	7	Phosphor Bronze	4	1	Through Hole Right Angle	Unshrouded	125 °C	-65 ░C	Thermoplastic	Male Pin	0.094 in	2.4 mm	Push-Pull	UL94 V-0	Breakaway Header	5.11 mm	0.201 in
Amphenol ICC (FCI) 77316-162LF	0.1 in	2.54 mm		0.571 in	3 A	Solder	Black	30 Áin	0.76 Ám	Gold or Gold GXT™	Square		Phosphor Bronze	2	1	Through Hole Right Angle	Unshrouded	125 °C	-65 ░C	Thermoplastic	Male Pin	0.094 in	2.4 mm	Push-Pull	UL94 V-0	Breakaway Header	5 mm	0.197 in	14.5 mm
Amphenol ICC (FCI) 77316-847LF	0.1 in	2.54 mm	0.225 in	5.72 mm	3 A	Solder	Black	15 µin	0.38 µm	Gold or Gold GXT™	Square	18	Phosphor Bronze	10	1	Through Hole Right Angle	Unshrouded	125 °C	-65 ░C	Thermoplastic	Male Pin	0.094 in	2.4 mm	Push-Pull	UL94 V-0	Breakaway Header	2.57 mm	0.101 in

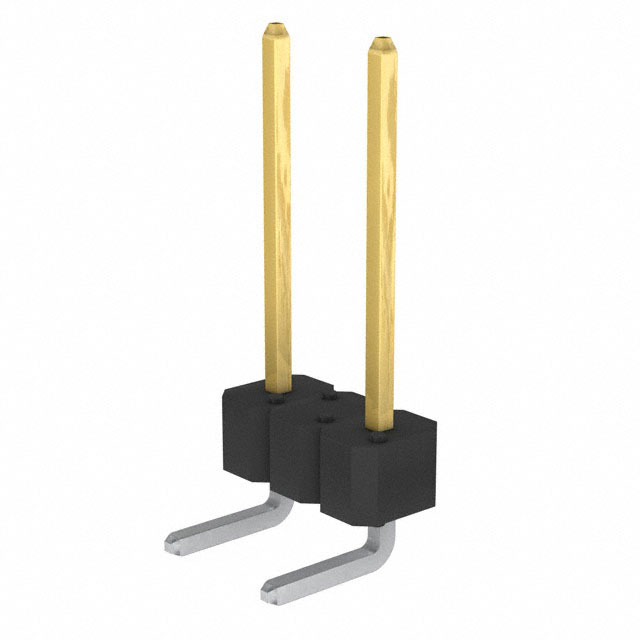

Amphenol ICC (FCI) 77316-148LF	0.1 in	2.54 mm	0.461 "	11.71 mm	3 A	Solder	Black	30 Áin	0.76 Ám	Gold or Gold GXT™	Square		Phosphor Bronze	2	1	Through Hole Right Angle	Unshrouded	125 °C	-65 ░C	Thermoplastic	Male Pin	0.094 in	2.4 mm	Push-Pull	UL94 V-0	Breakaway Header	2.79 mm			0.11 in

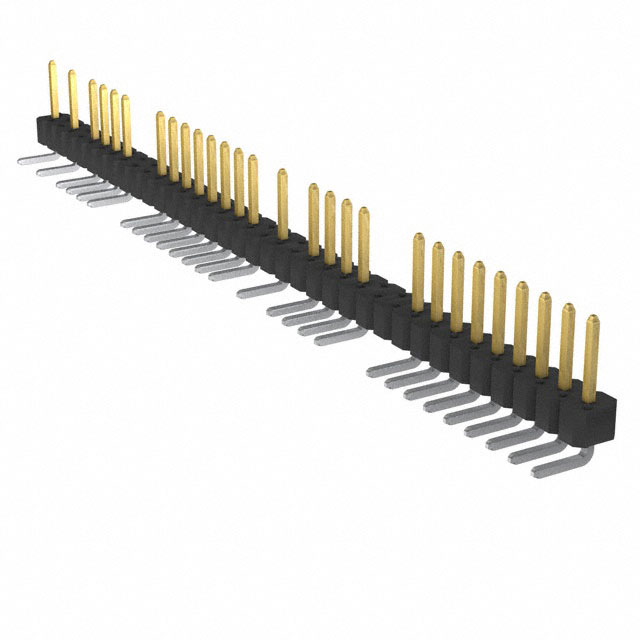

Amphenol ICC (FCI) 77316-140	0.1 in	2.54 mm	0.225 in	5.72 mm		Solder	Black	30 Áin	0.76 Ám	Gold or Gold GXT™	Square	36	Phosphor Bronze	28	1	Through Hole Right Angle	Unshrouded			Thermoplastic	Male Pin	0.094 in	2.4 mm	Push-Pull	UL94 V-0	Breakaway Header	2.57 mm	0.101 in

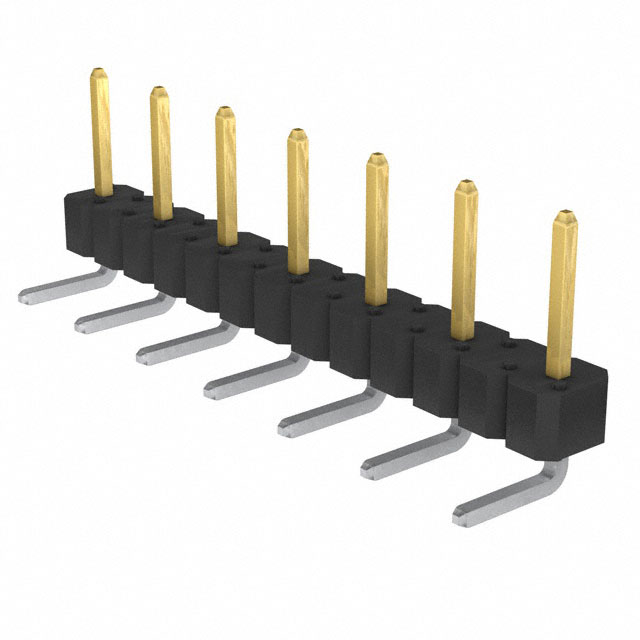

Amphenol ICC (FCI) 77316-151LF	0.1 in	2.54 mm		5.84 mm	3 A	Solder	Black	30 Áin	0.76 Ám	Gold or Gold GXT™	Square	13	Phosphor Bronze	7	1	Through Hole Right Angle	Unshrouded	125 °C	-65 ░C	Thermoplastic	Male Pin	0.094 in	2.4 mm	Push-Pull	UL94 V-0	Breakaway Header				0.12 in	0.23 in	3.05 mm
