Q2-F2XYG Series

Manufacturer: Qualtek

Catalog

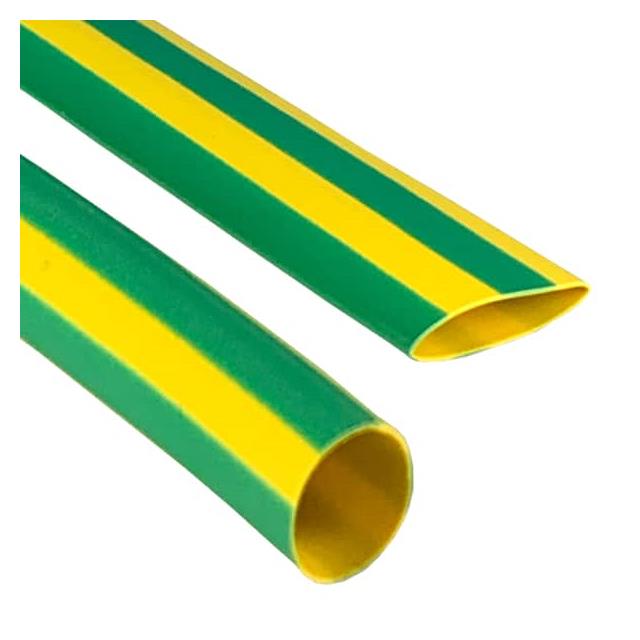

HEATSHRINK 2"-6" YLLW/GREEN

Part	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrink Temperature	Length	Length	Length	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Features	Recovered Wall Thickness	Recovered Wall Thickness	Material	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]
Qualtek Q2-F2XYG-2-08-QB6IN-3	Tubing Flexible	2 in	50.8 mm	70 °C	152.4 mm	0.5 '	6 "	1	2	Flame Retardant	1.02 mm	0.04 in	Polyolefin (PO)	Green Yellow	1 in	25.4 mm	-55 C	135 °C	40 °C	14 °F	-50 °F	40 °C	144 Months
Qualtek Q2-F2XYG-1-08-QB6IN-8	Tubing Flexible	1 in	25.4 mm	70 °C	152.4 mm	0.5 '	6 "	1	2	Flame Retardant	0.9 mm	0.036 in	Polyolefin (PO)	Green Yellow	0.5 "		-55 C	135 °C	40 °C	14 °F	-50 °F	40 °C	144 Months	12.7 mm
Qualtek Q2-F2XYG-1/4-08-SS100M	Tubing Flexible		0.25 "	70 °C				1	2	Flame Retardant	0.56 mm	0.022 in	Polyolefin (PO)	Green Yellow	0.125 in		-55 C	135 °C	40 °C	14 °F	-50 °F	40 °C	144 Months	3.18 mm	328.1 ft	100 m	6.35 mm
Qualtek Q2-F2XYG-3/64-08-QB6IN-40	Tubing Flexible	0.046 "	1.17 mm	70 °C	152.4 mm	0.5 '	6 "	1	2	Flame Retardant	0.33 mm	0.013 in	Polyolefin (PO)	Green Yellow	0.023 in		-55 C	135 °C	40 °C	14 °F	-50 °F	40 °C	144 Months	0.58 mm
Qualtek Q2-F2XYG-38-08-MS100FT	Tubing Flexible	0.375 in	9.53 mm	70 °C				1	2	Flame Retardant	0.56 mm	0.022 in	Polyolefin (PO)	Green Yellow	0.187 in		-55 C	135 °C	40 °C	14 °F	-50 °F	40 °C	144 Months	4.75 mm	100 ft	30.5 m
