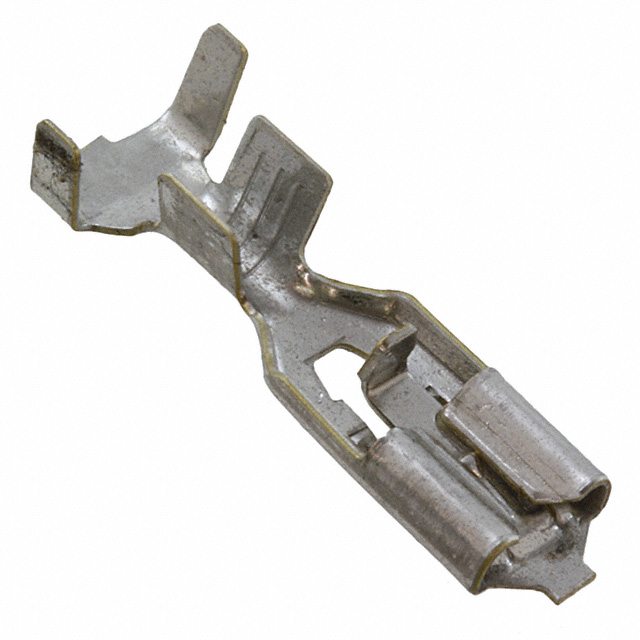

170326 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN QC RCPT 14-18AWG 0.187
| Part | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Length - Overall [x] | Length - Overall [x] | Wire Gauge [Min] | Wire Gauge [Max] | Termination | Tab Length | Tab Length | Contact Material | Tab Thickness | Tab Thickness | Insulation | Terminal Type | Mounting Type | Gender | Tab Width | Tab Width | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.083 " | 2.11 mm | 3.58 mm | 0.141 " | 21.59 mm | 0.85 " | 14 AWG | 18 AWG | Crimp | 0.236 in | 6 mm | Phosphor Bronze | 0.02 " | 0.51 mm | Non-Insulated | Standard | Free Hanging (In-Line) | Female | 4.75 mm | 0.187 in | Tin |
TE Connectivity Raychem Cable Protection | 0.083 " | 2.11 mm | 3.58 mm | 0.141 " | 21.59 mm | 0.85 " | 14 AWG | 18 AWG | Crimp | 0.236 in | 6 mm | Brass | 0.02 " | 0.51 mm | Non-Insulated | Standard | Free Hanging (In-Line) | Female | 4.75 mm | 0.187 in | Tin |
