120.6MM Series
Manufacturer: 3M (TC)
Beta
⌘K

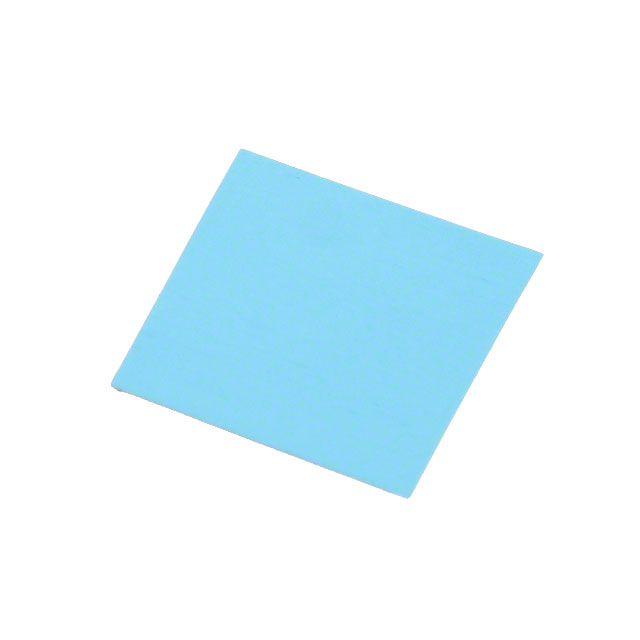

THERM PAD 120.6MMX120.6MM 1=25PK
| Part | Shelf Life | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Shelf Life Start | Thickness | Thickness | Color | Outline [x] | Outline [y] | Thermal Resistivity | Type | Material | Adhesive | Shape | Storage/Refrigeration Temperature | Storage/Refrigeration Temperature | Backing, Carrier | Thermal Conductivity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M (TC) | 24 Months | 25 °C | 20 °C | Date of Manufacture | 0.0197 " | 0.5 mm | Gray | 120.6 mm | 120.6 mm | 0.46 °C/W | Interface Pad Sheet | Acrylic Elastomer | Tacky - Both Sides | Square | ||||
 3M (TC) | 24 Months | Date of Manufacture | 0.0148 " | 0.375 mm | White | 120.6 mm | 120.6 mm | Transfer Tape | Acrylic | Adhesive - Both Sides | Square | 22 °C | 72 °F | Polyester | 0.6 W/m-K | |||
 3M (TC) | 24 Months | Date of Manufacture | White | 120.6 mm | 120.6 mm | Transfer Tape | Acrylic | Adhesive - Both Sides | Square | 22 °C | 72 °F | Polyester | 0.6 W/m-K |
