2307812 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

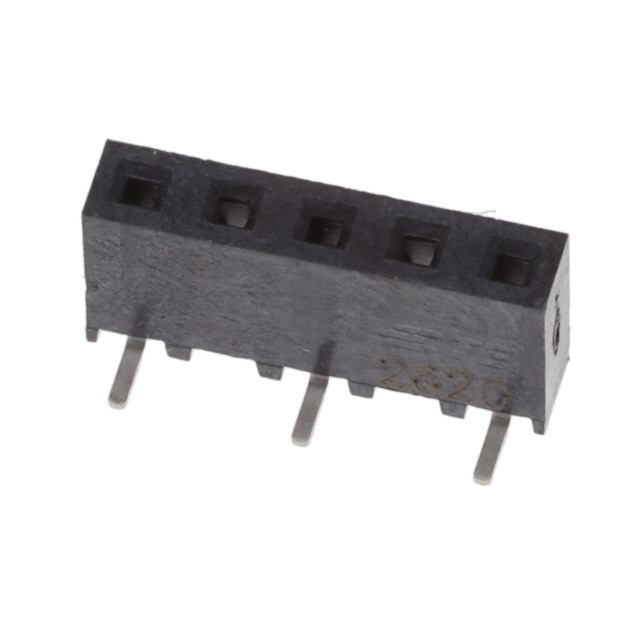

5P,2MM,BB,REC,SRVT,SMD,SN,TR,W/C
| Part | Insulation Color | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions Loaded | Voltage Rating | Mounting Type | Pitch - Mating [x] | Pitch - Mating [x] | Contact Shape | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Material Flammability Rating | Termination | Number of Rows | Fastening Type | Contact Material | Insulation Height | Insulation Height | Contact Finish - Post | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Black | Liquid Crystal Polymer (LCP) | -40 °C | 105 ░C | Receptacle | 3 µm | 118.1 µin | All | 125 VDC | Surface Mount | 0.079 in | 2 mm | Square | 2 A | 118.1 µin | 3 µm | Female Socket | UL94 V-0 | Solder | 1 | Push-Pull | Phosphor Bronze | 0.177 in | 4.5 mm | Tin | Pick and Place |
