0908-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

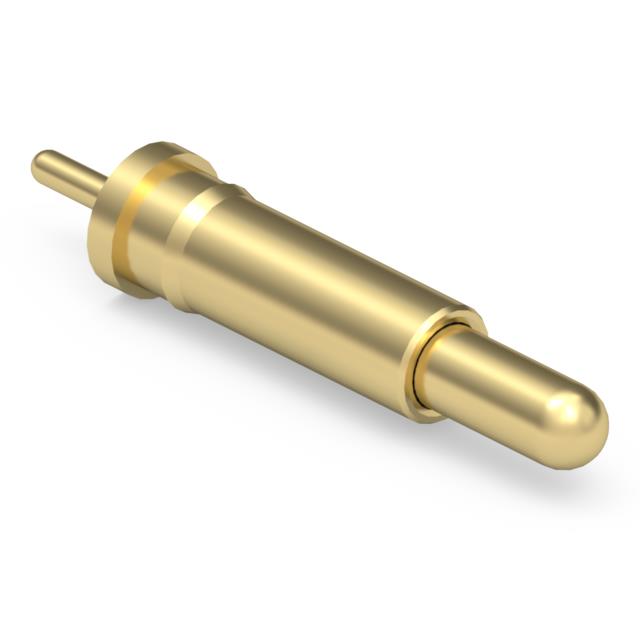

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Operating Force - Mid Compression | Contact Type | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish Thickness | Contact Finish Thickness | Minimum Working Height | Minimum Working Height | Contact Finish | Recommended Working Height | Recommended Working Height | Maximum Working Height [Max] | Maximum Working Height [Max] | Operating Force - Initial | Pad Layout Dimension | Pad Layout Dimension | Mating Cycles | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2 A 5.2 A | 60 gf | Sleeve & Plunger (Pogo Pins) | 0.042 in | 1.07 mm | 20 µin | 0.51 µm | 0.24 in | 6.1 mm | Gold | 0.267 in | 6.79 mm | 0.295 in | 7.49 mm | 10 gf | 0.072 in | 1.83 mm | 1000000 | Through Hole | Brass Alloy |
