IRM-60 Series

Catalog

AC/DC CONVERTER 12V 60W

Part	Line Regulation	Load Regulation	Voltage - Output 1	Power (Watts)	Standard Number	Mounting Type	Current - Output (Max)	Number of Outputs	Applications	Features	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Output 1	Voltage - Isolation	Load Regulation	Current - Output (Max) [Max]

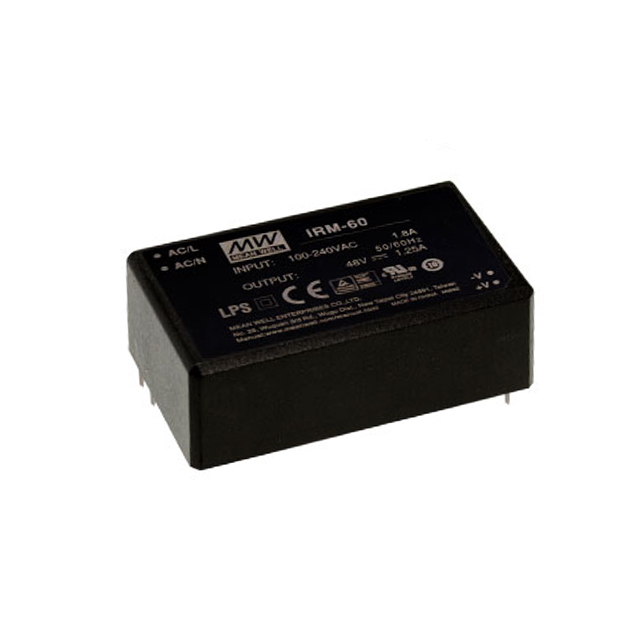

MEAN WELL USA Inc. IRM-60-12	0.5 %	±1%	12 V	60 W	60335-1 62368-1	Through Hole	5 A	1	ITE (Commercial)	Universal Input	4-DIP Module	305 VAC	85 VAC	87.5 %	Enclosed	-30 °C	70 °C	CB CE cURus TUV	1.16 in	3.43 "	29.5 mm	2.05 in	52 mm	87 mm

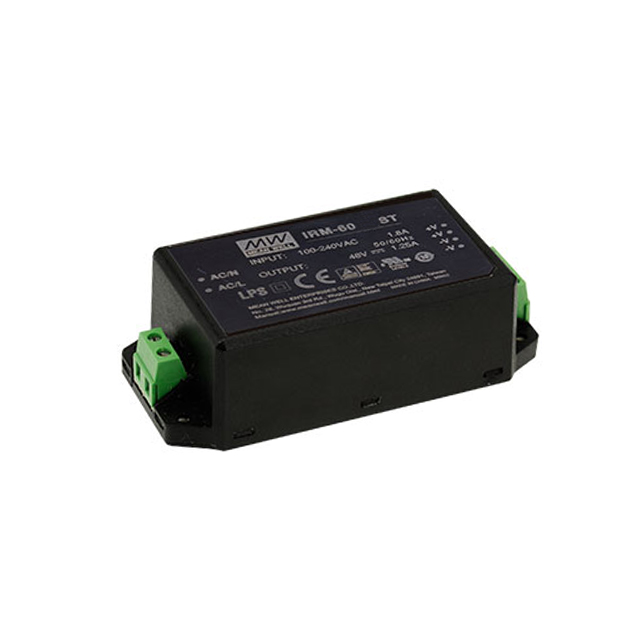

MEAN WELL USA Inc. IRM-60-5ST			5 V	50 W 60 W	60335-1 62368-1	Chassis Mount		1	ITE (Commercial)	Universal Input		305 VAC	85 VAC	84 %	Enclosed	-30 °C	70 °C	CB CE cURus TUV	1.32 in	4.29 "	33.5 mm	2.05 in	52 mm	109 mm	10 A	3000 V
MEAN WELL USA Inc. IRM-60-24ST			24 V	60 W	60335-1 62368-1	Chassis Mount		1	ITE (Commercial)	Universal Input				90 %	Enclosed	-30 °C	70 °C	CB CE cURus TUV	1.32 in	4.29 "	33.5 mm	2.05 in	52 mm	109 mm	2.5 A	3000 V
MEAN WELL USA Inc. IRM-60-12ST			12 V	60 W	60335-1 62368-1	Chassis Mount		1	ITE (Commercial)	Universal Input				87.5 %	Enclosed	-30 °C	70 °C	CB CE cURus TUV	1.32 in	4.29 "	33.5 mm	2.05 in	52 mm	109 mm	5 A	3000 V
MEAN WELL USA Inc. IRM-60-15ST			15 V	60 W	60335-1 62368-1	Chassis Mount		1	ITE (Commercial)	Universal Input				89 %	Enclosed	-30 °C	70 °C	CB CE cURus TUV	1.32 in	4.29 "	33.5 mm	2.05 in	52 mm	109 mm	4 A	3000 V
MEAN WELL USA Inc. IRM-60-48	0.5 %		48 V	60 W	60335-1 62368-1	Through Hole		1	ITE (Commercial)	Universal Input	4-DIP Module	305 VAC	85 VAC	91 %	Enclosed	-30 °C	70 °C	CB CE cURus TUV	1.16 in	3.43 "	29.5 mm	2.05 in	52 mm	87 mm			0.5 %	1.25 A
