282844 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

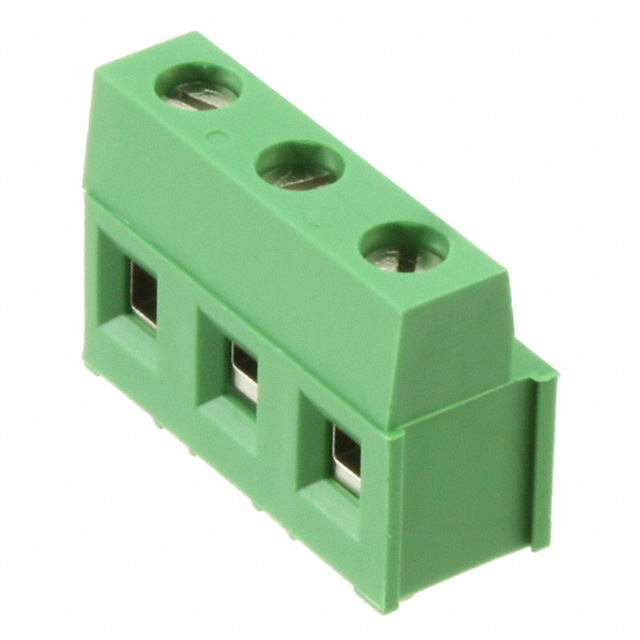

(282844-3) TERMI-BLOK PCB MOUNT 90 3P.
| Part | Screw Material - Plating | Voltage | Positions Per Level | Features | Wire Gauge [Max] | Wire Gauge [Min] | Current | Wire Termination | Torque - Screw | Torque - Screw | Mating Orientation | Number of Levels | Clamp Material - Plating | Mounting Type | Pitch [x] | Pitch [x] | Screw Thread | Color | Contact Material - Plating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Brass - Nickel Plated | 300 V | 3 | Interlocking (Side) | 30 AWG | 12 AWG | 17.5 A | Screw - Rising Cage Clamp | 0.79 Nm | 7 Lb-In | Horizontal with Board | 1 | Brass - Nickel Plated | Through Hole | 0.295 in | 7.5 mm | M3 | Green | Brass - Tin Plated |
