TE6-1A Series

Catalog

SWITCH TOGGLE SPST 20A 12V

Part	Actuator Material	Electrical Life (Cycles)	Illumination Voltage (Nominal)	Color	Illumination Type	Panel Cutout Diameter	Panel Cutout Shape	Quick Connect Size (0.250")	Termination Style	Circuit	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating - DC	Actuator Length	Current Rating	Illumination	Bushing Thread Diameter	Bushing Thread	Bushing Thread Pitch	Switch Function	Mounting Type	Actuator Type

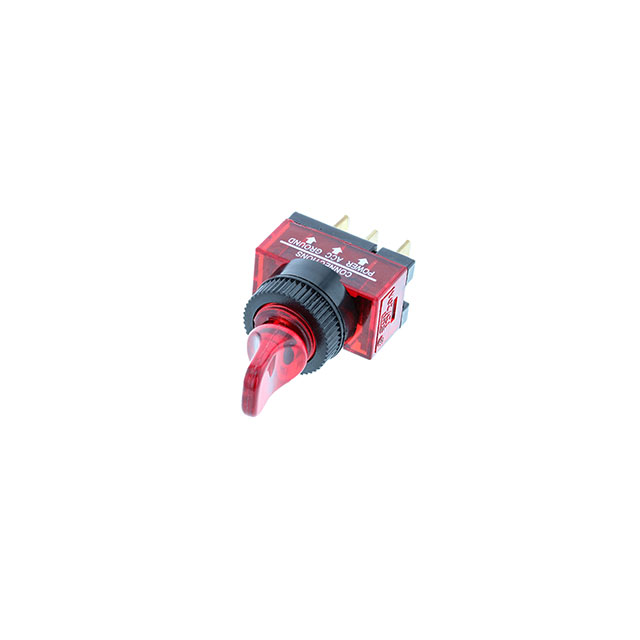

Switch Components TE6-1A-DC-1-RL	Polycarbonate (PC)	6000 Cycles	12 V	Red	LED	12.2 mm	Circular	0.25 in	Quick Connect	SPST	85 °C	-25 °C	12 V	17 mm	20 A	Illuminated	12 mm	M12 x 1	1 mm	On-Off	Panel Mount	Flatted

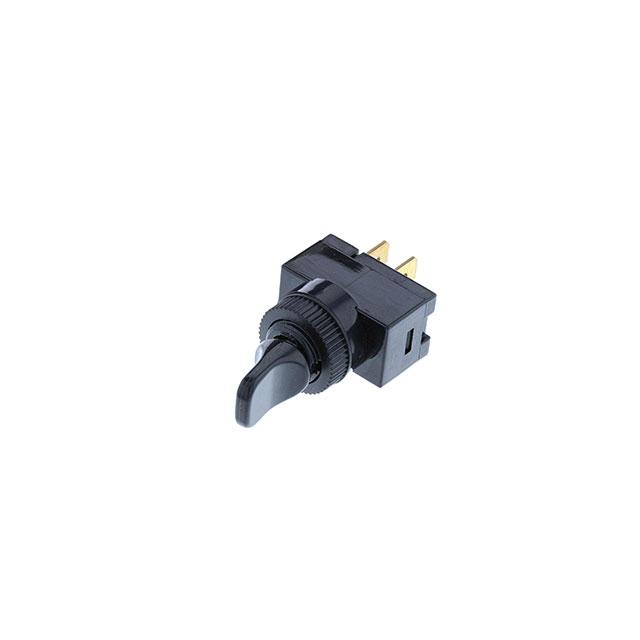

Switch Components TE6-1A-DC-1-PB	Polycarbonate (PC)	6000 Cycles				12.2 mm	Circular	0.25 in	Quick Connect	SPST	85 °C	-25 °C	12 V	17 mm	20 A	Non-Illuminated	12 mm	M12 x 1	1 mm	On-Off	Panel Mount	Flatted

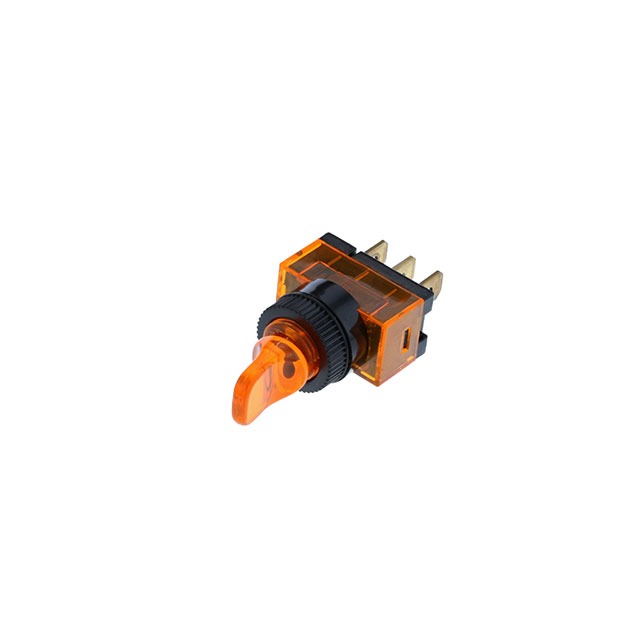

Switch Components TE6-1A-DC-1-AL	Polycarbonate (PC)	6000 Cycles	12 V	Amber	LED	12.2 mm	Circular	0.25 in	Quick Connect	SPST	85 °C	-25 °C	12 V	17 mm	20 A	Illuminated	12 mm	M12 x 1	1 mm	On-Off	Panel Mount	Flatted

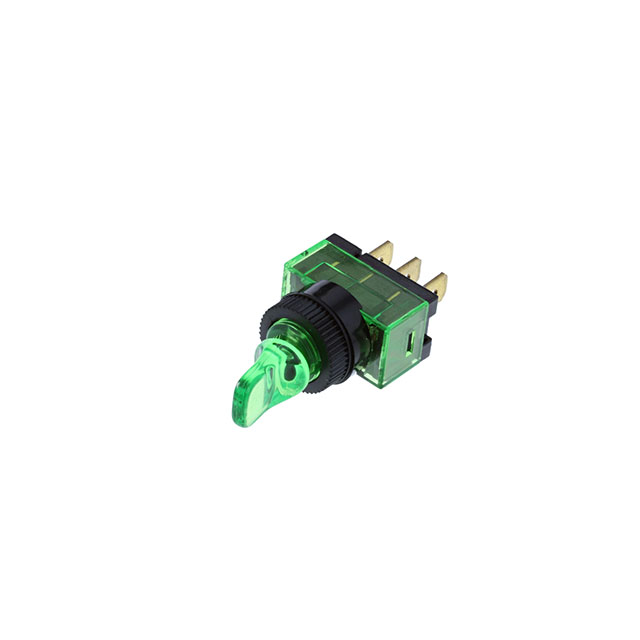

Switch Components TE6-1A-DC-1-GL	Polycarbonate (PC)	6000 Cycles	12 V	Green	LED	12.2 mm	Circular	0.25 in	Quick Connect	SPST	85 °C	-25 °C	12 V	17 mm	20 A	Illuminated	12 mm	M12 x 1	1 mm	On-Off	Panel Mount	Flatted
Switch Components TE6-1A-DC-1-UL	Polycarbonate (PC)	6000 Cycles	12 V	Blue	LED	12.2 mm	Circular	0.25 in	Quick Connect	SPST	85 °C	-25 °C	12 V	17 mm	20 A	Illuminated	12 mm	M12 x 1	1 mm	On-Off	Panel Mount	Flatted
