83347E Series
Manufacturer: Belden Inc.
Beta
⌘K

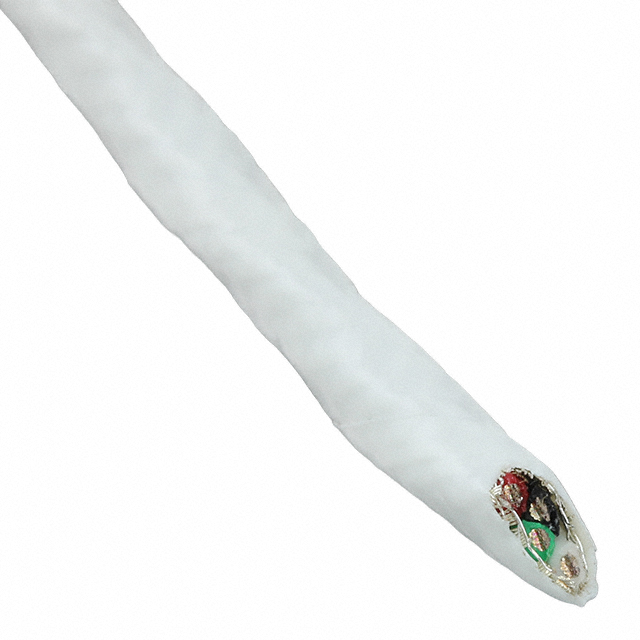

CABLE 4CON 26AWG WHT SHLD 100'
| Part | Shield Material | Shield Coverage | Qualification | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Jacket Color | Conductor Insulation | Conductor Strand [x] | Conductor Strand [x] | Shield Type | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Jacket (Insulation) Material | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Silver Coated | 85 % | MIL-W-16878/4 Type E | 0.137 " | 3.48 mm | 100 ft | 30.5 m | White | Polytetrafluoroethylene (PTFE) | 34 AWG | 7 | Braid | 4 | -65 ░C | 200 °C | 26 AWG | 600 V | 0.279 mm | 0.011 " | Multi-Conductor | Polytetrafluoroethylene (PTFE) | Copper Silver Coated |
