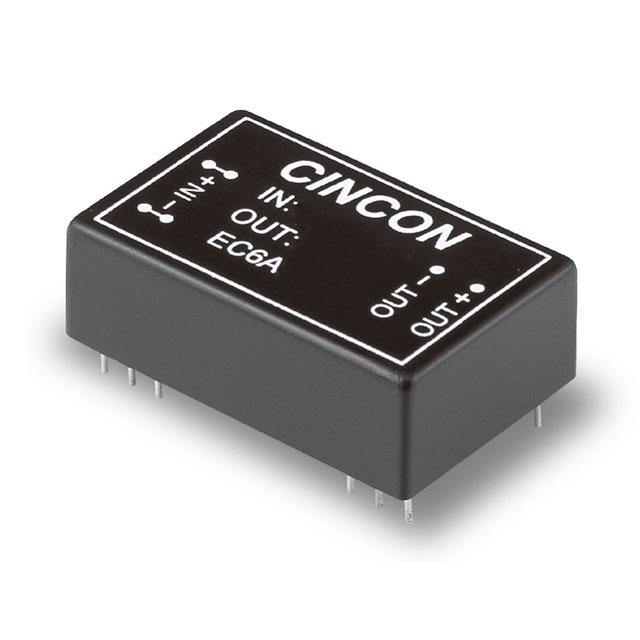

EC6A Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER +/-12V 7.4W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Output 2	Type	Standard Number	Features	Current - Output (Max)	Current - Output (Max)	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Voltage - Input (Max) [Max]	Mounting Type	Applications	Number of Outputs	Voltage - Isolation	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Control Features	Current - Output (Max) [Max]
Cincon Electronics Co. LTD EC6A15	-40 °C	100 °C	24-DIP Module 14 Leads	18 V	12 V	-12 V	Isolated Module	60950-1	SCP	310 mA	310 mA	CE cURus	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	87 %	36 V	Through Hole	ITE (Commercial)	2	1.5 kV	7.4 W
Cincon Electronics Co. LTD EC6A21S	-25 °C	71 °C	24-SMD Module 18 Leads	36 V	5 V		Isolated Module	60950-1 62368-1	Adjustable Output Remote On/Off			CE cURus	0.8 "	0.45 in	31.8 mm			1.25 in	81 %	72 V	Surface Mount	ITE (Commercial)	1	1.5 kV	7.5 W	20.3 mm	11.4 mm	Active High Enable	1.5 A
Cincon Electronics Co. LTD EC6A01S	-25 °C	71 °C	24-SMD Module 18 Leads	9 V	5 V		Isolated Module	60950-1 62368-1	Adjustable Output Remote On/Off			CE cURus	0.8 "	0.45 in	31.8 mm			1.25 in	80 %	18 V	Surface Mount	ITE (Commercial)	1	1.5 kV	7.5 W	20.3 mm	11.4 mm	Active High Enable	1.5 A
Cincon Electronics Co. LTD EC6A11S	-25 °C	71 °C	24-SMD Module 18 Leads	18 V	5 V		Isolated Module	60950-1 62368-1	Adjustable Output Remote On/Off			CE cURus	0.8 "	0.45 in	31.8 mm			1.25 in	83 %	36 V	Surface Mount	ITE (Commercial)	1	1.5 kV	7.5 W	20.3 mm	11.4 mm	Active High Enable	1.5 A
Cincon Electronics Co. LTD EC6A25	-40 °C	100 °C	24-DIP Module 14 Leads	36 V	12 V	-12 V	Isolated Module	60950-1	SCP	310 mA	310 mA	CE cURus	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	85 %	72 V	Through Hole	ITE (Commercial)	2	1.5 kV	7.4 W
Cincon Electronics Co. LTD EC6A11	-40 °C	100 °C	24-DIP Module 14 Leads	18 V	5 V		Isolated Module	60950-1	SCP			CE cURus	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	83 %	36 V	Through Hole	ITE (Commercial)	1	1.5 kV	7.5 W				1.5 A
Cincon Electronics Co. LTD EC6A16S	-25 °C	71 °C	24-SMD Module 18 Leads	18 V	15 V	-15 V	Isolated Module	60950-1 62368-1	Adjustable Output Remote On/Off	250 mA		CE cURus	0.8 "	0.45 in	31.8 mm			1.25 in	84 %	36 V	Surface Mount	ITE (Commercial)	2	1.5 kV	7.5 W	20.3 mm	11.4 mm	Active High Enable
