ISO7341-Q1 Series

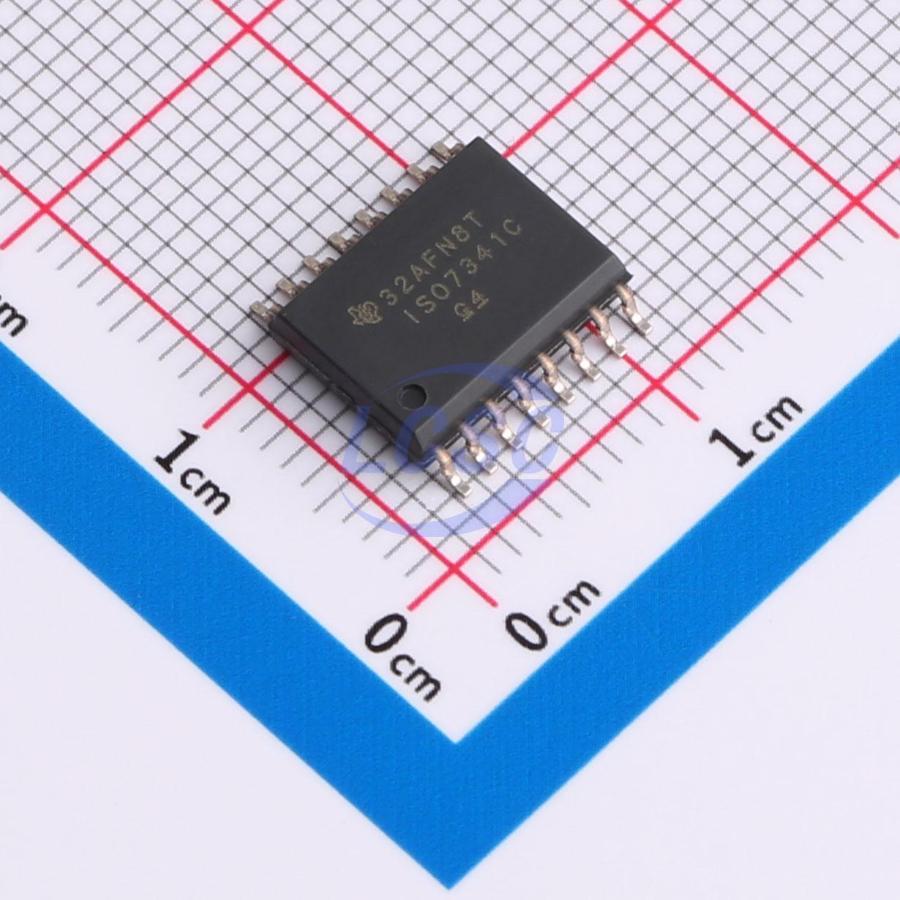

Low-power, quad-channel, 3/1, 25-Mbps, default output low digital isolator

Catalog

Low-power, quad-channel, 3/1, 25-Mbps, default output low digital isolator

Part	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Number of Channels	Grade	Common Mode Transient Immunity (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Channel Type	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Pulse Width Distortion (Max) [Max] [x]	Qualification	Voltage - Isolation	Package / Case [x]	Package / Case	Package / Case [y]	Technology	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Primary Attributes	Function	Supplied Contents	Utilized IC / Part	Pulse Width Distortion (Max) [Max]
Texas Instruments ISO7341FCQDWRQ1	16-SOIC	5.5 V	3 V	25 MBd	4	Automotive	25 kV/µs	125 °C	-40 °C	General Purpose	Unidirectional	Surface Mount	1.7 ns	2.1 ns	4 ns	AEC-Q100	3000 VAC	0.295 in	16-SOIC	7.5 mm	Capacitive Coupling	58 ns	58 ns	3	1
Texas Instruments ISO7341CDWR	16-SOIC	5.5 V	3 V	25 MBd	4		25 kV/µs	125 °C	-40 °C	General Purpose	Unidirectional	Surface Mount	1.7 ns	2.1 ns	4 ns		3000 VAC	0.295 in	16-SOIC	7.5 mm	Capacitive Coupling	58 ns	58 ns	3	1
Texas Instruments ISO7341CDW	16-SOIC	5.5 V	3 V	25 MBd	4		25 kV/µs	125 °C	-40 °C	General Purpose	Unidirectional	Surface Mount	1.7 ns	2.1 ns	4 ns		3000 VAC	0.295 in	16-SOIC	7.5 mm	Capacitive Coupling	58 ns	58 ns	3	1
Texas Instruments ISO7341FCDW	16-SOIC	5.5 V	3 V	25 MBd	4		25 kV/µs	125 °C	-40 °C	General Purpose	Unidirectional	Surface Mount	1.7 ns	2.1 ns	4 ns		3000 VAC	0.295 in	16-SOIC	7.5 mm	Capacitive Coupling	58 ns	58 ns	3	1
Texas Instruments ISO7341CQDWQ1	16-SOIC	5.5 V	3 V	25 MBd	4	Automotive	25 kV/µs	125 °C	-40 °C	General Purpose	Unidirectional	Surface Mount	1.7 ns	2.1 ns	4 ns	AEC-Q100	3000 VAC	0.295 in	16-SOIC	7.5 mm	Capacitive Coupling	58 ns	58 ns	3	1

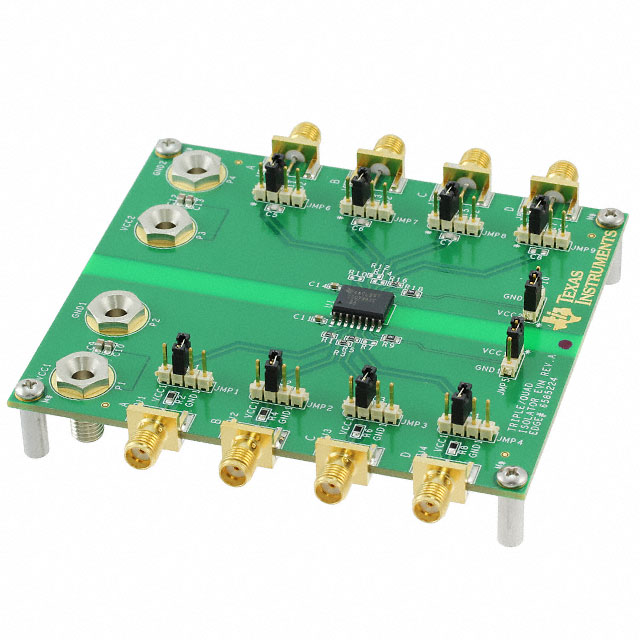

Texas Instruments ISO7341CEVM										Interface																4-Channel (Quad)	Digital Isolator	Board(s)	ISO7341C
Texas Instruments ISO7341CQDWRQ1	16-SOIC	5.5 V	3 V	25 MBd	4	Automotive	25 kV/µs	125 °C	-40 °C	General Purpose	Unidirectional	Surface Mount	1.7 ns	2.1 ns	4 ns	AEC-Q100	3000 VAC	0.295 in	16-SOIC	7.5 mm	Capacitive Coupling	58 ns	58 ns	3	1
Texas Instruments ISO7341FCDWR	16-SOIC	5.5 V	3 V	25 MBd	4		25 kV/µs	125 °C	-40 °C	General Purpose	Unidirectional	Surface Mount	1.7 ns	2.1 ns			3000 VAC	0.295 in	16-SOIC	7.5 mm	Capacitive Coupling	58 ns	58 ns	3	1					4.1 ns
Texas Instruments ISO7341FCQDWQ1	16-SOIC	5.5 V	3 V	25 MBd	4	Automotive	25 kV/µs	125 °C	-40 °C	General Purpose	Unidirectional	Surface Mount	1.7 ns	2.1 ns		AEC-Q100	3000 VAC	0.295 in	16-SOIC	7.5 mm	Capacitive Coupling	58 ns	58 ns	3	1					4.1 ns

Catalog

Low-power, quad-channel, 3/1, 25-Mbps, default output low digital isolator

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM Classification Level 3ADevice CDM Classification Level C6Signaling Rate: 25 MbpsIntegrated Noise Filter on the InputsDefault OutputHighandLowOptionsLow Power Consumption, Typical ICCper Channel at 1 Mbps:ISO7340-Q1: 0.9 mA (5-V Supplies),0.7 mA (3.3-V Supplies)ISO7341-Q1: 1.2 mA (5-V Supplies),0.9 mA (3.3-V Supplies)ISO7342-Q1: 1.3 mA (5-V Supplies),0.9 mA (3.3-V Supplies)Low Propagation Delay: 31 nsTypical (5-V Supplies)3.3-V and 5-V Level Translation70-KV/µs Transient Immunity, Typical (5-V Supplies)Robust Electromagnetic Compatibility (EMC)System-level ESD, EFT, and Surge ImmunityLow EmissionsOperates from 3.3-V and 5-V SuppliesWide-Body SOIC-16 PackageSafety-Related Certifications:4242-VPKBasic Isolation per DIN V VDE V 0884-10 and DIN EN 61010-13-KVRMSIsolation for 1 minute per UL 1577CSA Component Acceptance Notice 5A, IEC 60950-1 and IEC 61010-1 End Equipment StandardsGB4943.1-2011 CQC CertifiedQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM Classification Level 3ADevice CDM Classification Level C6Signaling Rate: 25 MbpsIntegrated Noise Filter on the InputsDefault OutputHighandLowOptionsLow Power Consumption, Typical ICCper Channel at 1 Mbps:ISO7340-Q1: 0.9 mA (5-V Supplies),0.7 mA (3.3-V Supplies)ISO7341-Q1: 1.2 mA (5-V Supplies),0.9 mA (3.3-V Supplies)ISO7342-Q1: 1.3 mA (5-V Supplies),0.9 mA (3.3-V Supplies)Low Propagation Delay: 31 nsTypical (5-V Supplies)3.3-V and 5-V Level Translation70-KV/µs Transient Immunity, Typical (5-V Supplies)Robust Electromagnetic Compatibility (EMC)System-level ESD, EFT, and Surge ImmunityLow EmissionsOperates from 3.3-V and 5-V SuppliesWide-Body SOIC-16 PackageSafety-Related Certifications:4242-VPKBasic Isolation per DIN V VDE V 0884-10 and DIN EN 61010-13-KVRMSIsolation for 1 minute per UL 1577CSA Component Acceptance Notice 5A, IEC 60950-1 and IEC 61010-1 End Equipment StandardsGB4943.1-2011 CQC Certified

Description

The ISO734x-Q1 family of devices provides galvanic isolation up to 3000 VRMSfor 1 minute per UL 1577 and 4242 VPKper VDE V 0884-10. These devices have four isolated channels comprised of logic input and output buffers separated by a silicon dioxide (SiO2) insulation barrier. The ISO7340-Q1 device has four channels in forward direction, the ISO7341-Q1 device has three forward and one reverse-direction channels, and the ISO7342-Q1 device has two forward and two reverse-direction channels. In case of input power or signal loss, the default output islowfor orderable part numbers with suffixFandhighfor orderable part numbers without suffixF. See theDevice Functional Modessection for further details. Used in conjunction with isolated power supplies, these devices help prevent noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. The ISO734x-Q1 device has integrated noise filter for harsh industrial environment where short noise pulses may be present at the device input pins. The ISO734x-Q1 device has TTL input thresholds and operates from 3-V to 5.5-V supply levels. Through innovative chip design and layout techniques, electromagnetic compatibility of the ISO734x-Q1 family of devices has been significantly enhanced to enable system-level ESD, EFT, surge, and emissions compliance. The ISO734x-Q1 family of devices provides galvanic isolation up to 3000 VRMSfor 1 minute per UL 1577 and 4242 VPKper VDE V 0884-10. These devices have four isolated channels comprised of logic input and output buffers separated by a silicon dioxide (SiO2) insulation barrier. The ISO7340-Q1 device has four channels in forward direction, the ISO7341-Q1 device has three forward and one reverse-direction channels, and the ISO7342-Q1 device has two forward and two reverse-direction channels. In case of input power or signal loss, the default output islowfor orderable part numbers with suffixFandhighfor orderable part numbers without suffixF. See theDevice Functional Modessection for further details. Used in conjunction with isolated power supplies, these devices help prevent noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. The ISO734x-Q1 device has integrated noise filter for harsh industrial environment where short noise pulses may be present at the device input pins. The ISO734x-Q1 device has TTL input thresholds and operates from 3-V to 5.5-V supply levels. Through innovative chip design and layout techniques, electromagnetic compatibility of the ISO734x-Q1 family of devices has been significantly enhanced to enable system-level ESD, EFT, surge, and emissions compliance.
