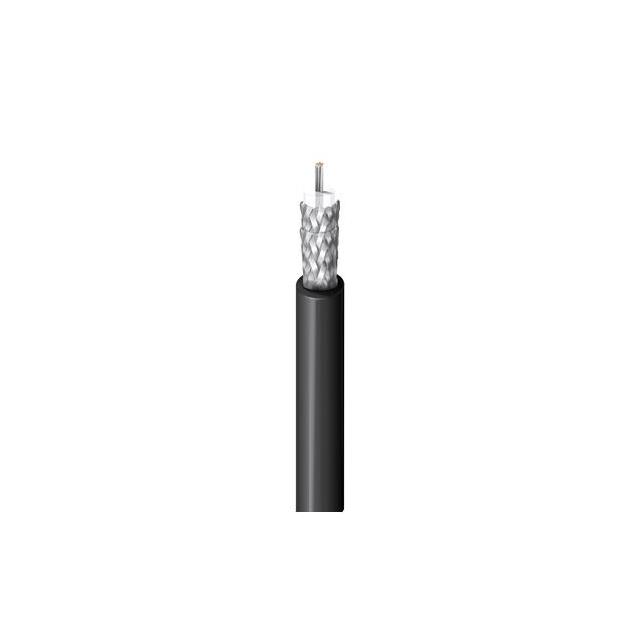

8268 Series
Manufacturer: Belden Inc.
Beta
⌘K
#13 PE DBLB PVC
| Part | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | VoP, Velocity of Propagation | Shield Coverage | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Shield Material | Jacket (Insulation) Material | Cable Type | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Group | Jacket Color | Usage | Length [x] | Length [x] | Shield Type | Impedance | Conductor Strand |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 0.285 in | 7.24 mm | 66 | 95 % | Copper Silver Coated | 80 °C | -40 C | Copper Silver Coated | Poly-Vinyl Chloride (PVC) | Coaxial | 13 AWG | 10.8 mm | 0.425 in | RG-214 | Black | RF Signal | 152.4 m | 500 ft | Double Braid | 50 Ohms | 7 Strands 21 AWG |
